Rocker Arms

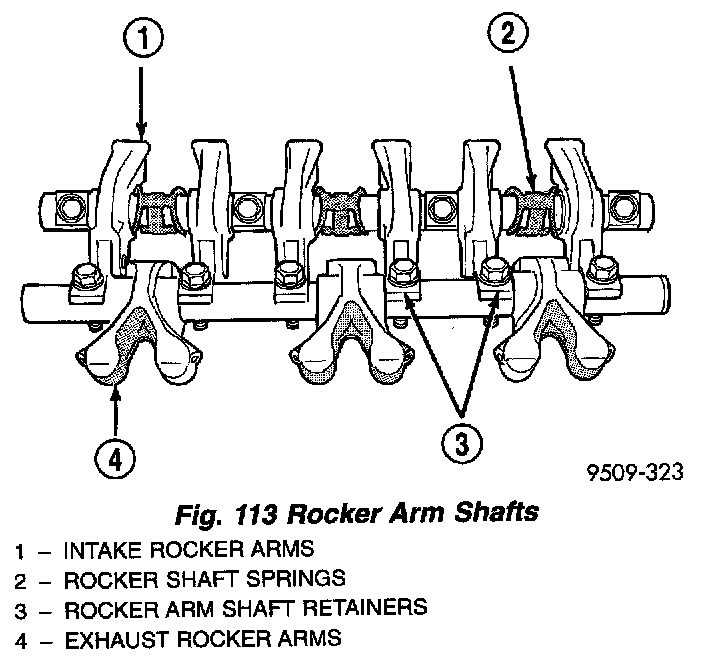

Fig. 113

1. Identify the rocker arms and retainers for reassembly. Disassemble the rocker arm assemblies by removing the attaching bolts and spring clips from the shaft (Fig. 113).
2. Slide the rocker arms off the shaft. Keep the spacers and rocker arms in the same location for reassembly.

INSPECTION

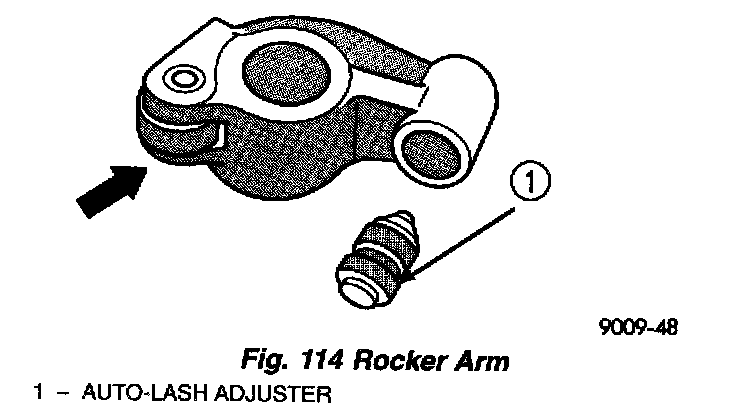

Fig. 114

Inspect the rocker arm for scoring, wear of the roller or damage to the rocker arm (Fig. 114). Replace as necessary.

ROCKER ARM SHAFTS
The rocker arm shafts is hollow and is used as a lubrication oil duct.
1. Check the rocker arm mounting portion of the shafts for wear or damage. Replace if damaged or worn.
2. Check oil holes for clogging with small wire, clean as required.

REASSEMBLY
Lubricate the rocker arms. Install onto shafts in their original position (Fig. 113).
