Pistons-Fitting

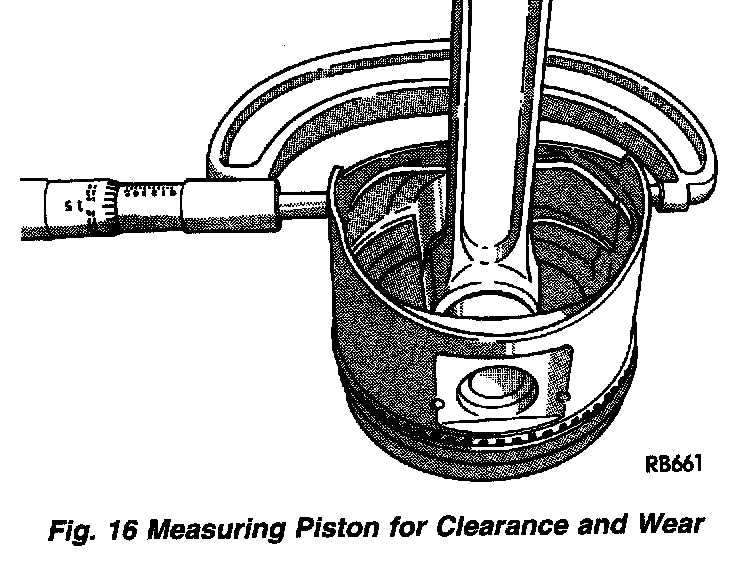

Fig. 16
Measure approximately 2 mm (0.080 inch) above the bottom of the piston skirt and across the thrust face (Fig. 16). Refer to Engine; Service and Repair; Cylinder Boring.
Fig. 16
Measure approximately 2 mm (0.080 inch) above the bottom of the piston skirt and across the thrust face (Fig. 16). Refer to Engine; Service and Repair; Cylinder Boring.
