Oil Pump

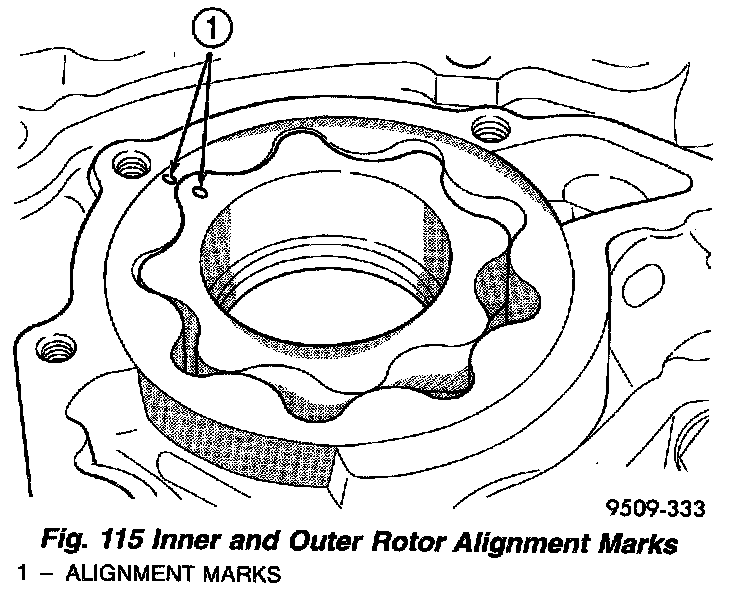

Fig. 115

1. Assemble pump, using new parts as required with clean oil. Align marks on the inner and outer rotors when assembling (Fig. 115).
2. Install cover and tighten screws to 10 Nm (85 in. lbs.).

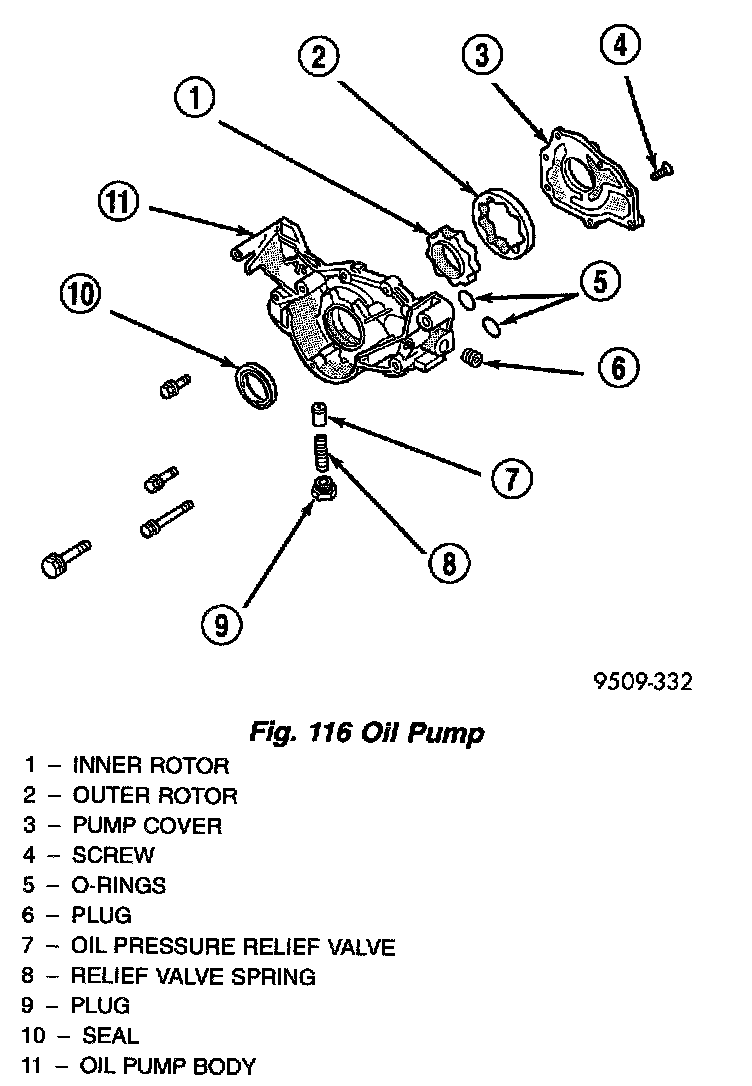

Fig. 116

3. Install relief valve, spring, gasket and cap as shown in (Fig. 116). Tighten cap to 44 Nm (33 ft. lbs.)
