Crankshaft End Play

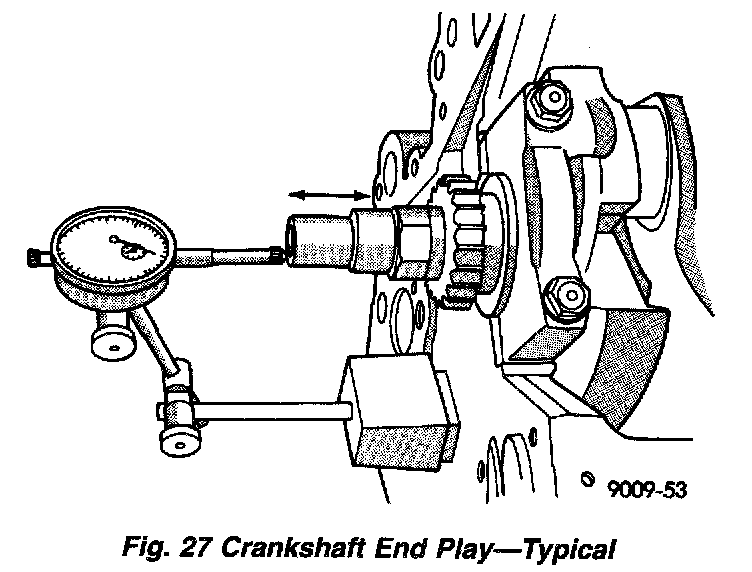

Fig. 27

1. Mount a dial indicator to front of engine, locating probe on nose of crankshaft (Fig. 27).
2. Move crankshaft all the way to the rear of its travel.
3. Zero the dial indicator.
4. Move crankshaft all the way to the front and read the dial indicator. Refer to Engine Specifications.
