Front and Rear Mounts
REMOVALFRONT MOUNT
1. Raise vehicle on hoist.

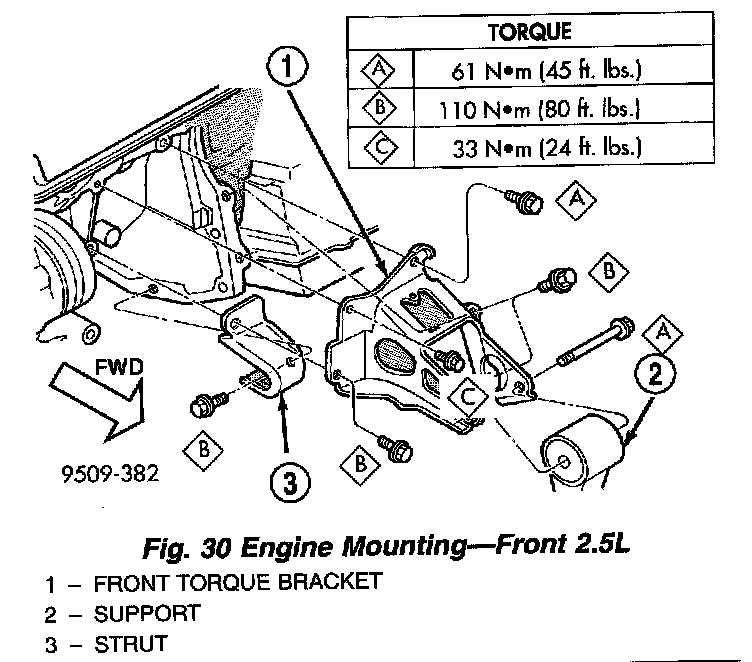

Fig. 30
2. Remove through bolt (A) at front mount (Fig. 30).
3. Remove attaching bolts from mount to lower radiator support crossmember.
NOTE: It may be necessary to tilt engine for front mount removal clearance.
4. Remove front mount.
REAR MOUNT
1. Raise vehicle on hoist.

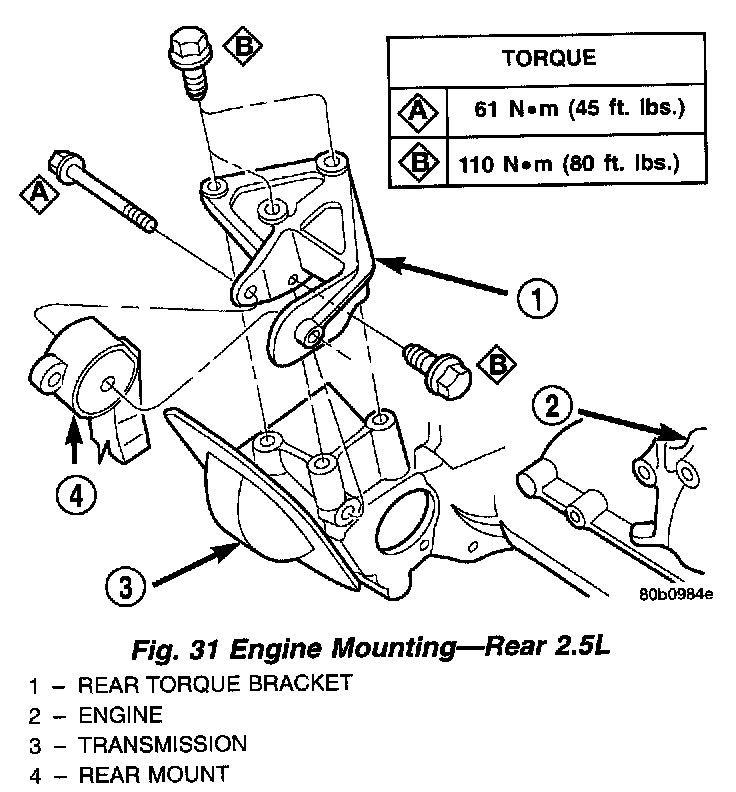

Fig. 31
2. Remove through bolt (A) from rear engine mount and bracket (Fig. 31).

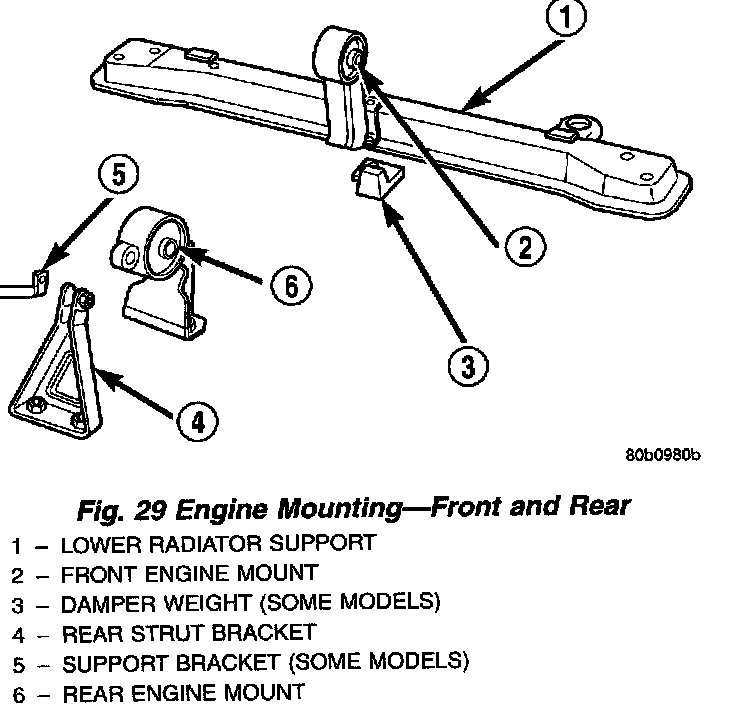

Fig. 29
3. Remove rear strut bracket (Fig. 29).
4. Remove bolts attaching rear mount to crossmember.
NOTE: It may be necessary to tilt engine for rear mount removal clearance.
5. Remove rear mount.
INSTALLATION
FRONT MOUNT
1. Position front mount. Install front mount to lower radiator support crossmember attaching bolts. Tighten bolts to 61 Nm (45 ft. lbs.)
2. Install through bolt (A) (Fig. 30).
3. Tighten front through bolt (A) to 61 Nm (45 ft. lbs.) (Fig. 30).
4. Lower vehicle.
REAR MOUNT
1. Position rear mount.
2. Install bolts attaching rear mount to suspension crossmember. Tighten bolts to 61 Nm (45 ft. lbs.).
3. Install rear strut bracket (Fig. 29). Tighten bolts to 61 Nm (45 ft. lbs.).
4. Install through bolt (A) and tighten 61 Nm (45 ft. lbs.) (Fig. 31).
5. Lower vehicle
