Rocker Arms and Shafts

DESCRIPTION

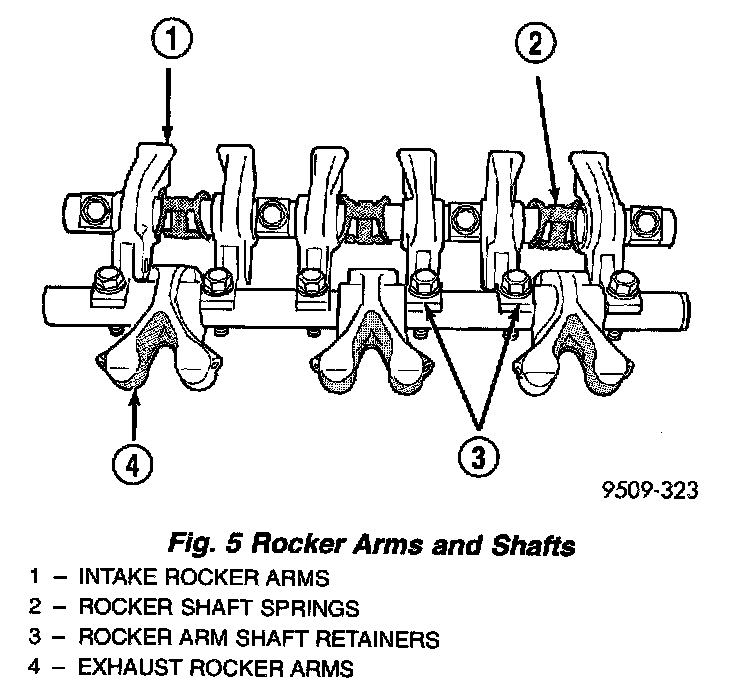

Fig. 5

The rocker arms are made of light weight die-cast with roller type follower operating against the camshaft (Fig. 5). The valve actuating end of the rocker arms are machined for hydraulic lash adjusters, eliminating the need for periodic valve lash adjustment.
The rocker arm shafts are retained by retaining caps and bolts. Four shafts are used, one for each intake and exhaust rocker arm assembly on each cylinder head. The hollow shafts provide a duct for lubricating oil flow from the cylinder head to the valve mechanisms. Rocker shaft springs are use on the intake shafts ONLY to obtain the proper clearance between the intake rocker arms and the spark plug tubes.
