Description

DESCRIPTION

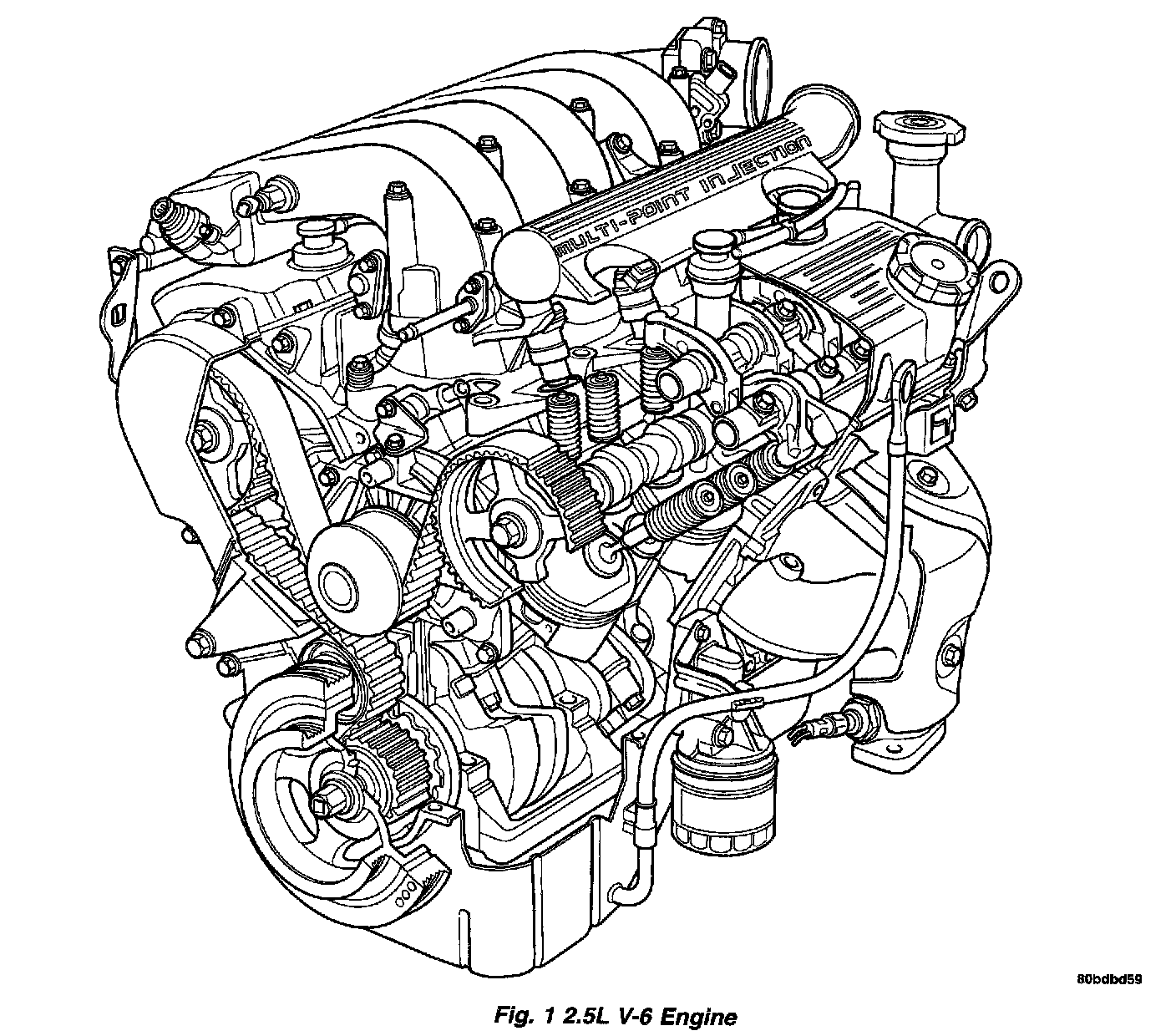

Fig. 1

The 2.5 Liter (152 cu. inch) 60° V-6 engine is a single overhead camshaft (per bank) with four valves per cylinder design (Fig. 1). The engine does not have provisions for a free wheeling valve train.
The firing order is 1-2-3-4-5-6. The cylinders are numbered from the front of the engine to the rear.
The front cylinder bank is numbered 2, 4, and 6. The rear cylinder bank is numbered 1, 3, and 5.

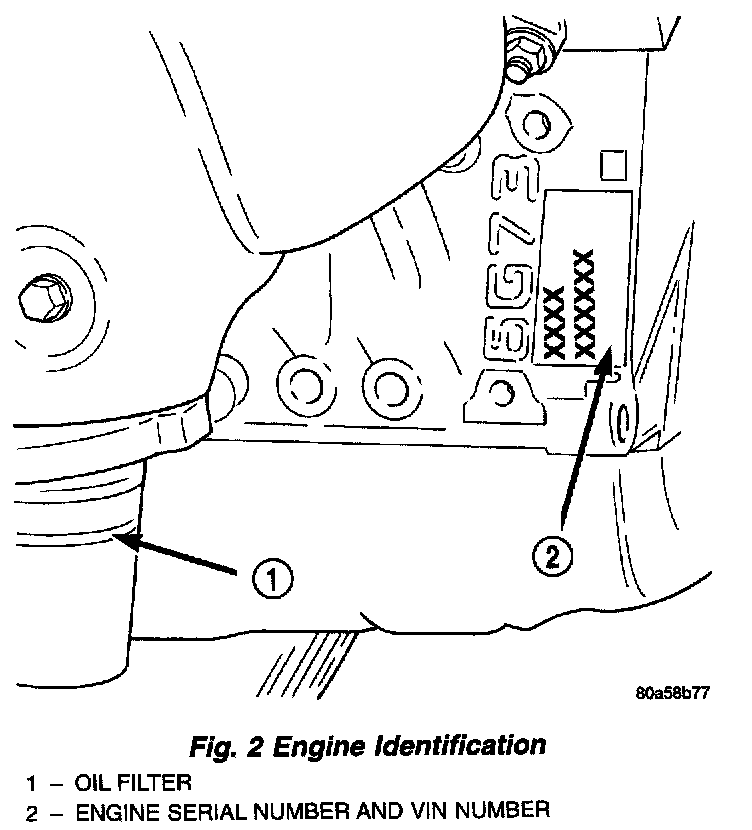

Fig. 2

The engine identification number is located on the rear of the cylinder block just below the cylinder head (Fig. 2).
