Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL

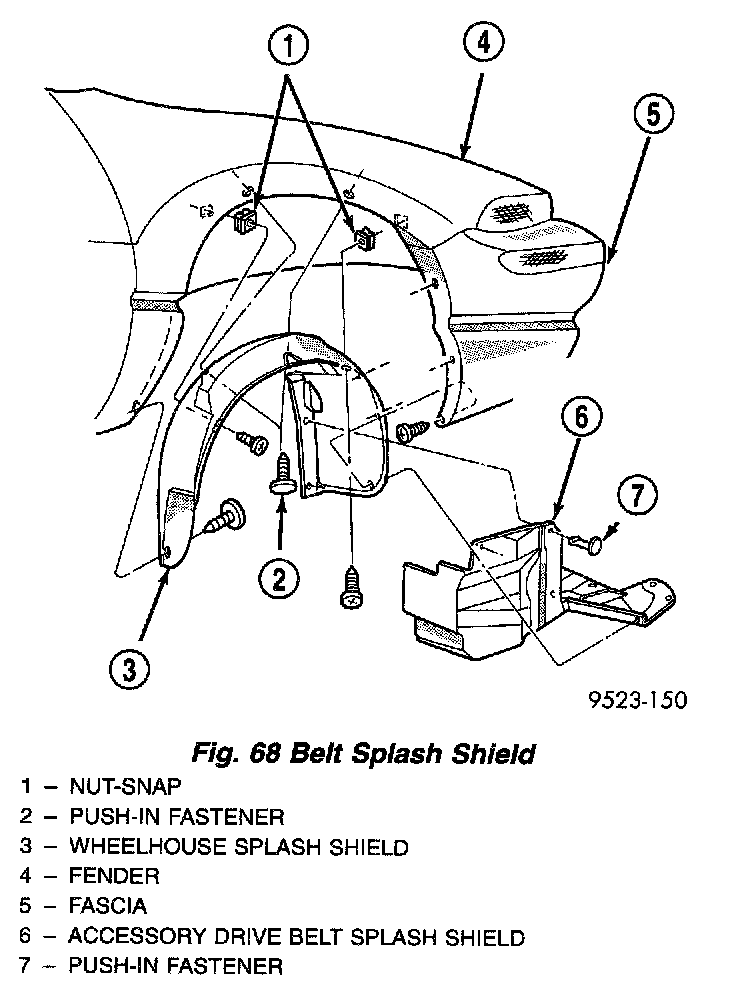

Fig. 68

1. Remove belt splash shield (Fig. 68).
2. Remove accessory drive belts.

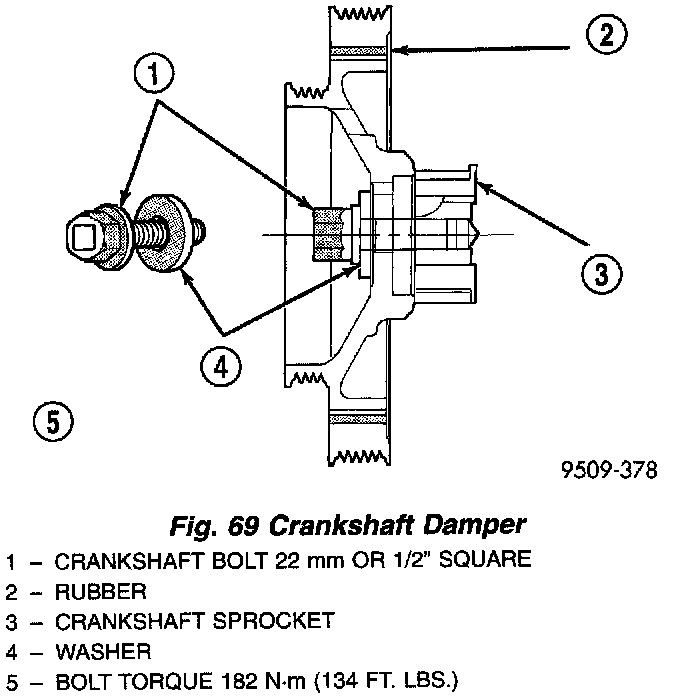

Fig. 69

3. Remove crankshaft center bolt (Fig. 69) and remove crankshaft damper.

INSTALLATION
1. Install crankshaft damper.
2. Install crankshaft bolt and tighten to 182 Nm (134 ft. lbs.) (Fig. 69).
3. Install accessory drive belts.
4. Install belt shield (Fig. 68).
