Accessory Drive Belt Diagnosis
Accessory Drive Belt Diagnosis
Satisfactory performance of the belt driven accessories depends on belt condition and proper belt tension.

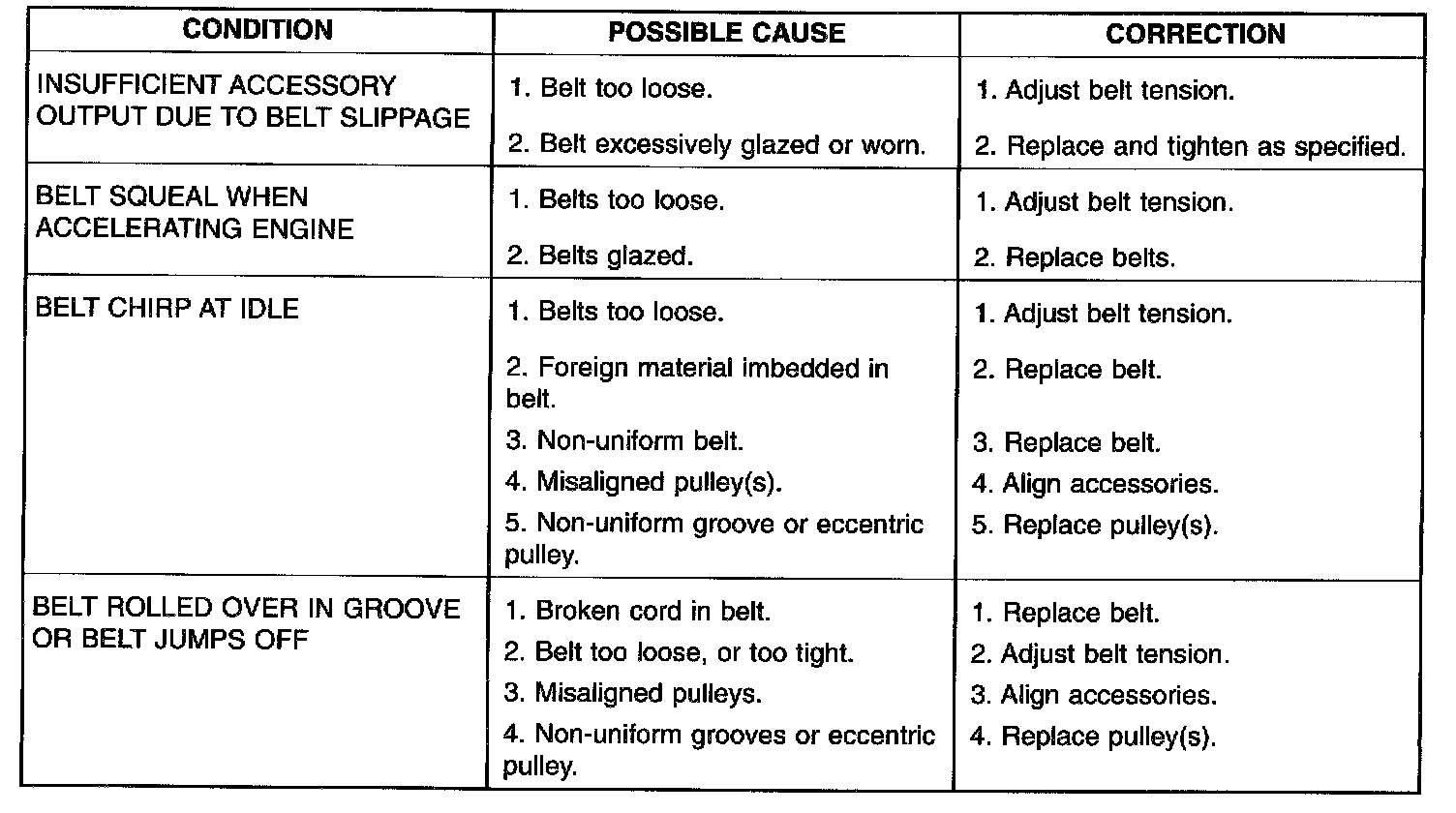

ACCESSORY DRIVE BELT DIAGNOSIS
