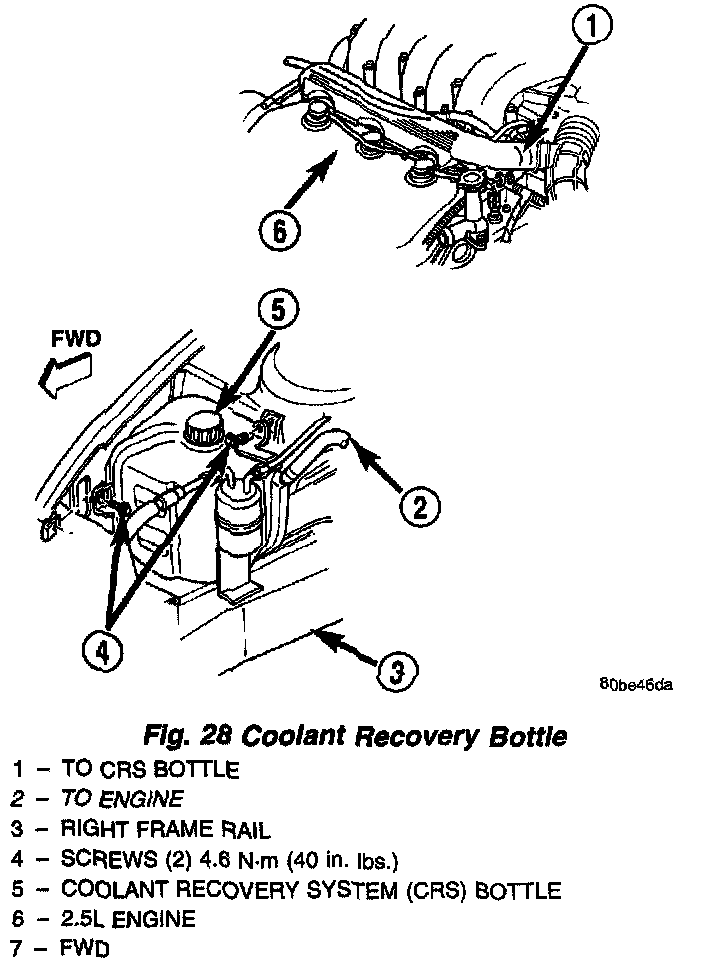

Coolant Reservoir: Service and Repair

REMOVAL
1. Disconnect coolant hose from bottle.






2. Remove bottle attaching screws .
3. Remove bottle.

INSTALLATION
1. Position bottle and install attaching screws. Tighten screws to 4.6 Nm (40 inch lbs.).
2. Connect coolant hose to bottle.
