Radio/Stereo

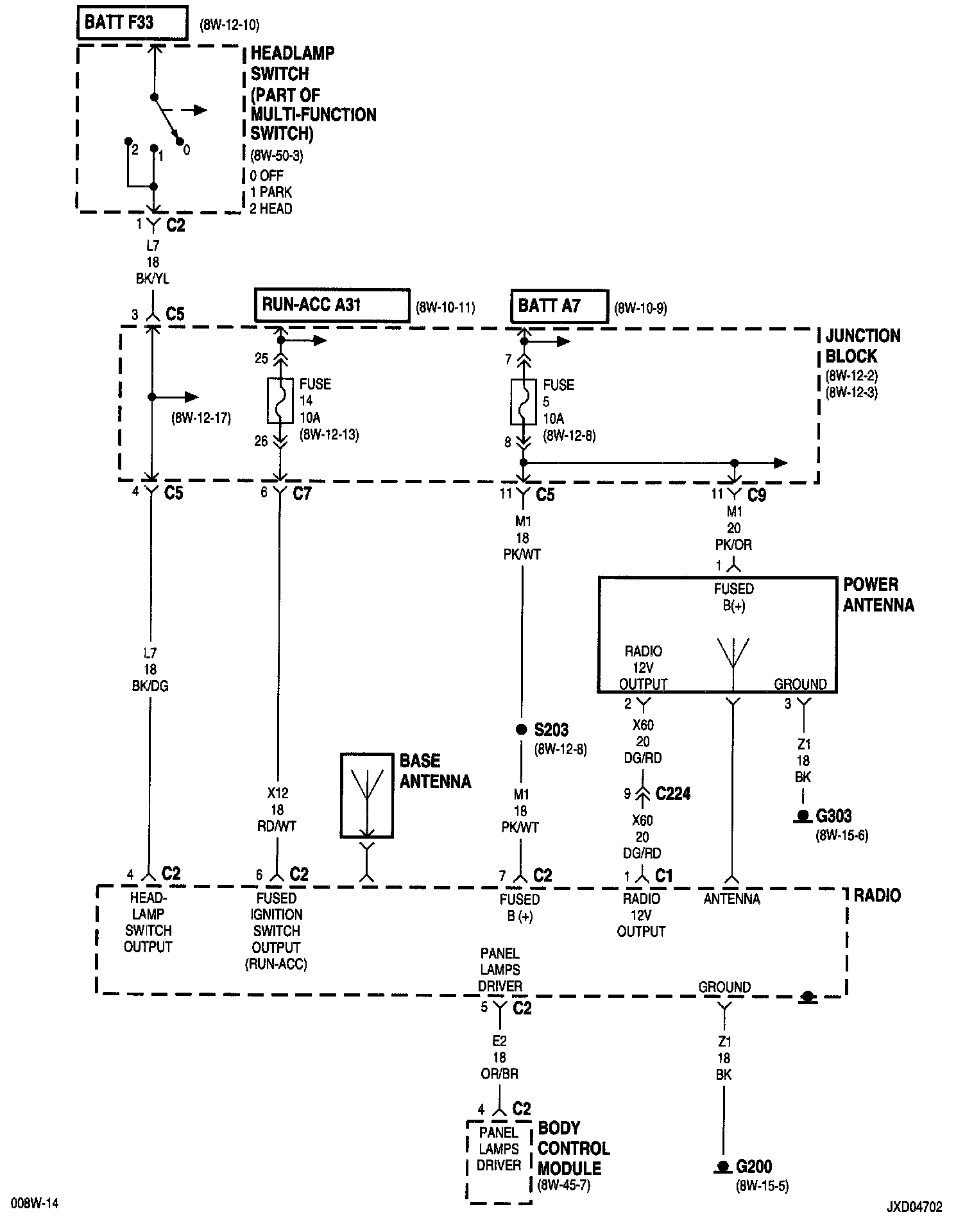

8w-47-2 (Standard):

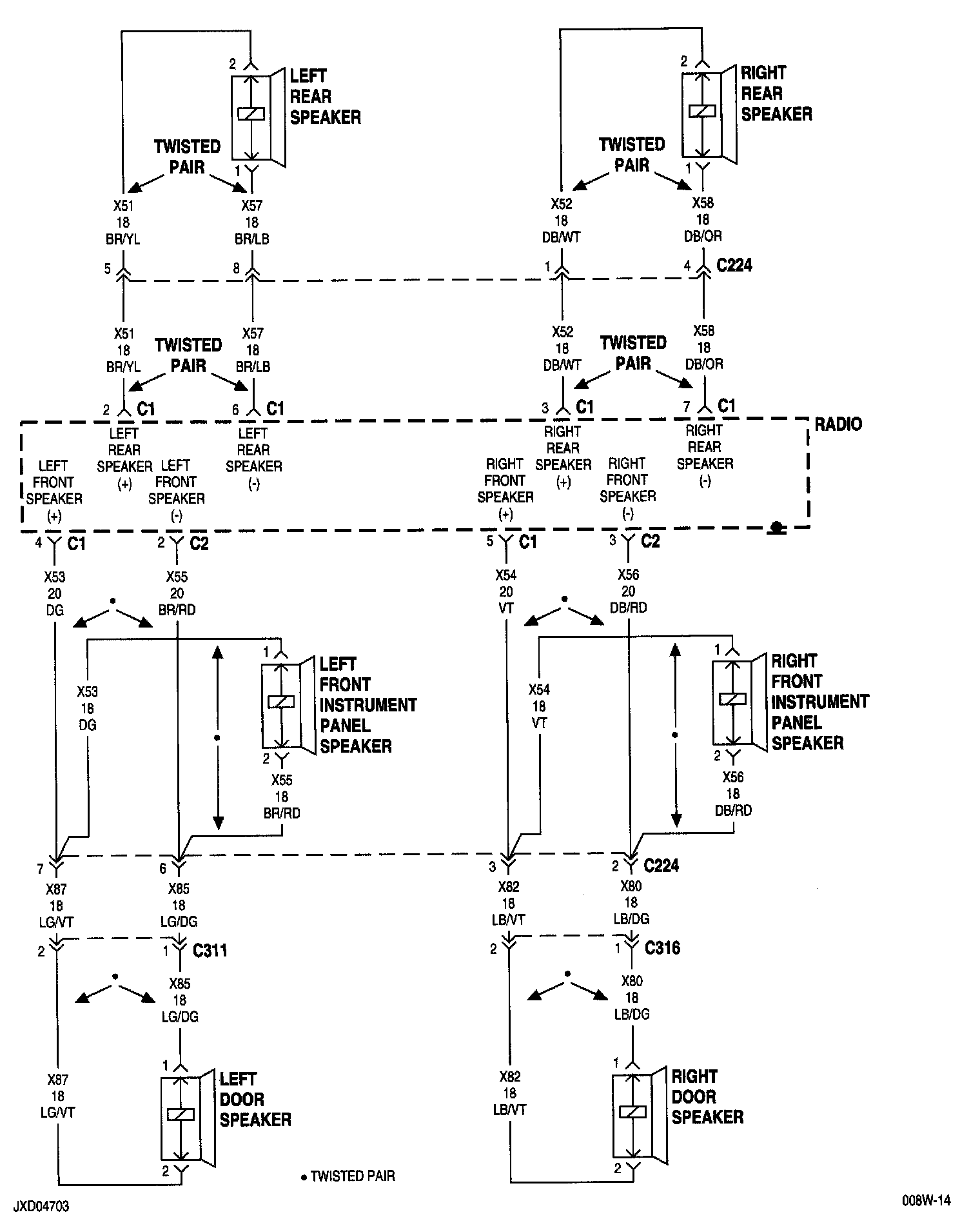

8w-47-3 (Standard):

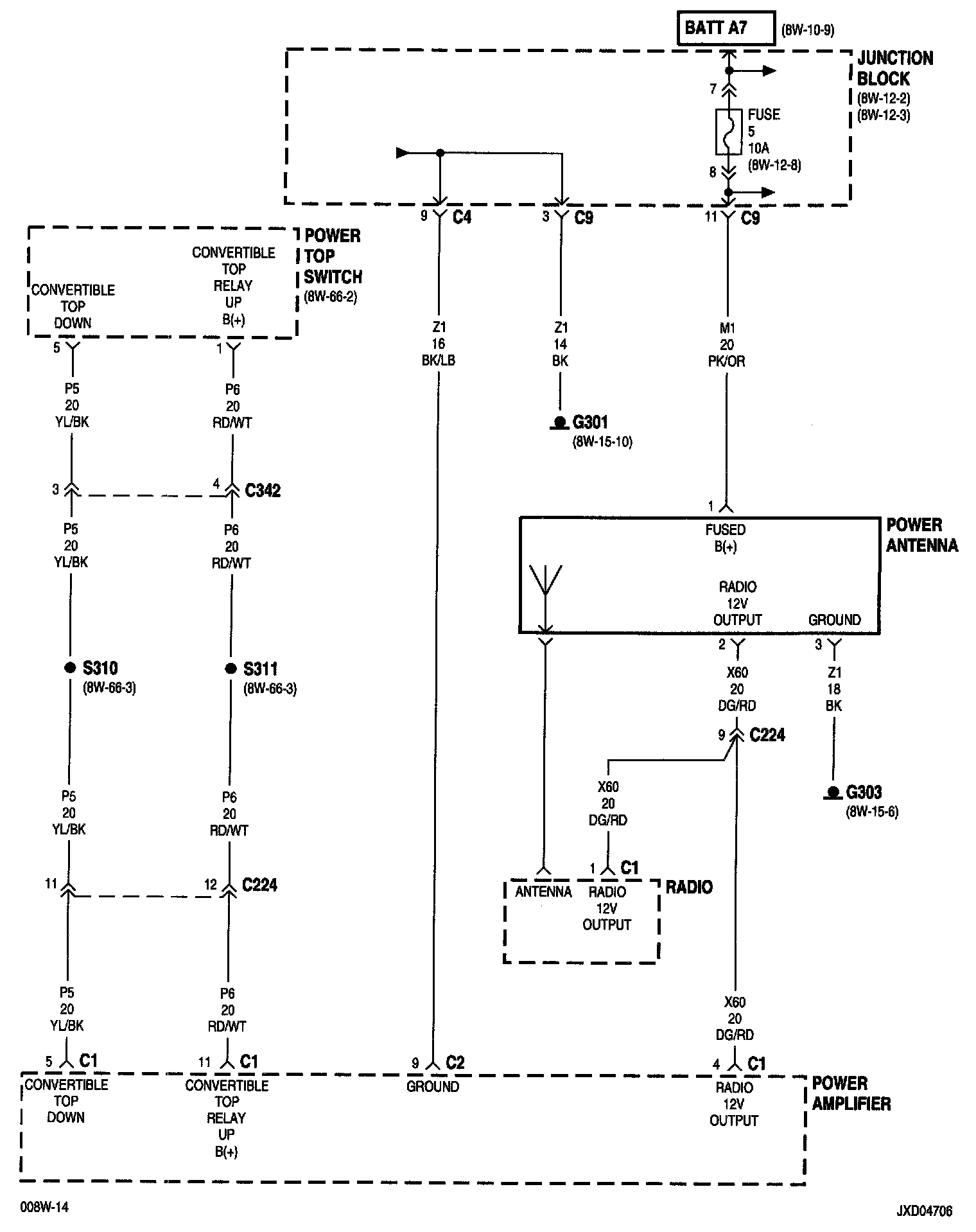

8w-47-4 (Premium):

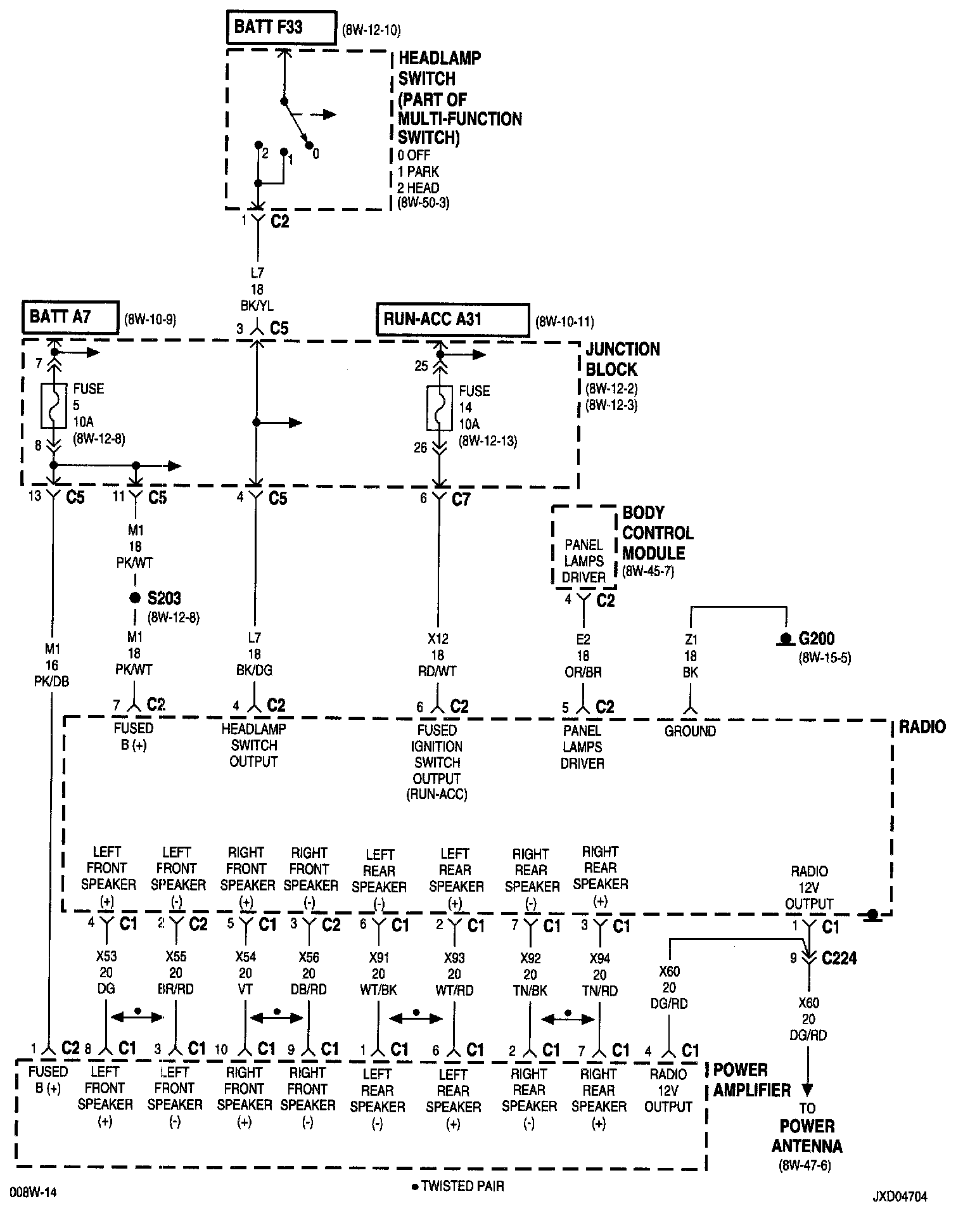

8w-47-5 (Premium):
8w-47-6 (Premium):
NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
