Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Rear Lighting

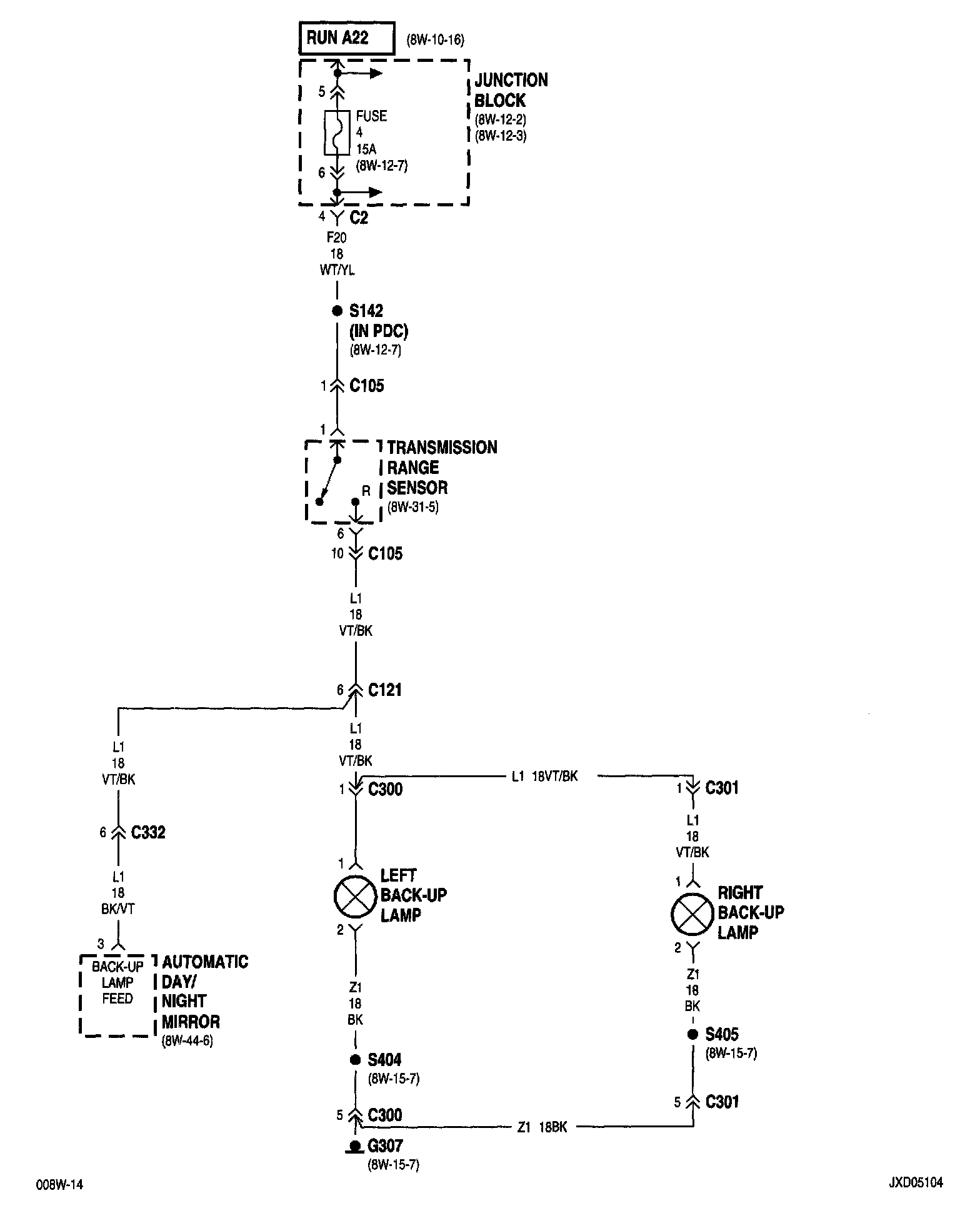

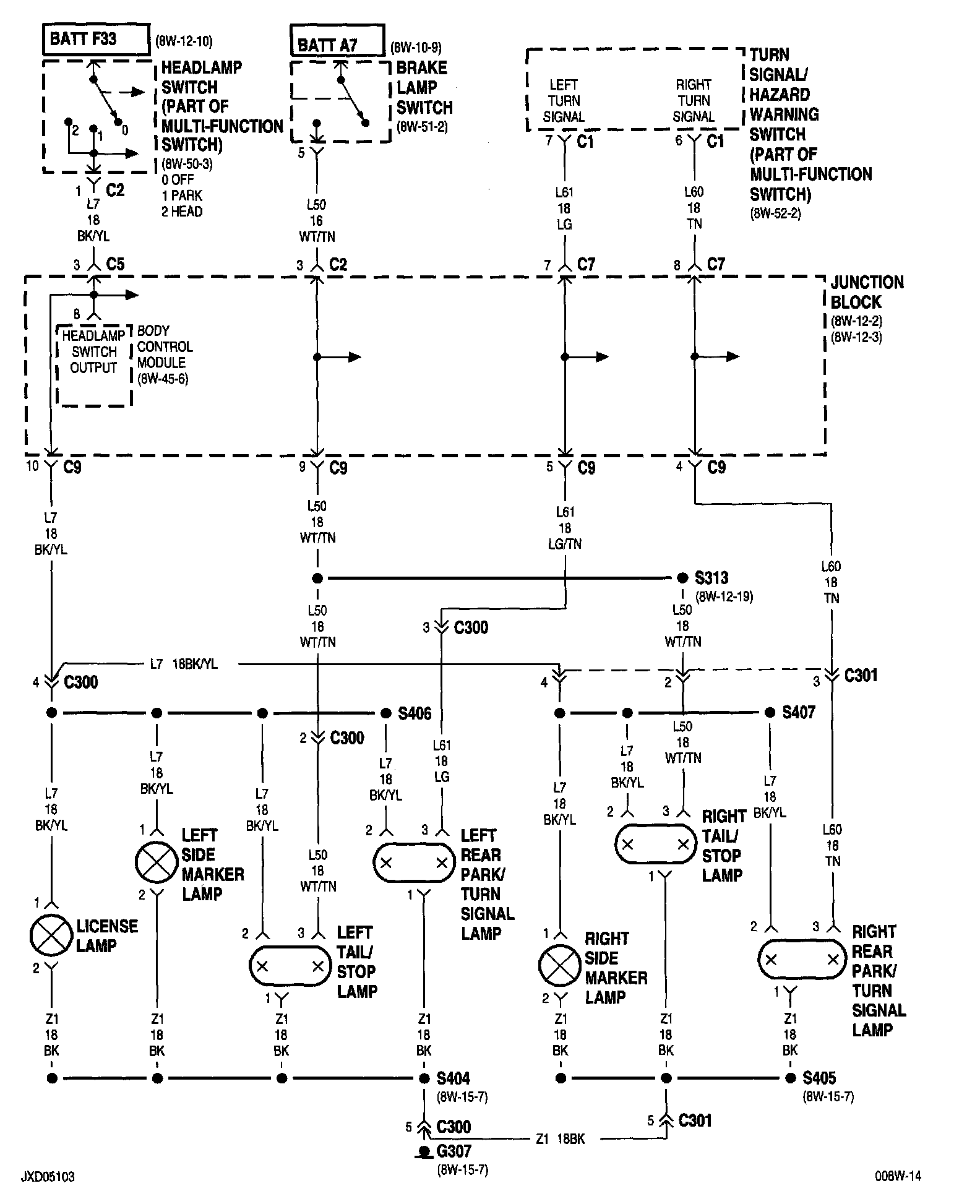

Rear Lighting

8w-51-2:




8w-51-3:




8w-51-4:






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
