Interior Lighting

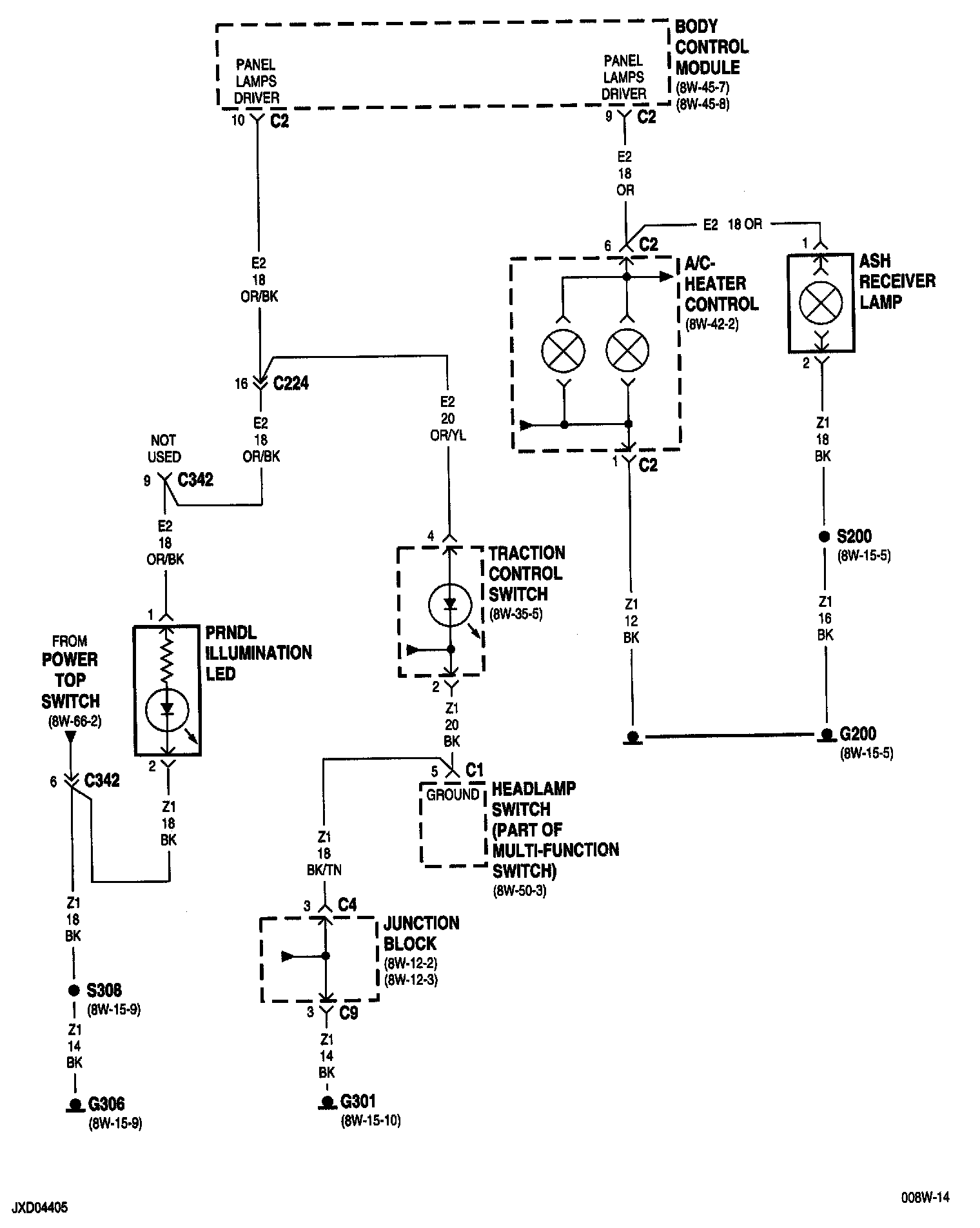

8w-44-2:

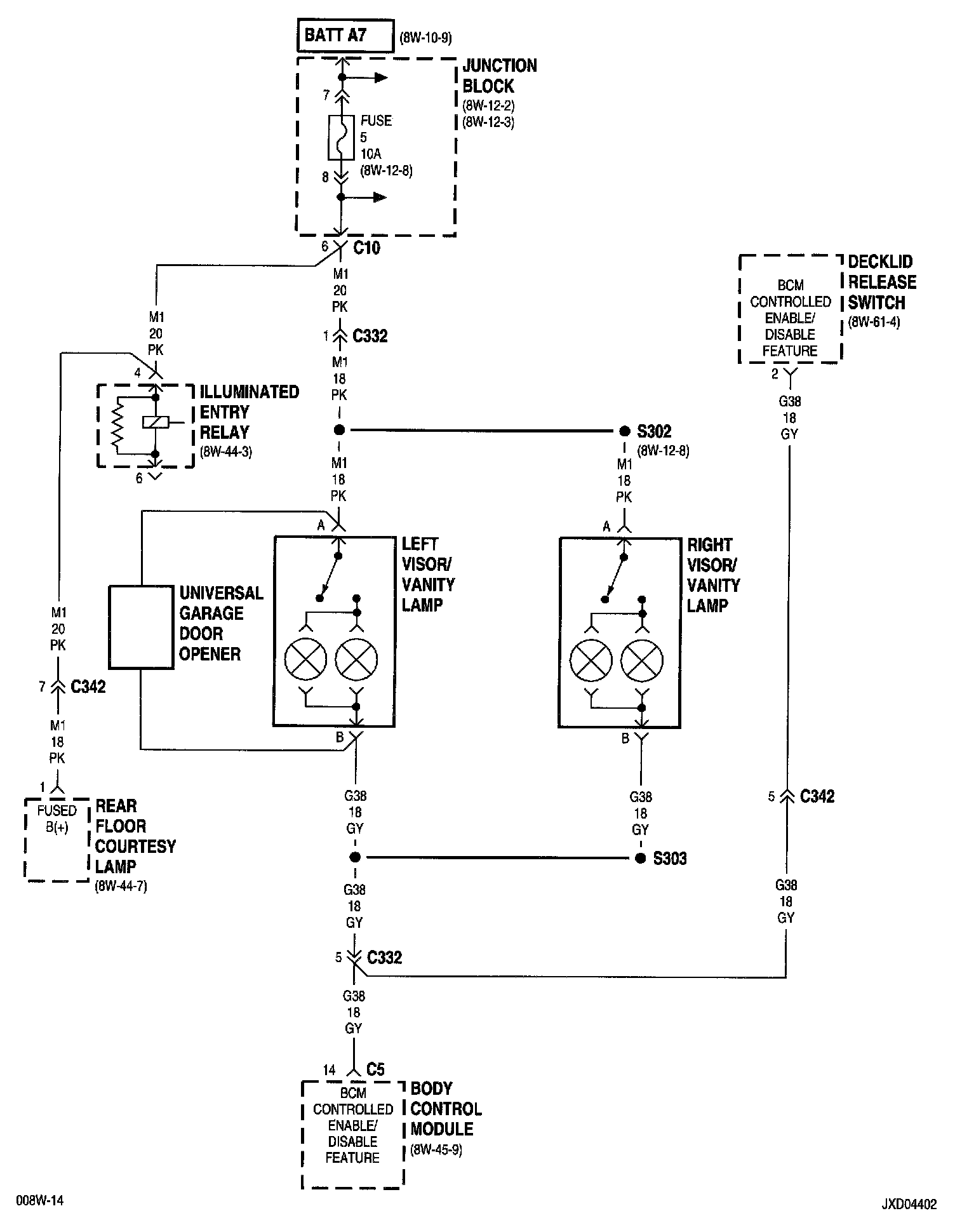

8w-44-3:

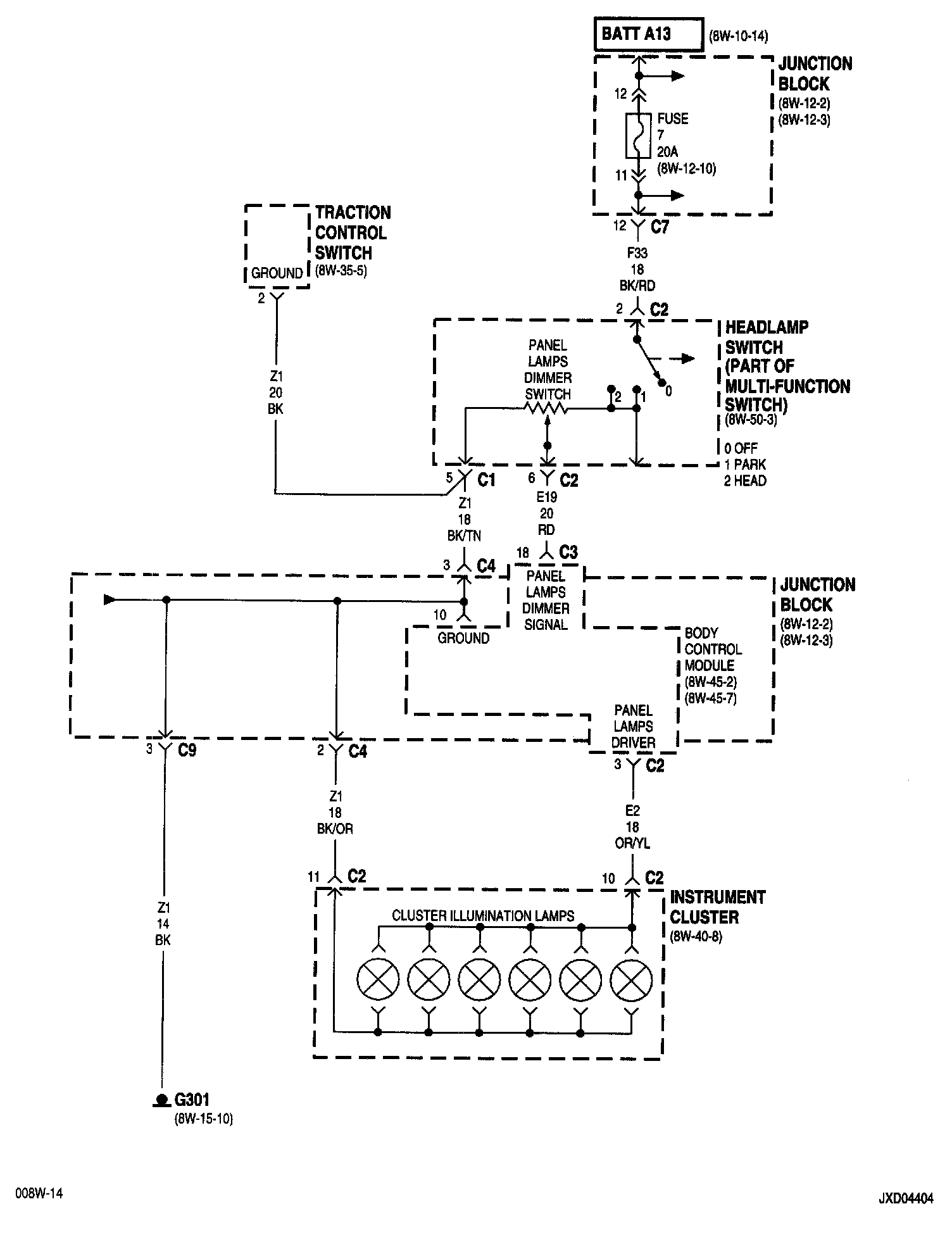

8w-44-4:

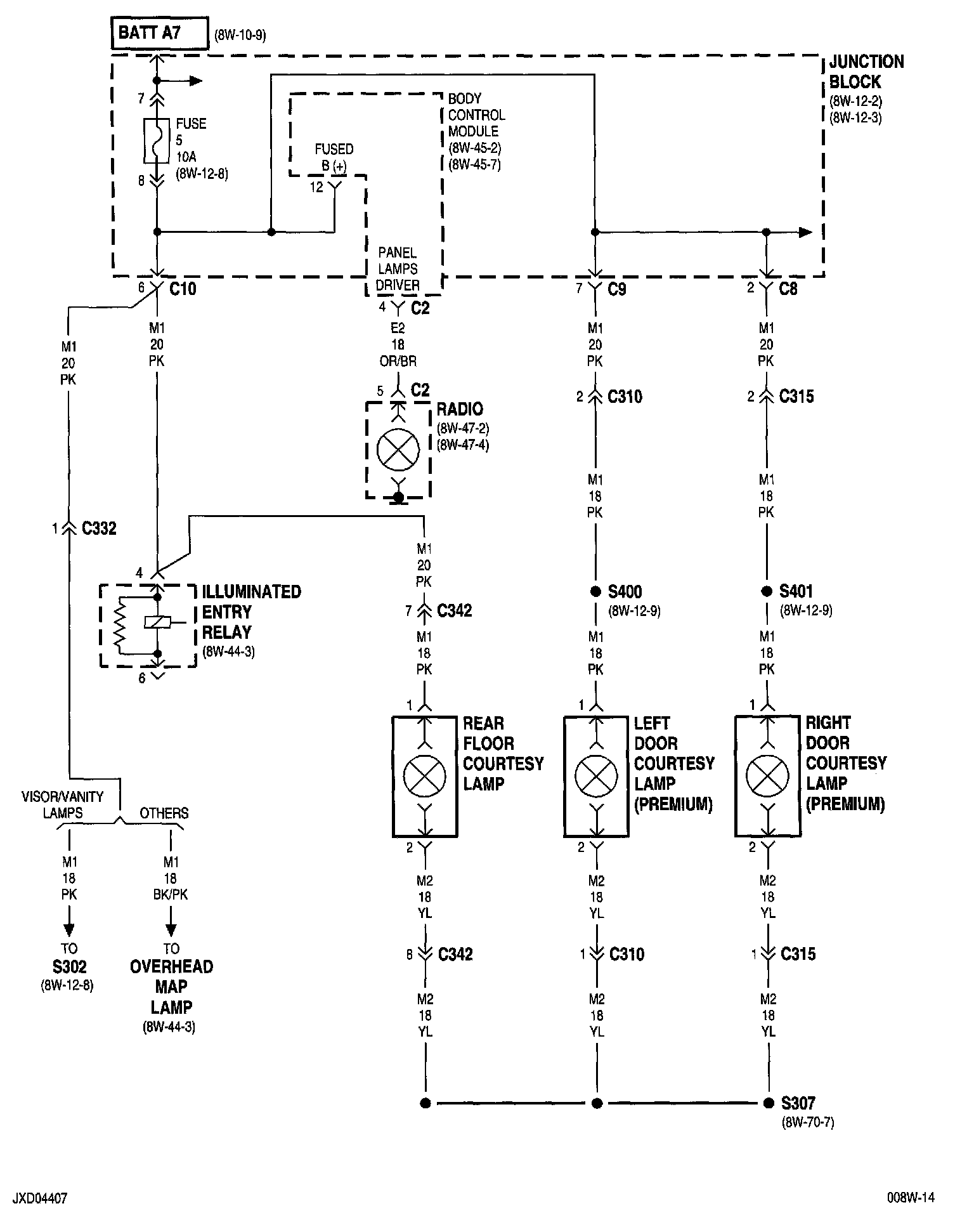

8w-44-5:

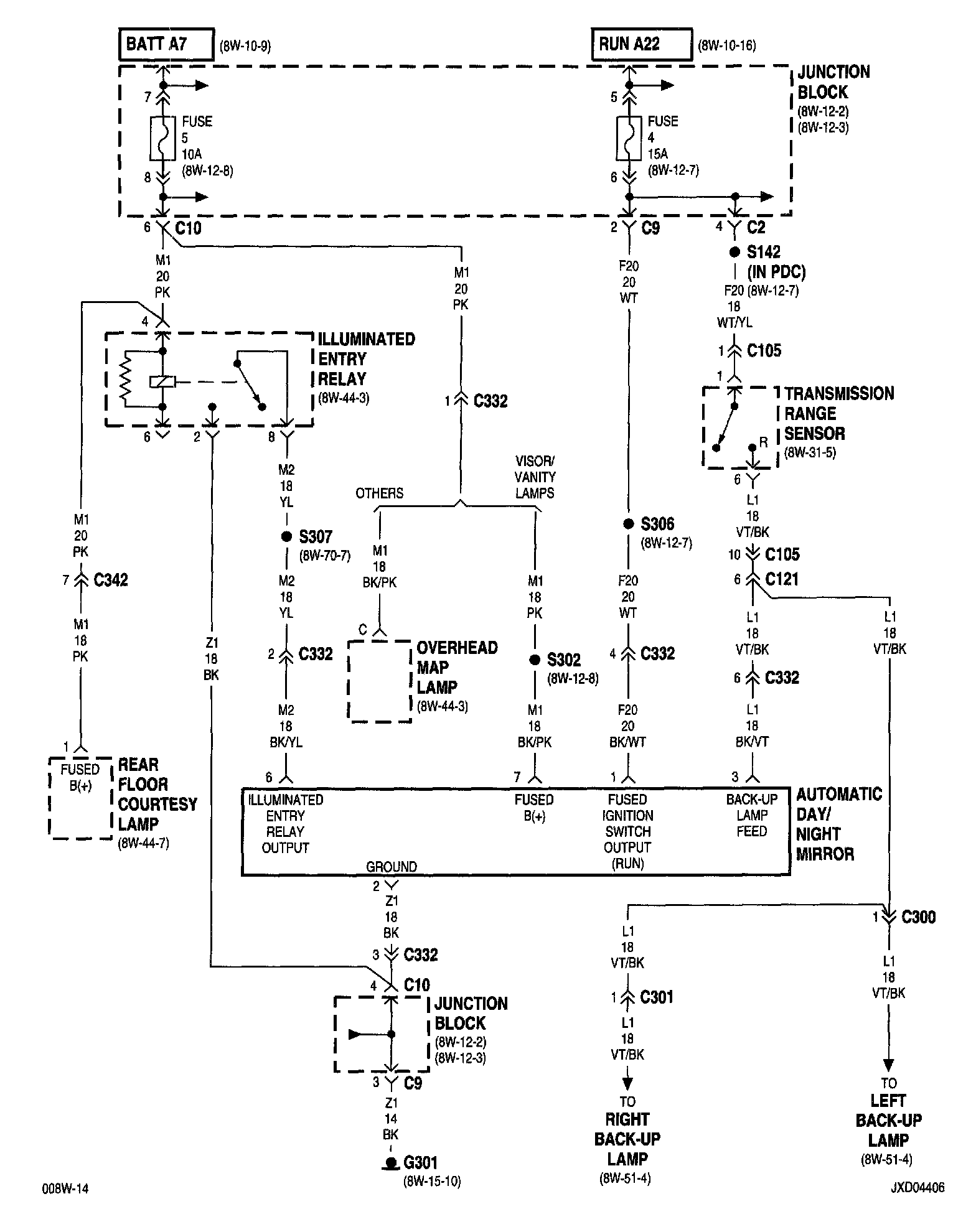

8w-44-6:

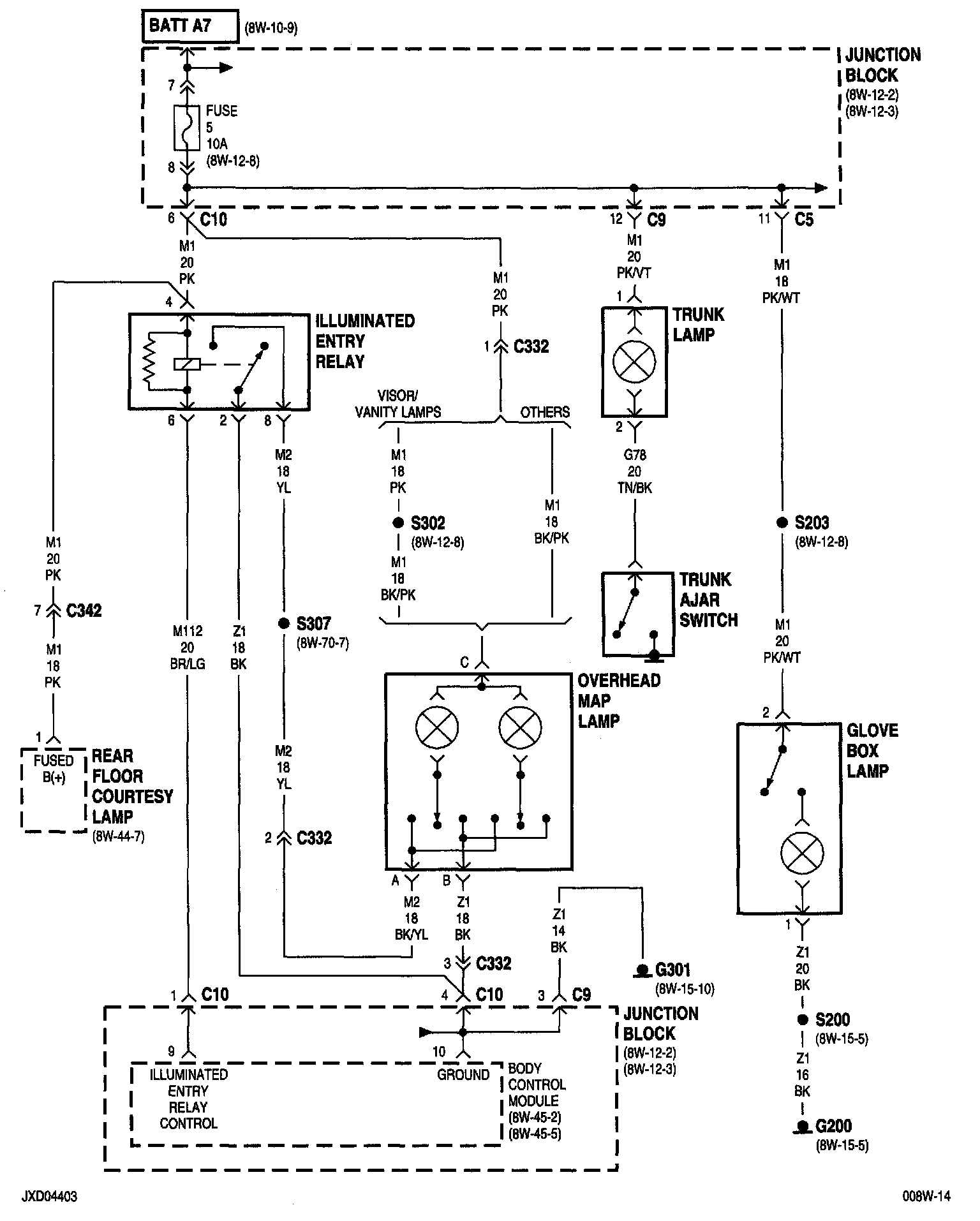

8w-44-7:






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
