Compass

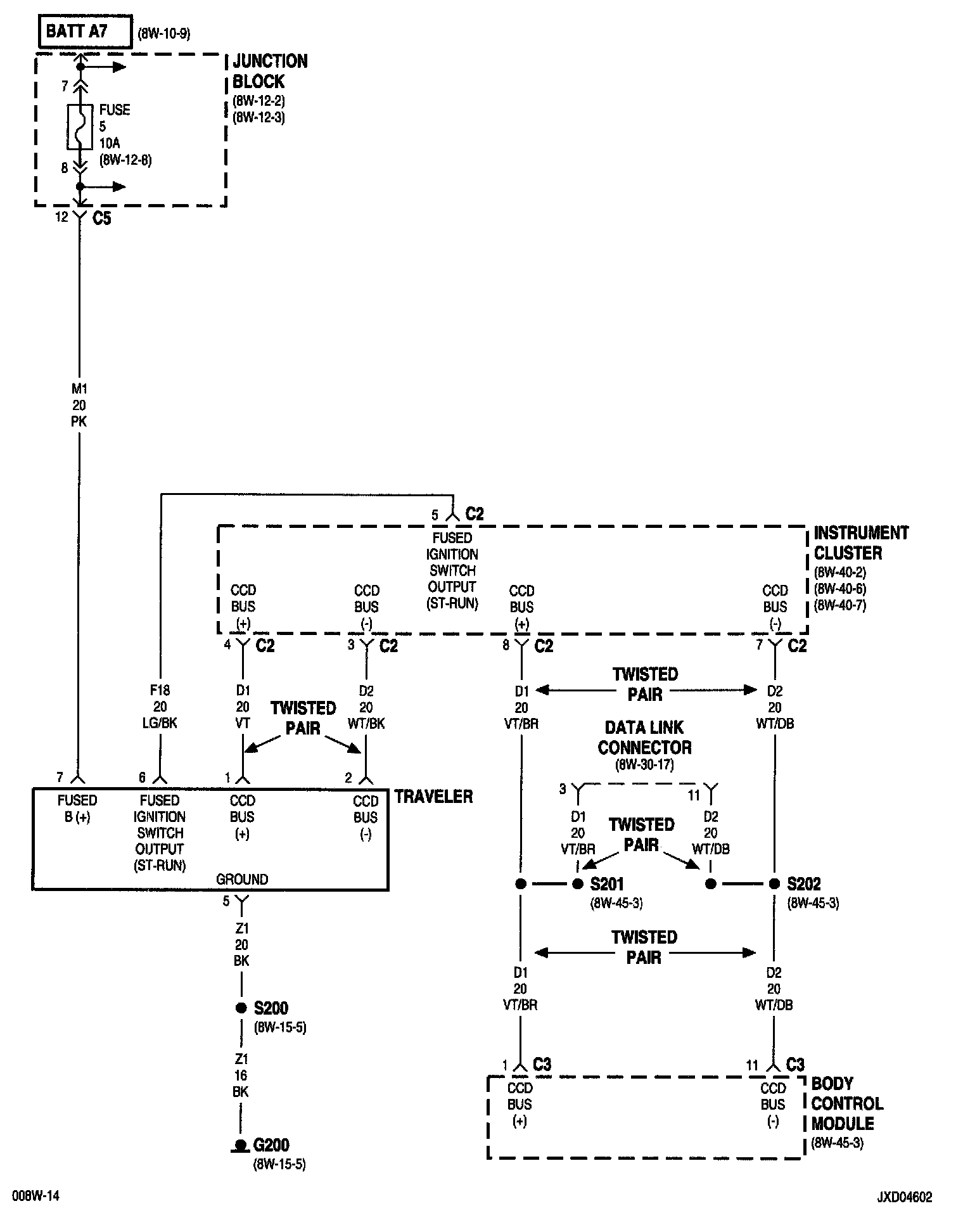

8w-46-2:

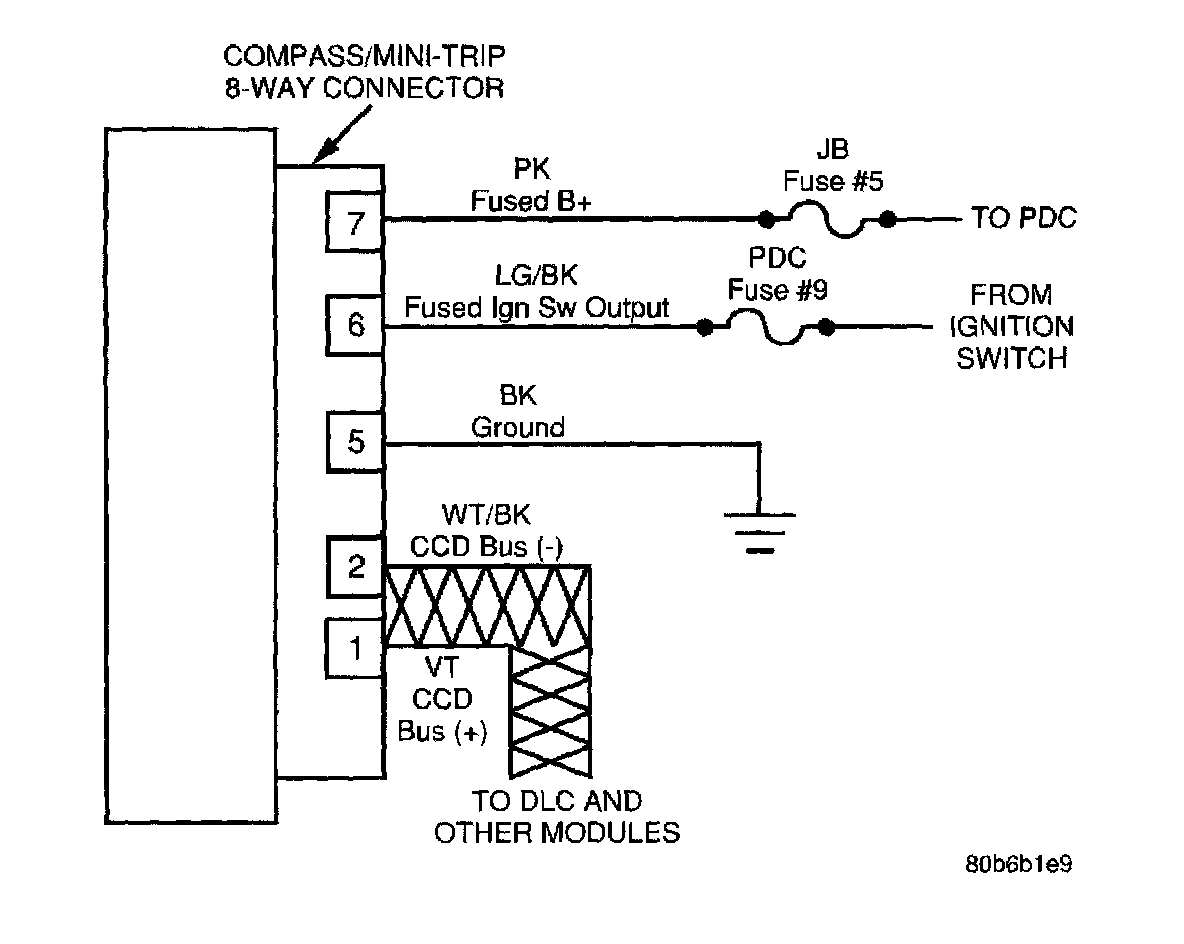

Compass/Mini - Trip:





NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
