Antitheft and Alarm Systems
8w-39-2:
8w-39-3:
8w-39-4:

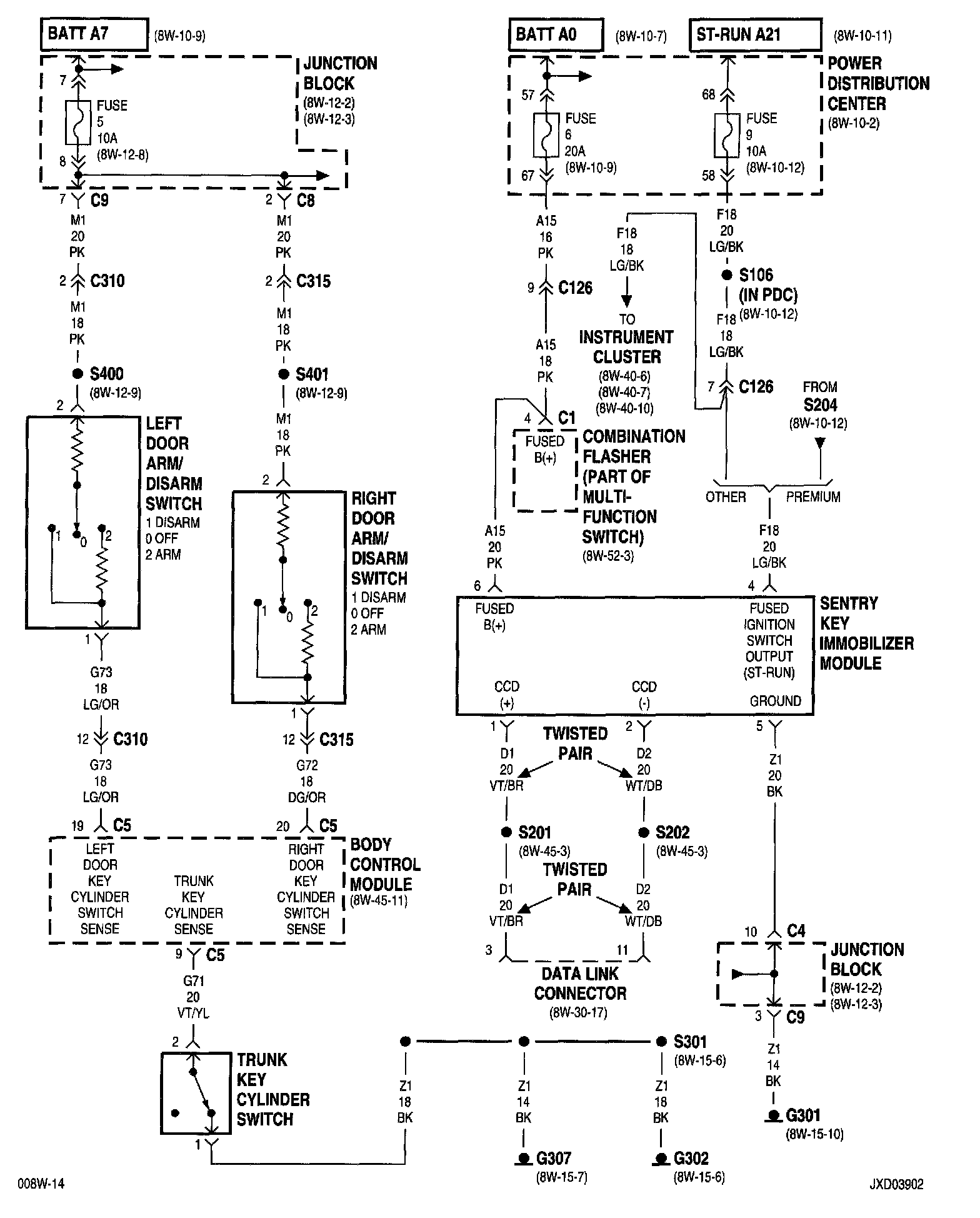

Sentry Key Immobilizer:

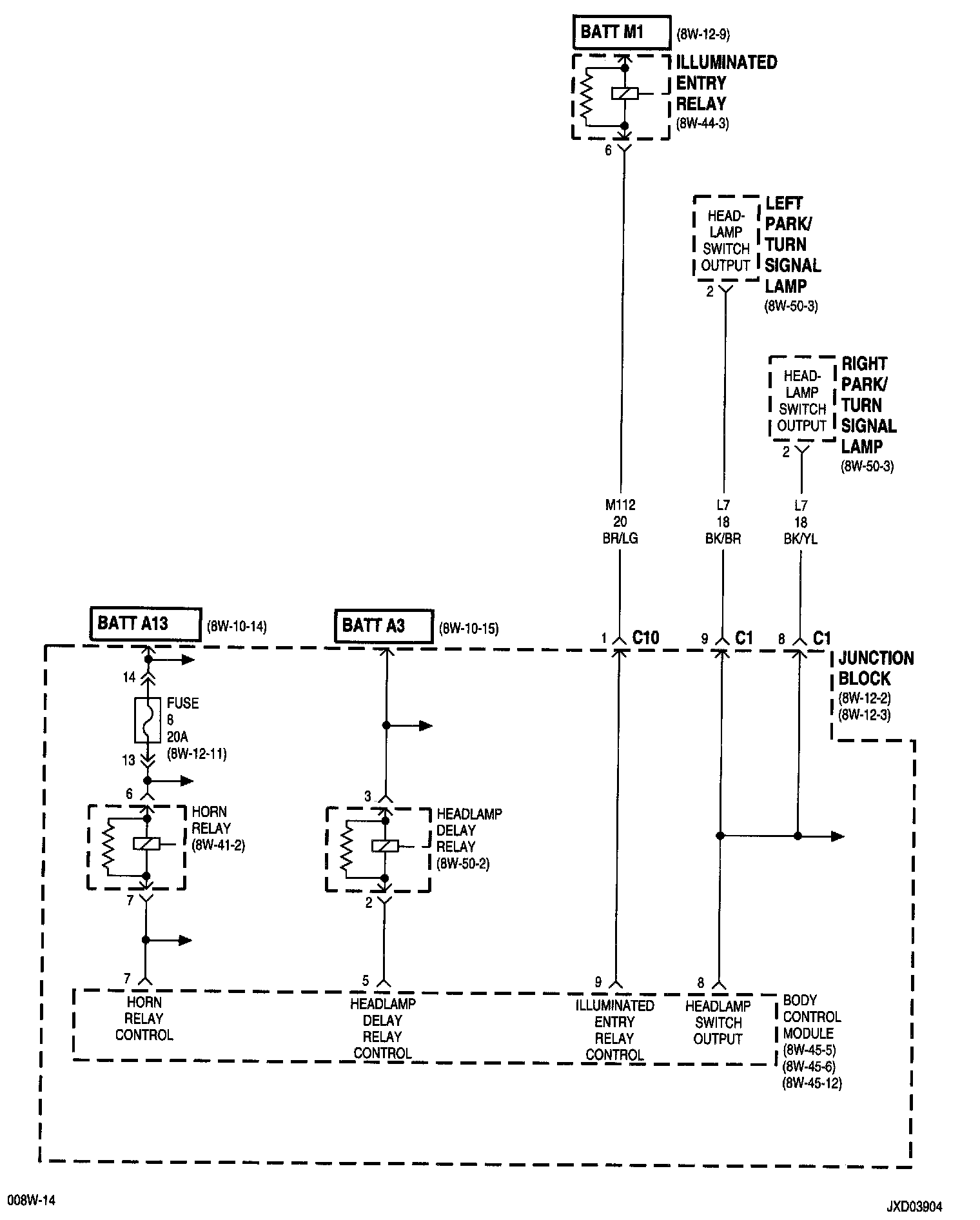

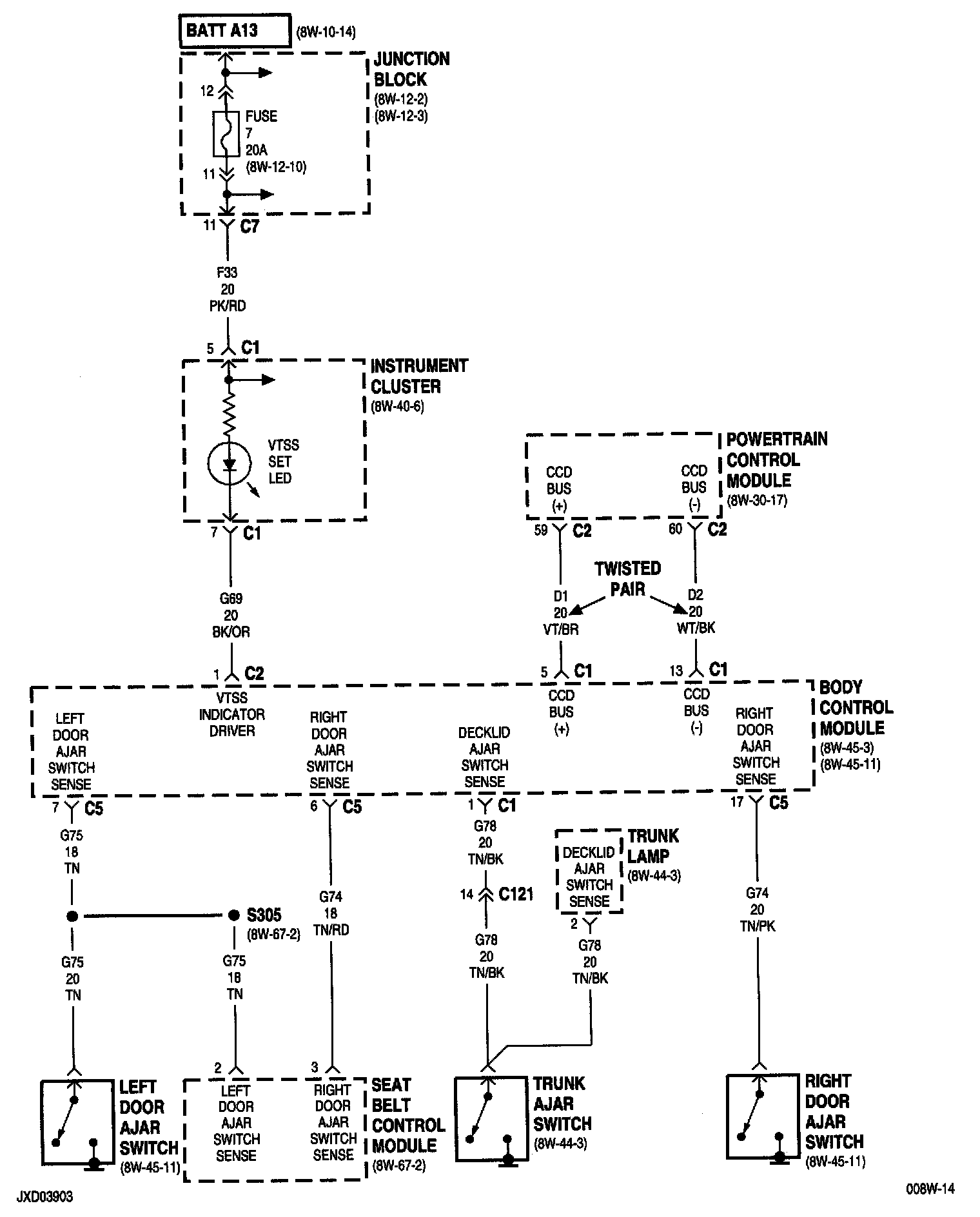

Vehicle Theft Security System:
NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
Electrical Diagrams
