Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> Schematic Diagrams

Schematic Diagrams

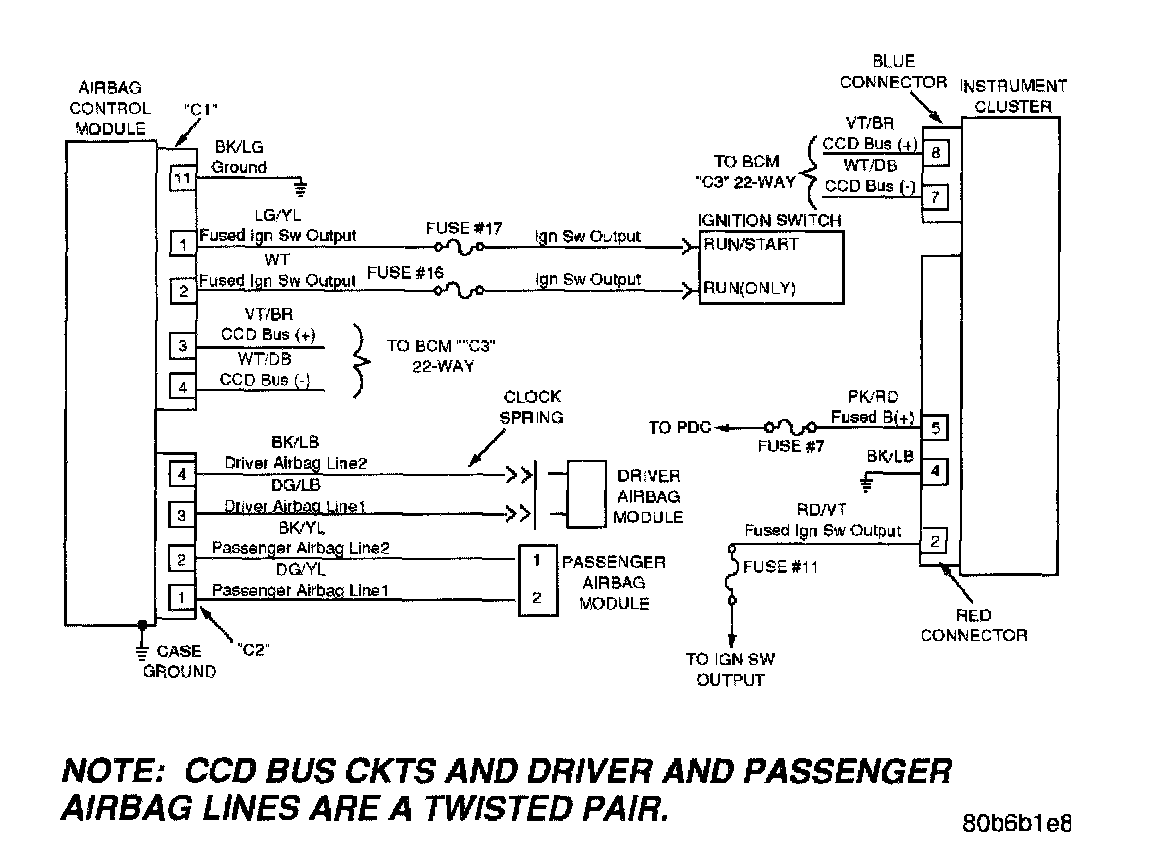

Airbag System:




NOTE: CCD Bus CKTS and Driver and Passenger Airbag Lines are a twisted pair.
