Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> System Diagram

System Diagram

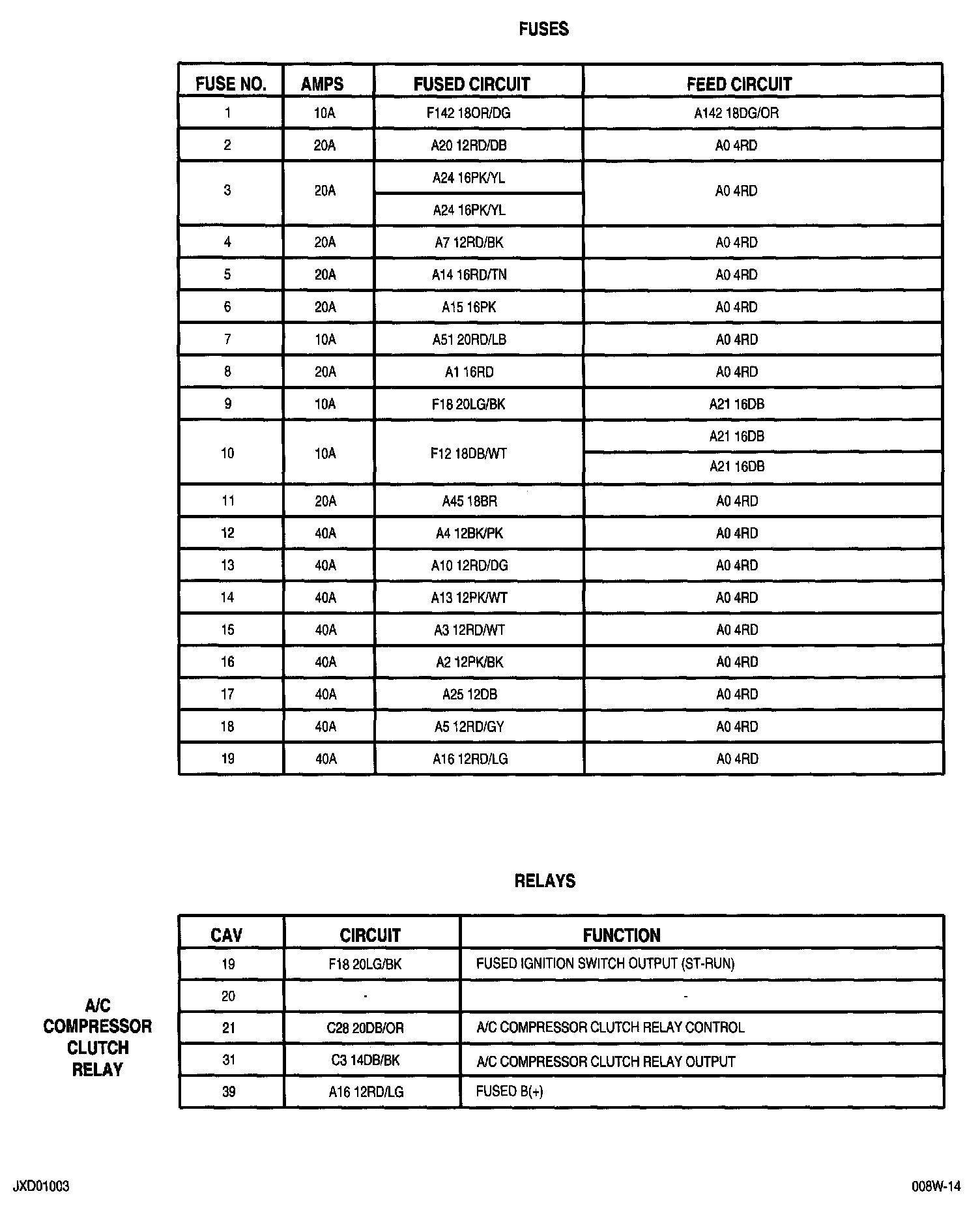

8w-10-2:

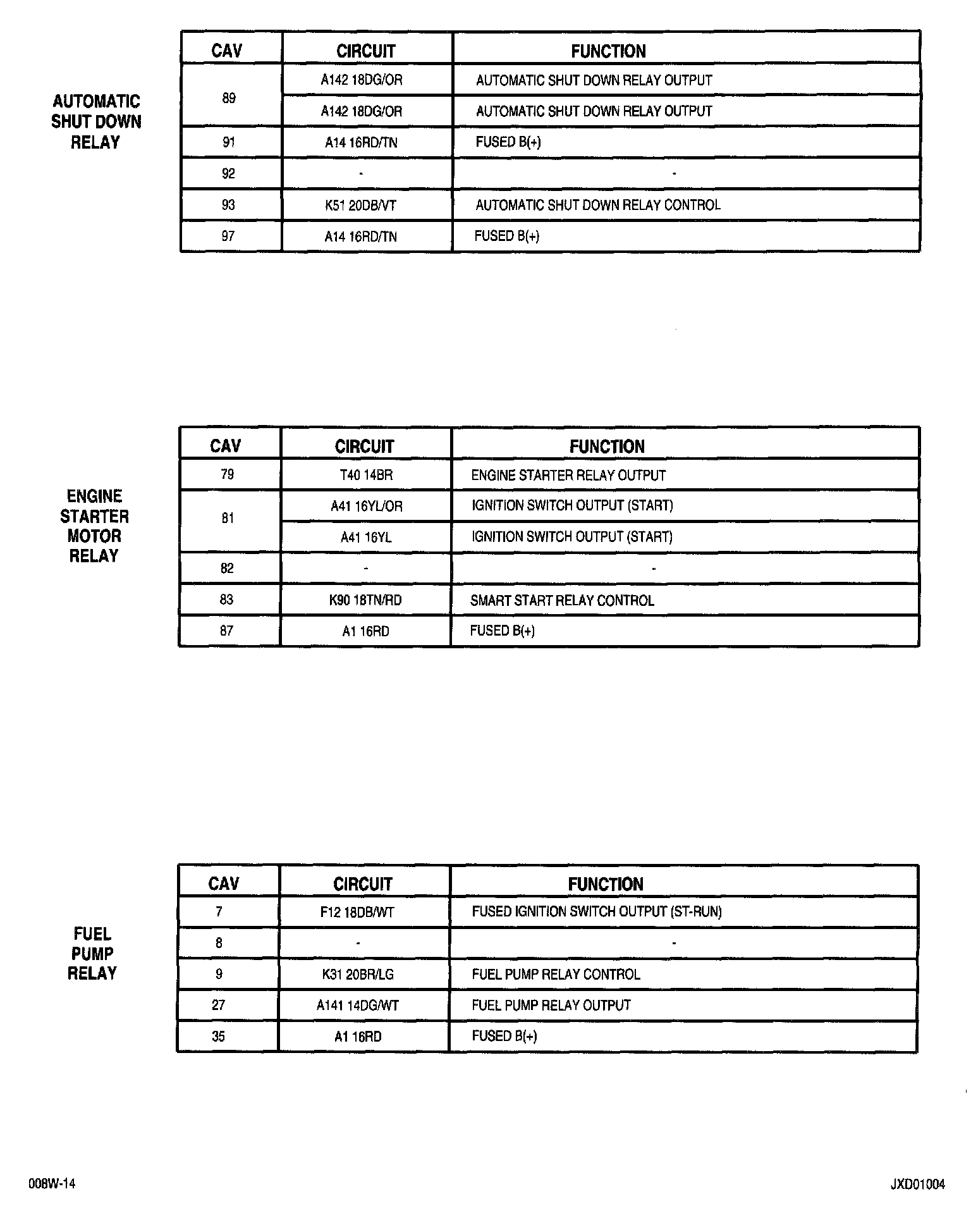

8w-10-3:

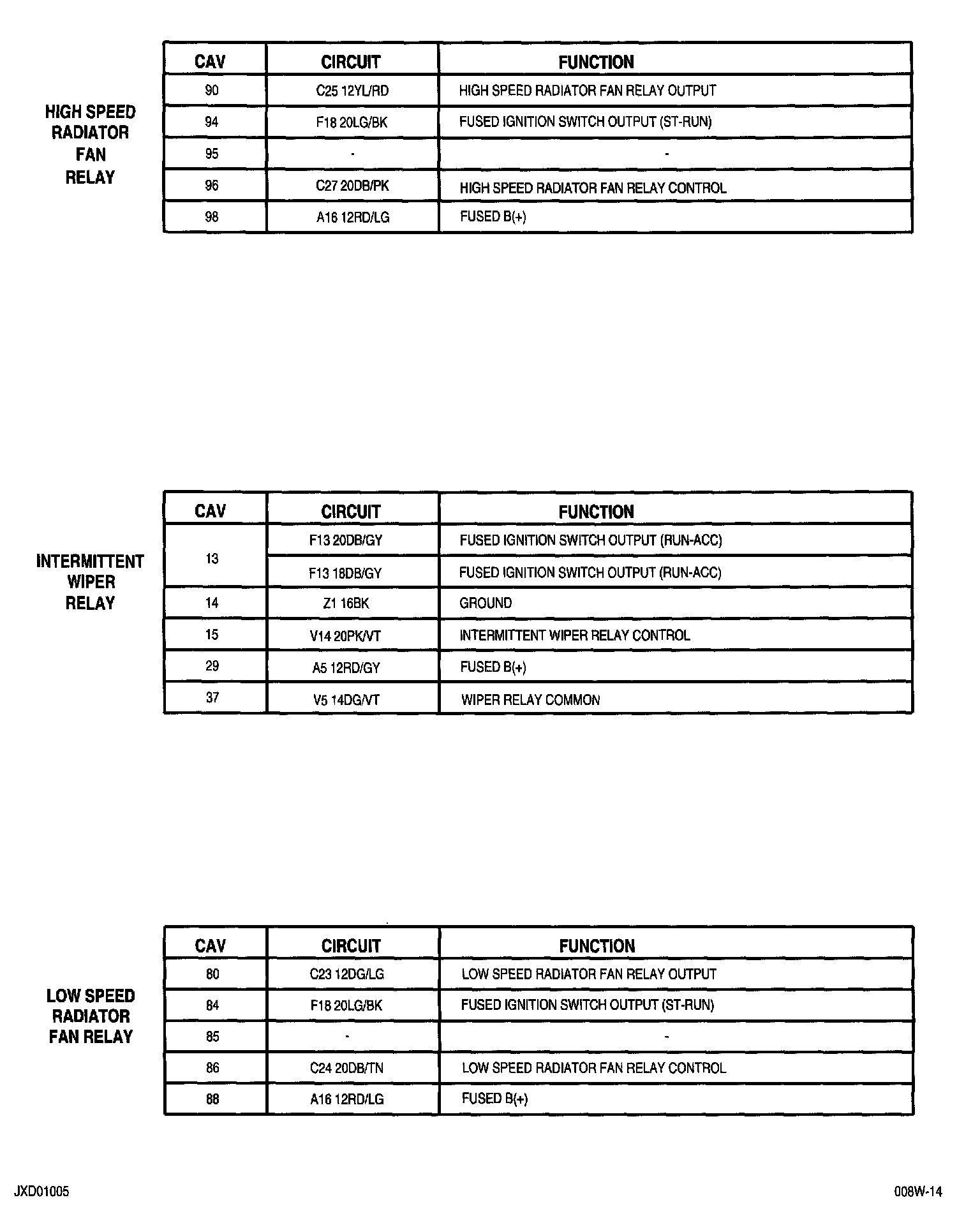

8w-10-4:

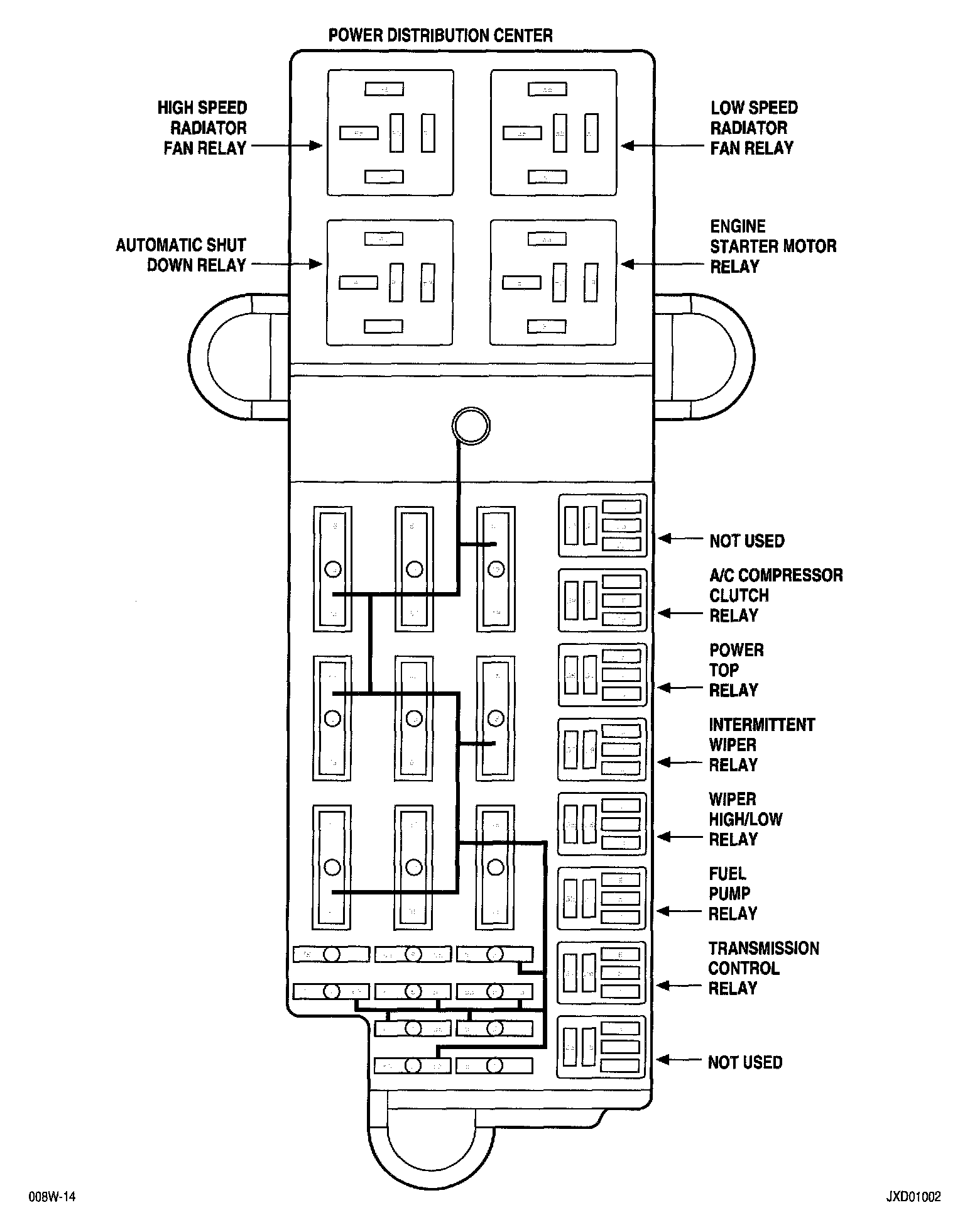

8w-10-5:

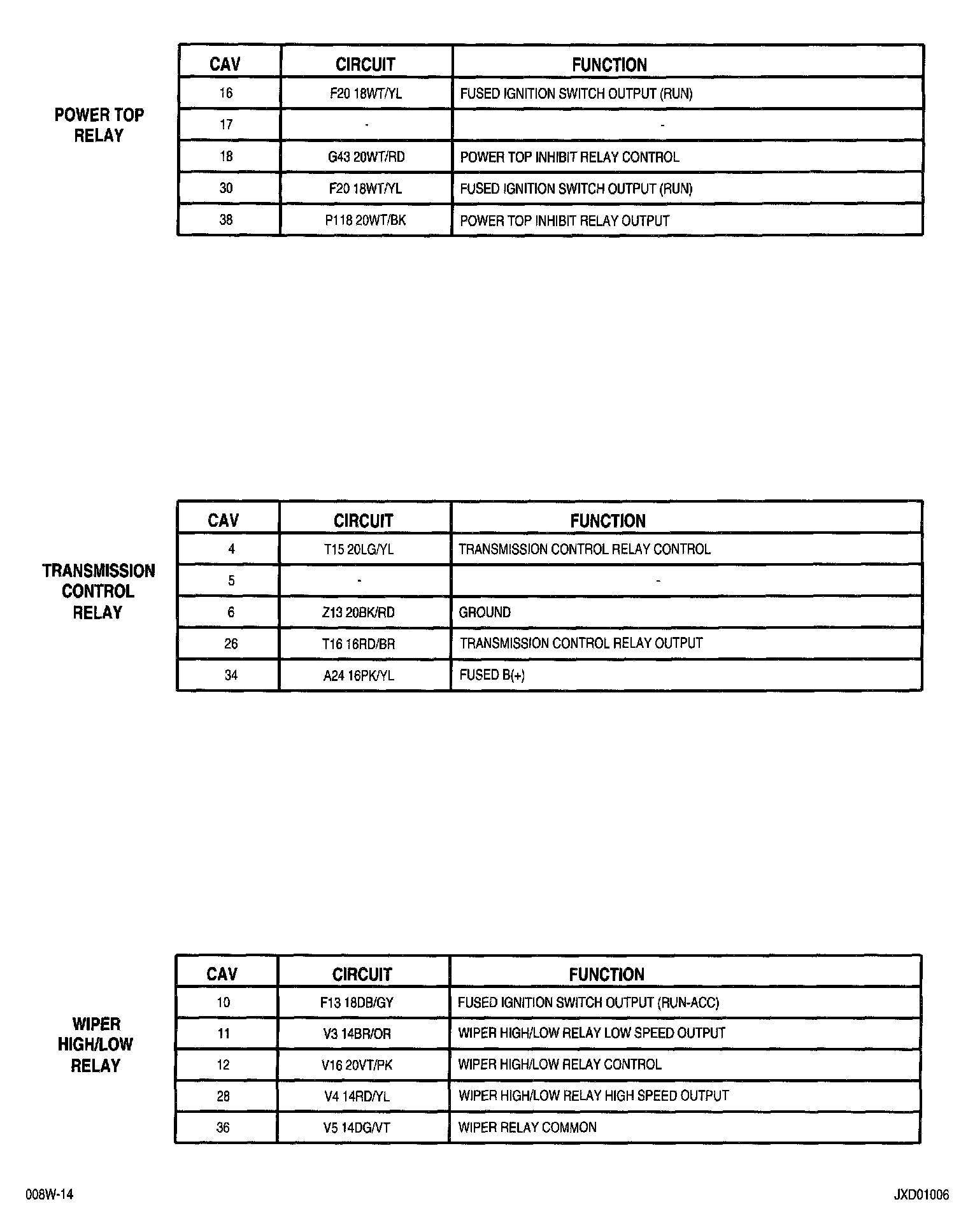

8w-10-6:
