Power Distribution Module

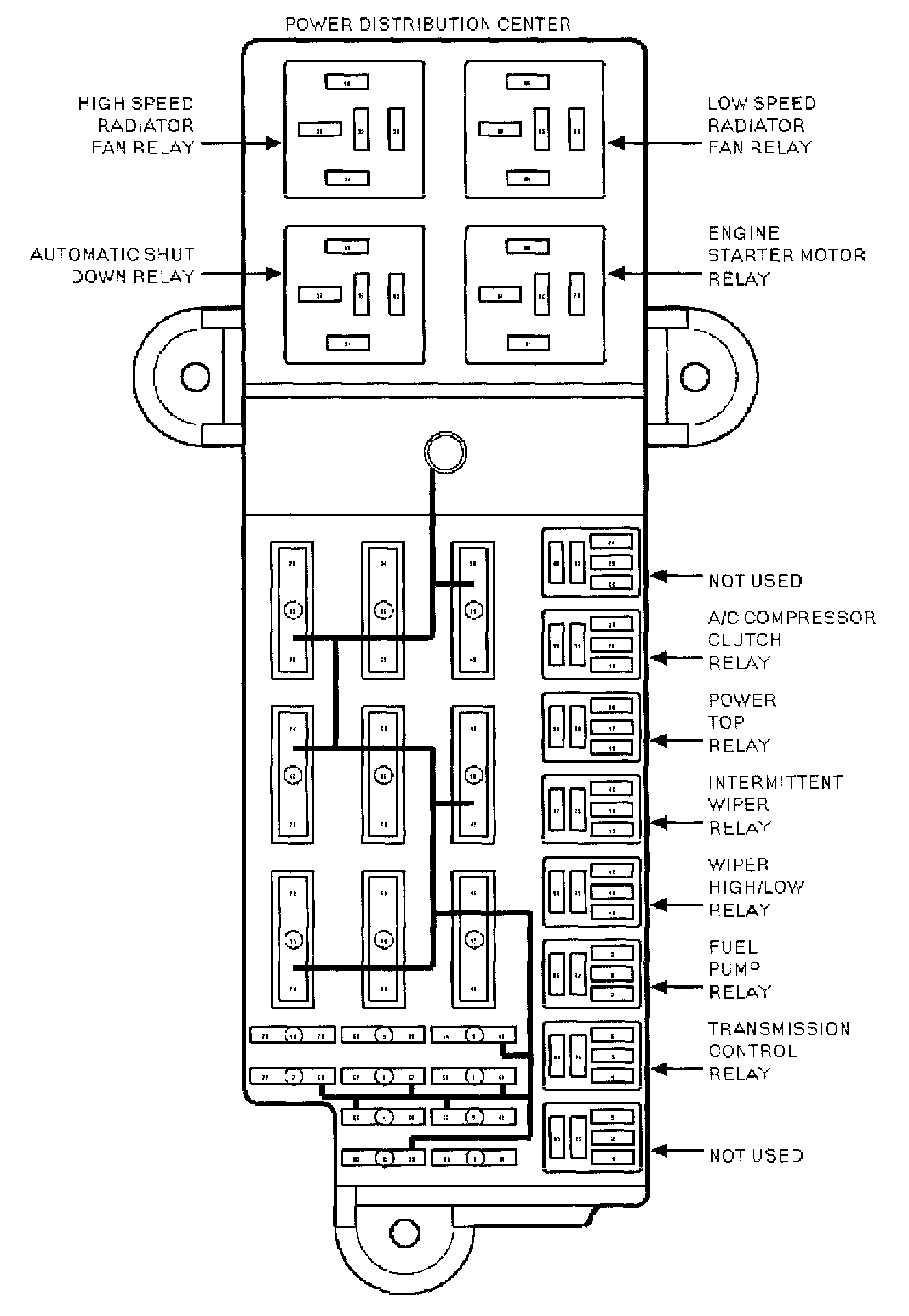

Power Distribution Center:

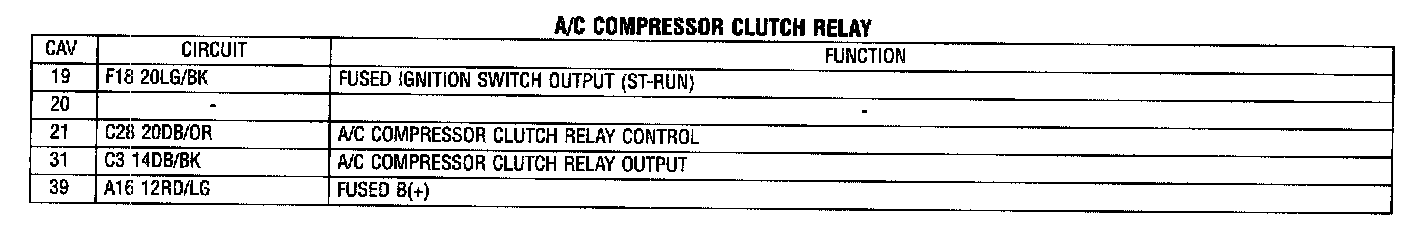

A/C Compressor Clutch Relay:

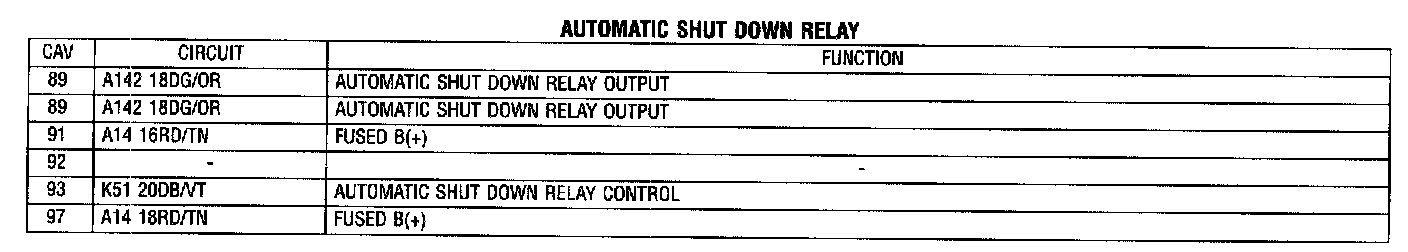

Automatic Shutdown Relay:

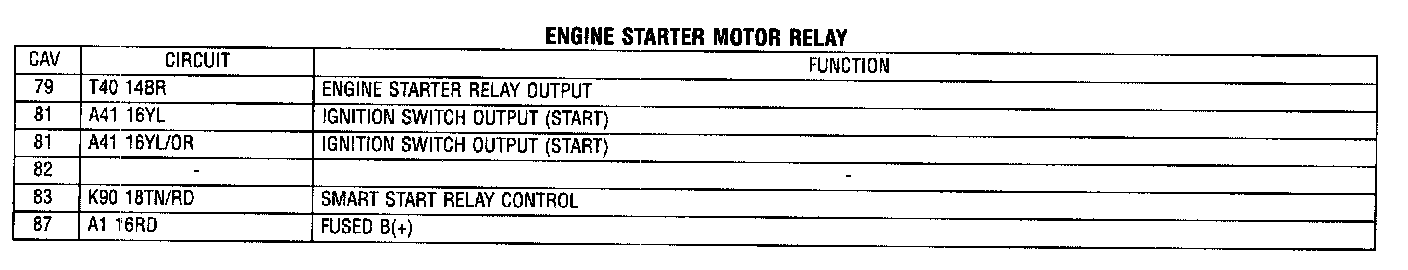

Engine Starter Motor Relay:

Fuel Pump Relay:

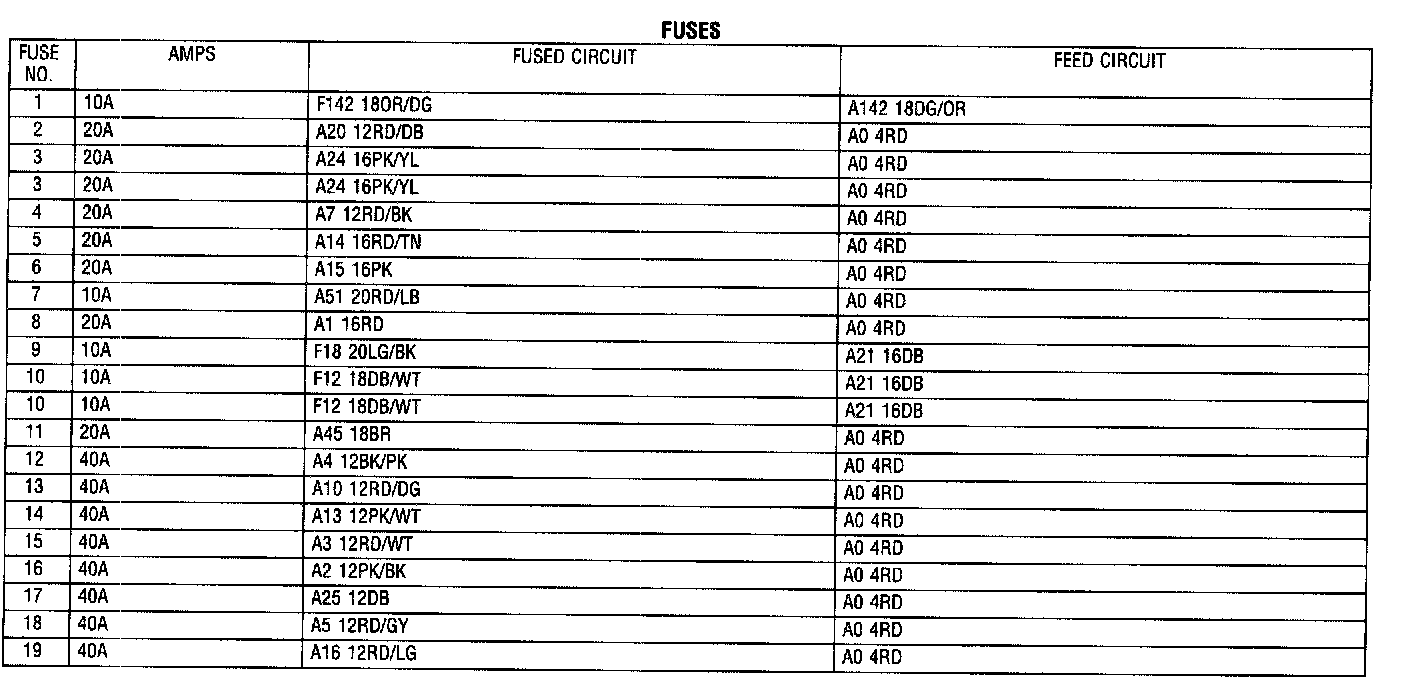

Fuses:

High Speed Radiator Fan Relay:

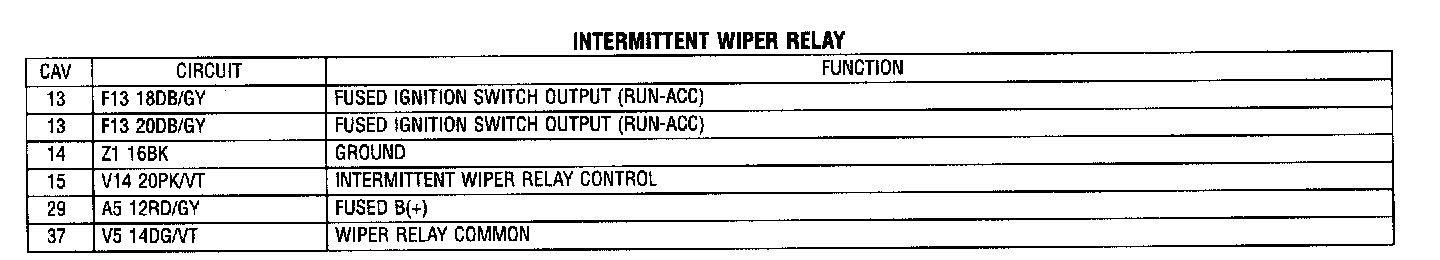

Intermittent Wiper Relay:

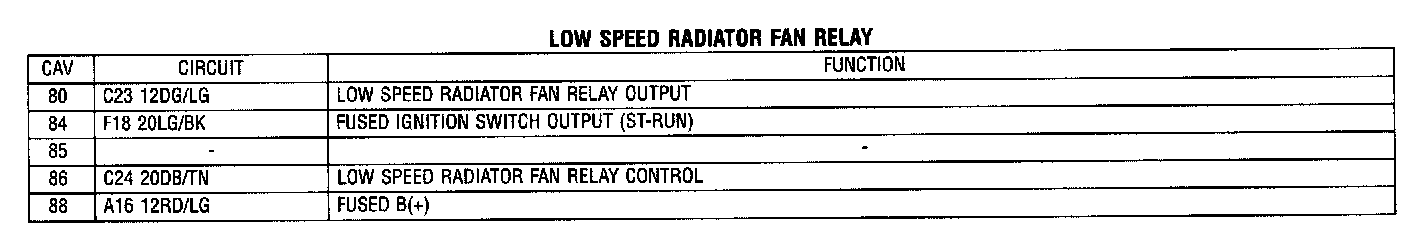

Low Speed Radiator Fan Relay:

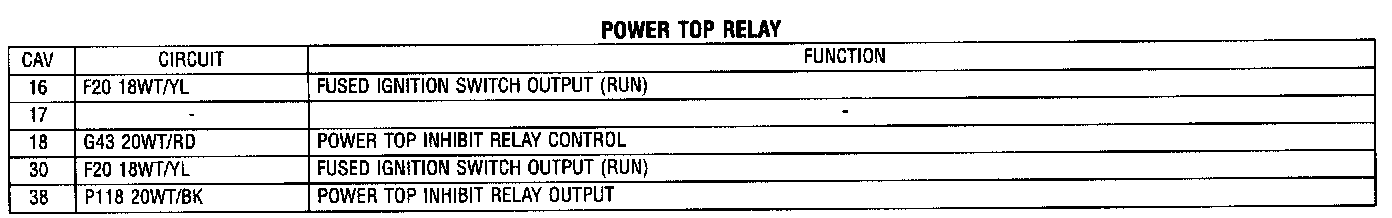

Power Top Relay:

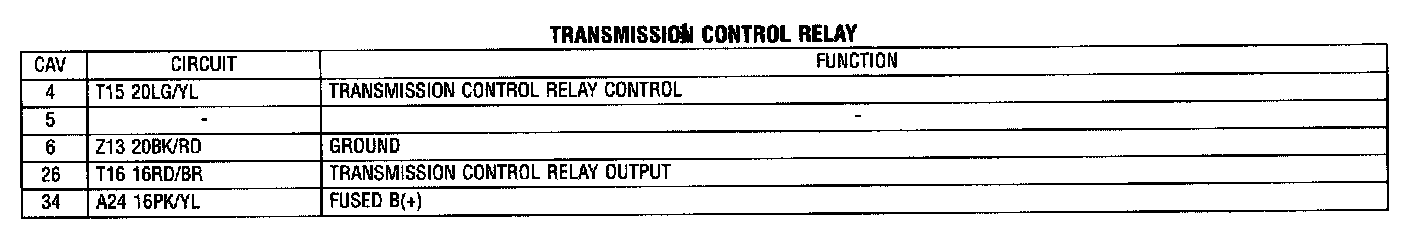

Transmission Control Relay:

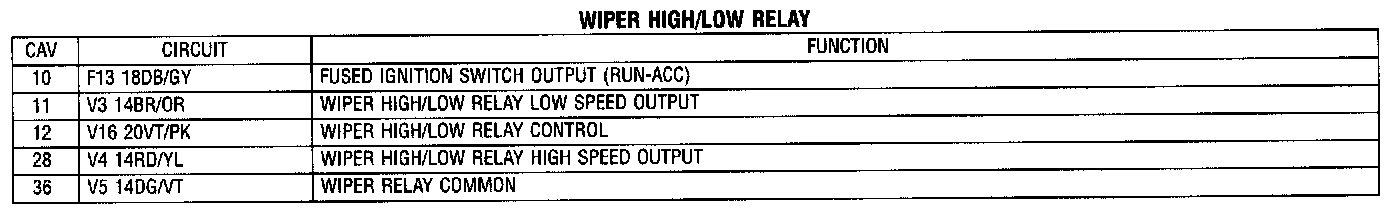

Wiper High/Low Relay:
