Fuse

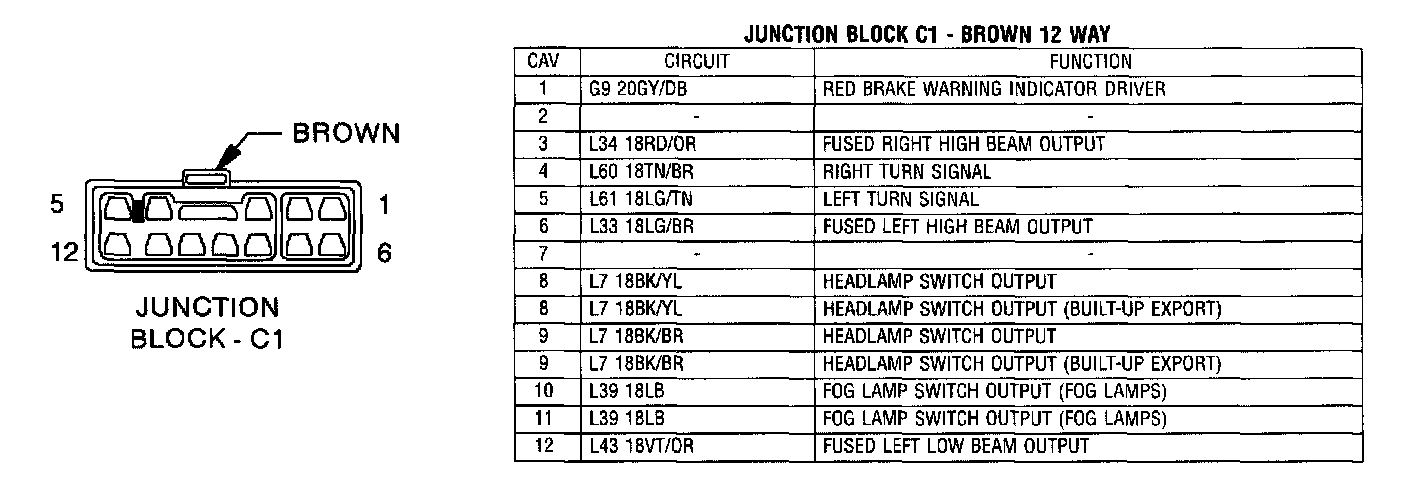

Junction Block - C1:

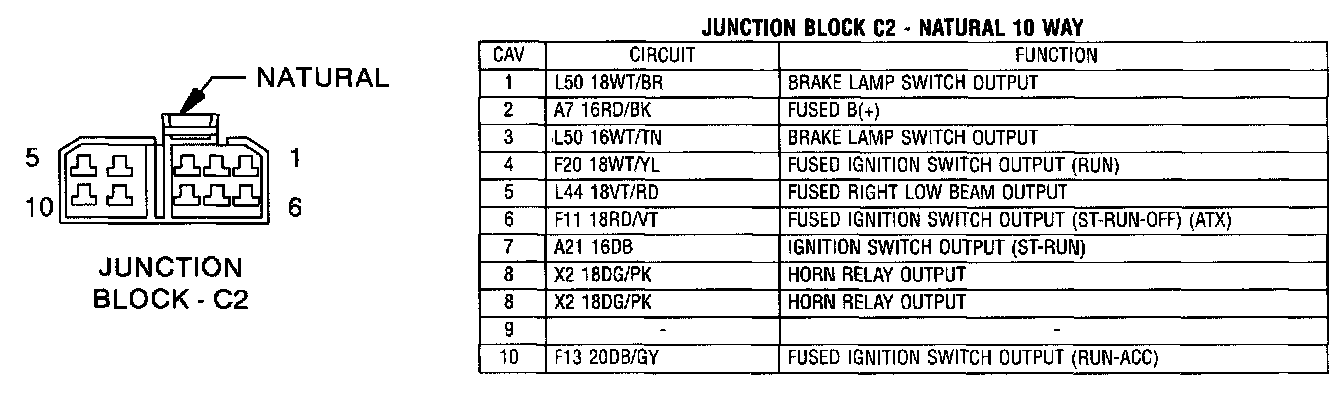

Junction Block - C2:





Junction Block - C3:

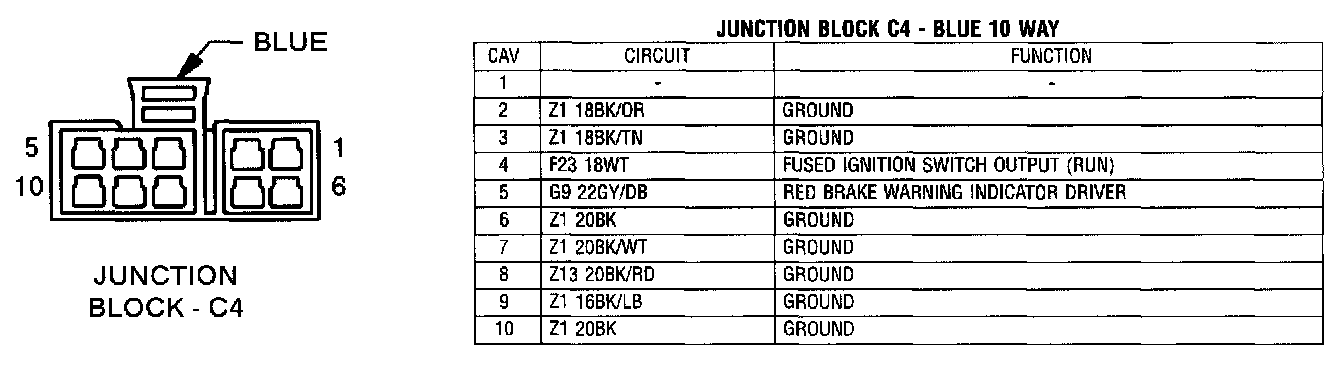

Junction Block - C4:

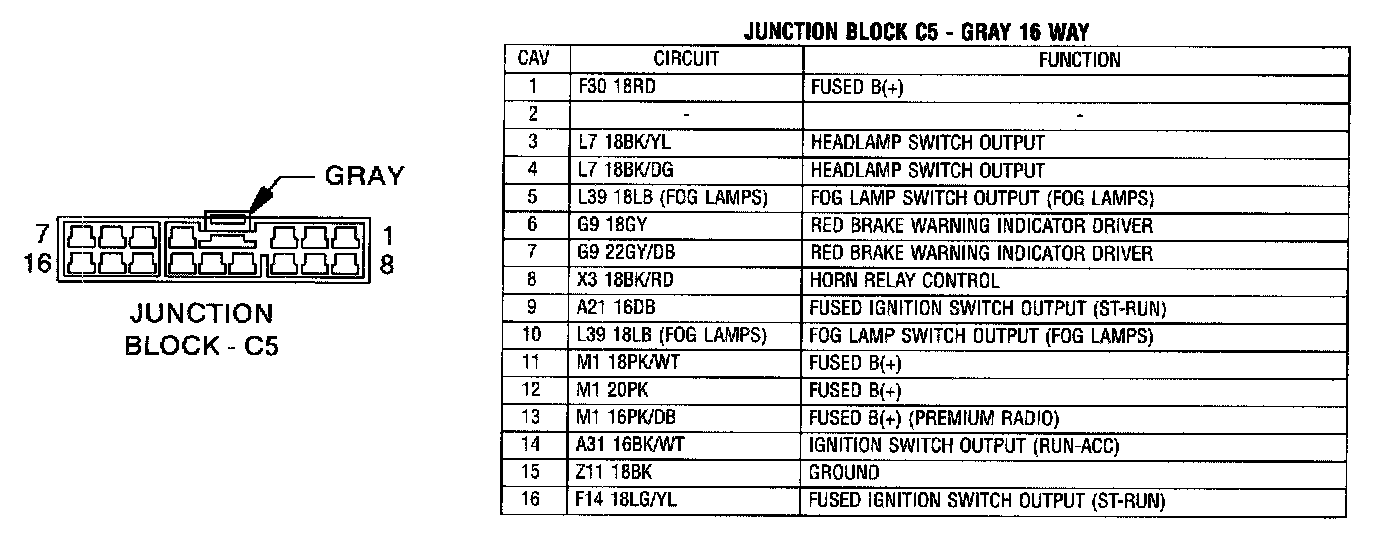

Junction Block - C5:

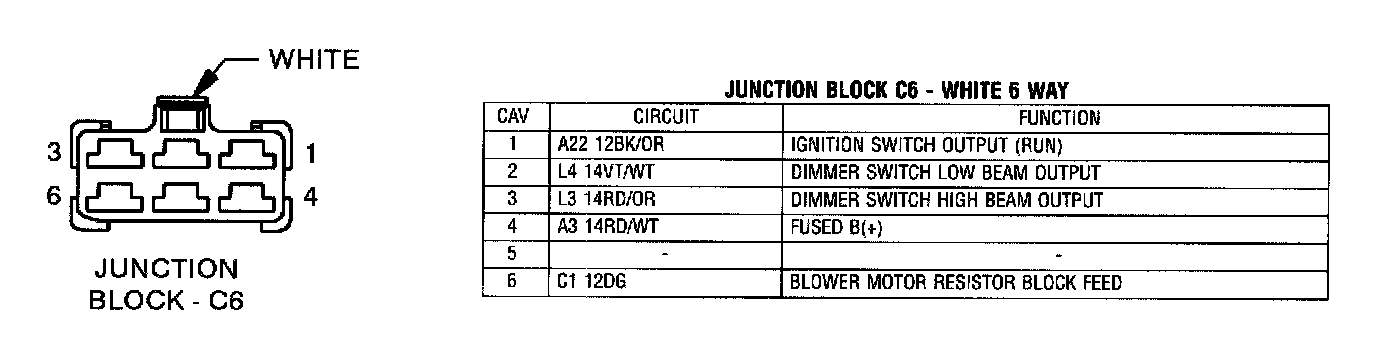

Junction Block - C6:

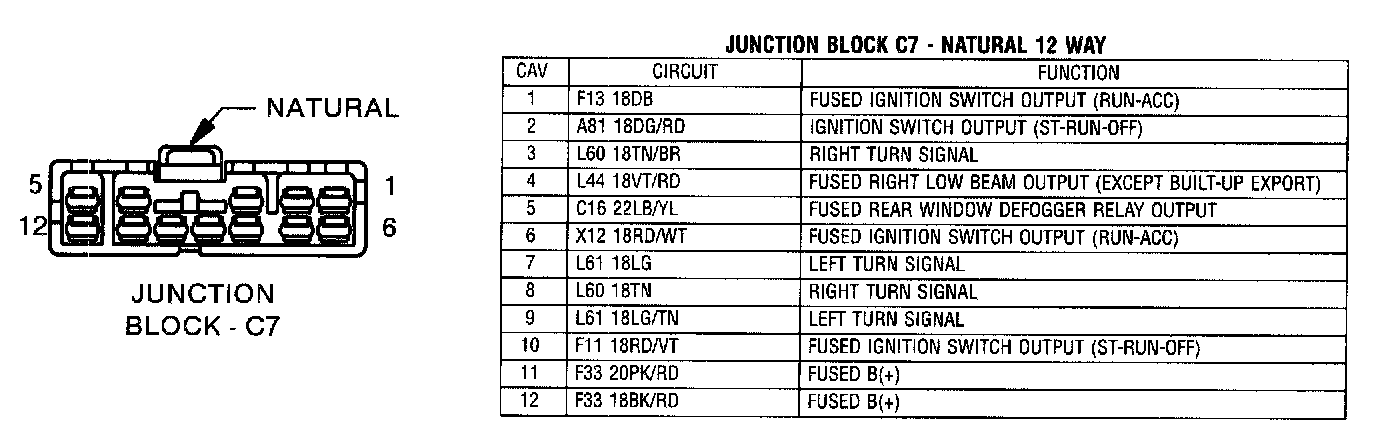

Junction Block - C7:

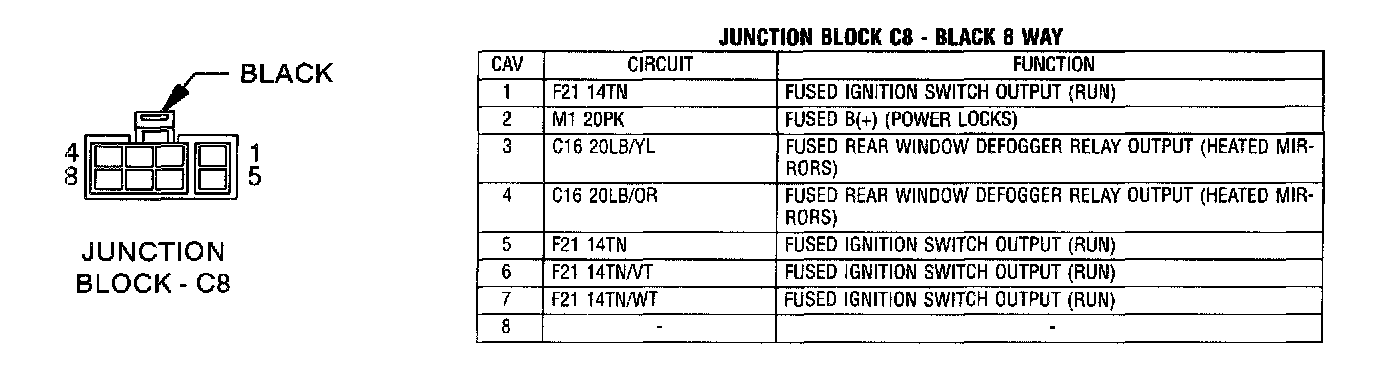

Junction Block - C8:

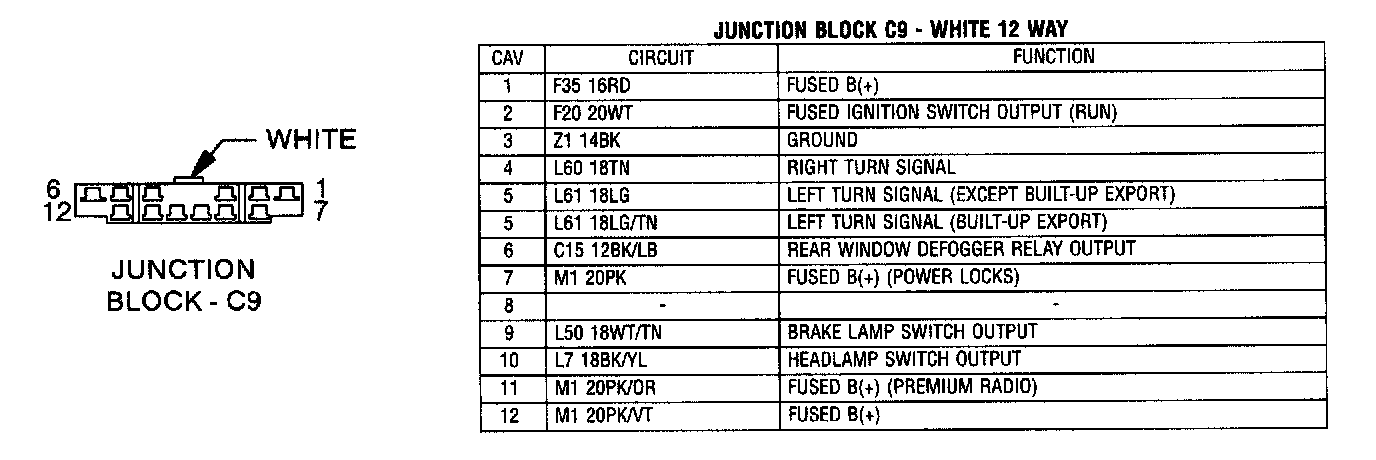

Junction Block - C9:

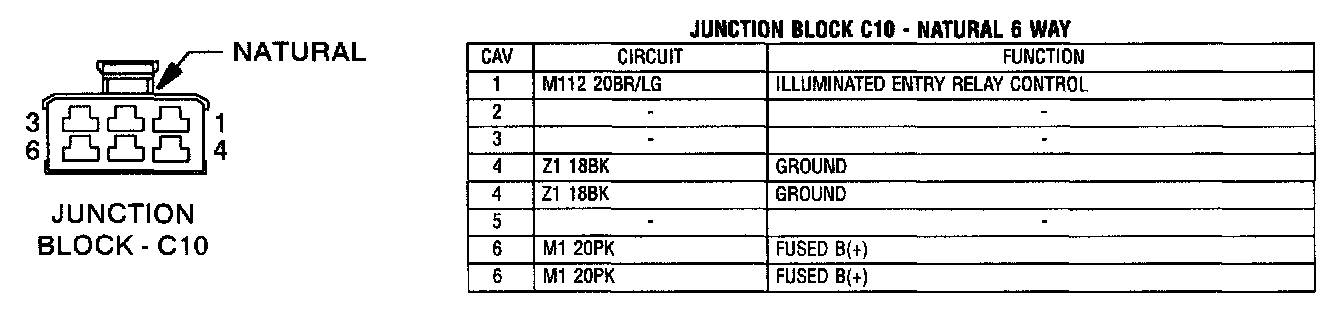

Junction Block - C10:
