Power Door Lock Switch
Power Door Lock Switch

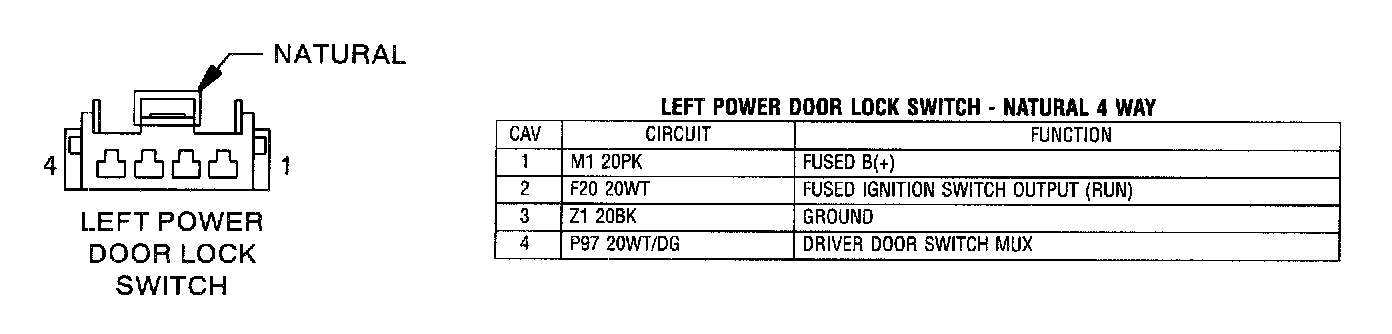

Left Power Door Lock Switch:

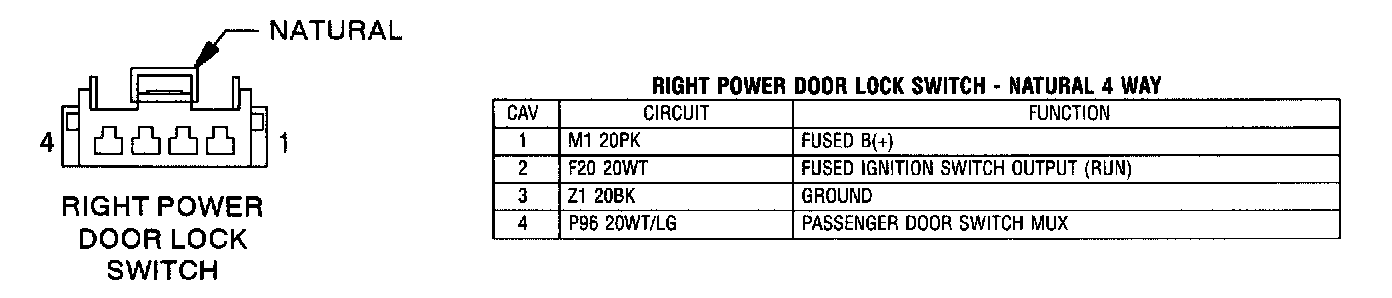

Right Power Door Lock Switch:
