Home
>>
Chrysler
>>
2000
>>
Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Backup Lamp
Backup Lamp

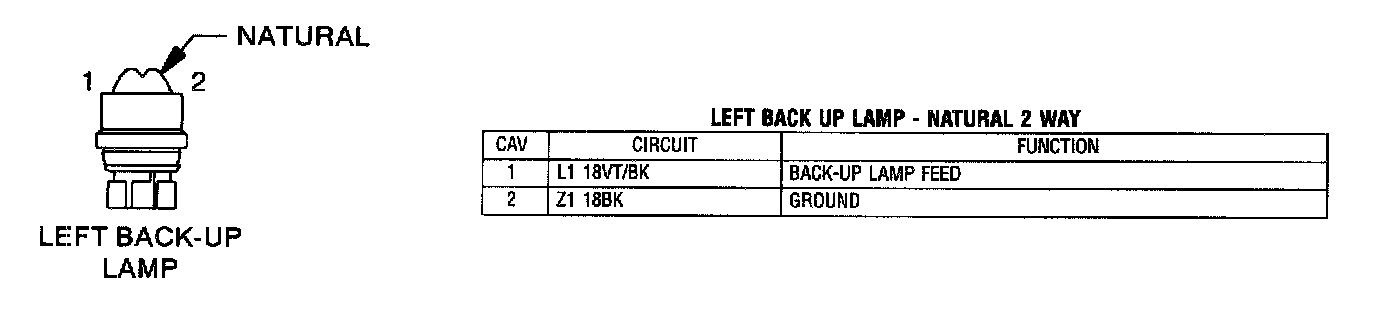

Left Back-up Lamp:

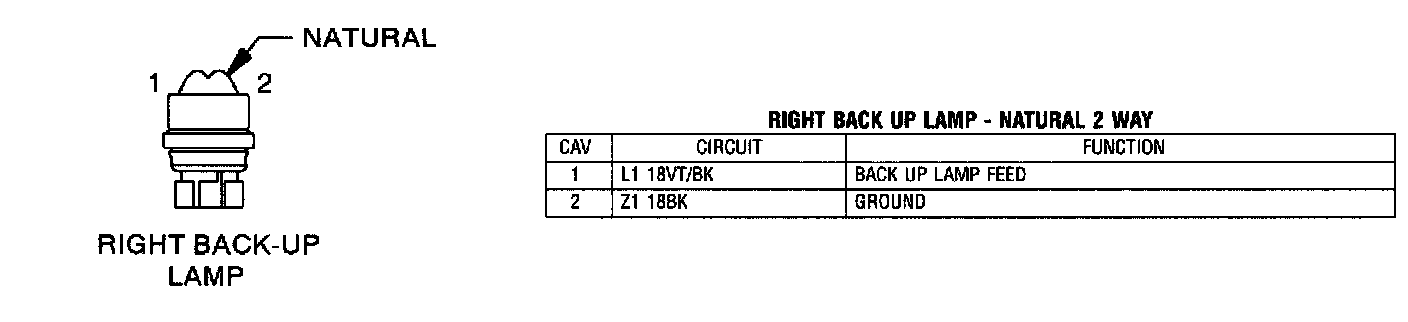

Right Back-up Lamp:
BACK-UP LAMPS
