Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Traction Control Switch

Traction Control Switch

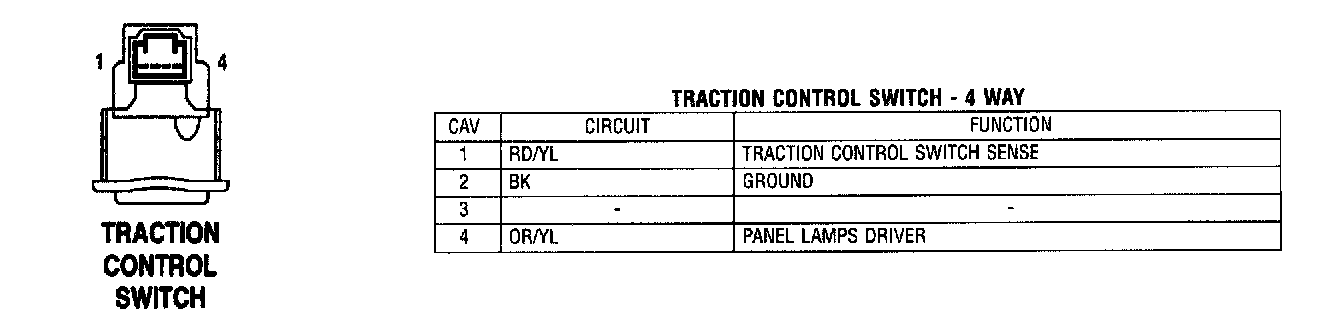

Traction Control Switch-4 Way:

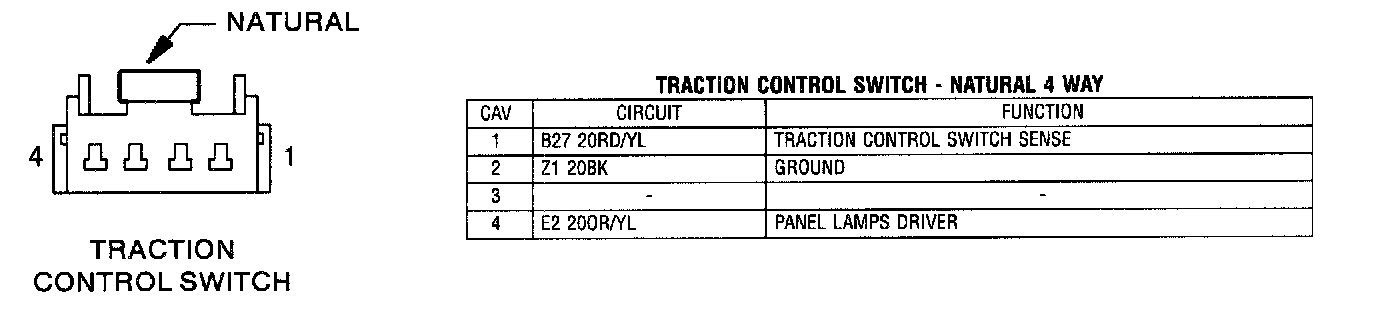

Traction Control Switch-Natural 4 Way:
