Checking Park/Neutral Position Switch

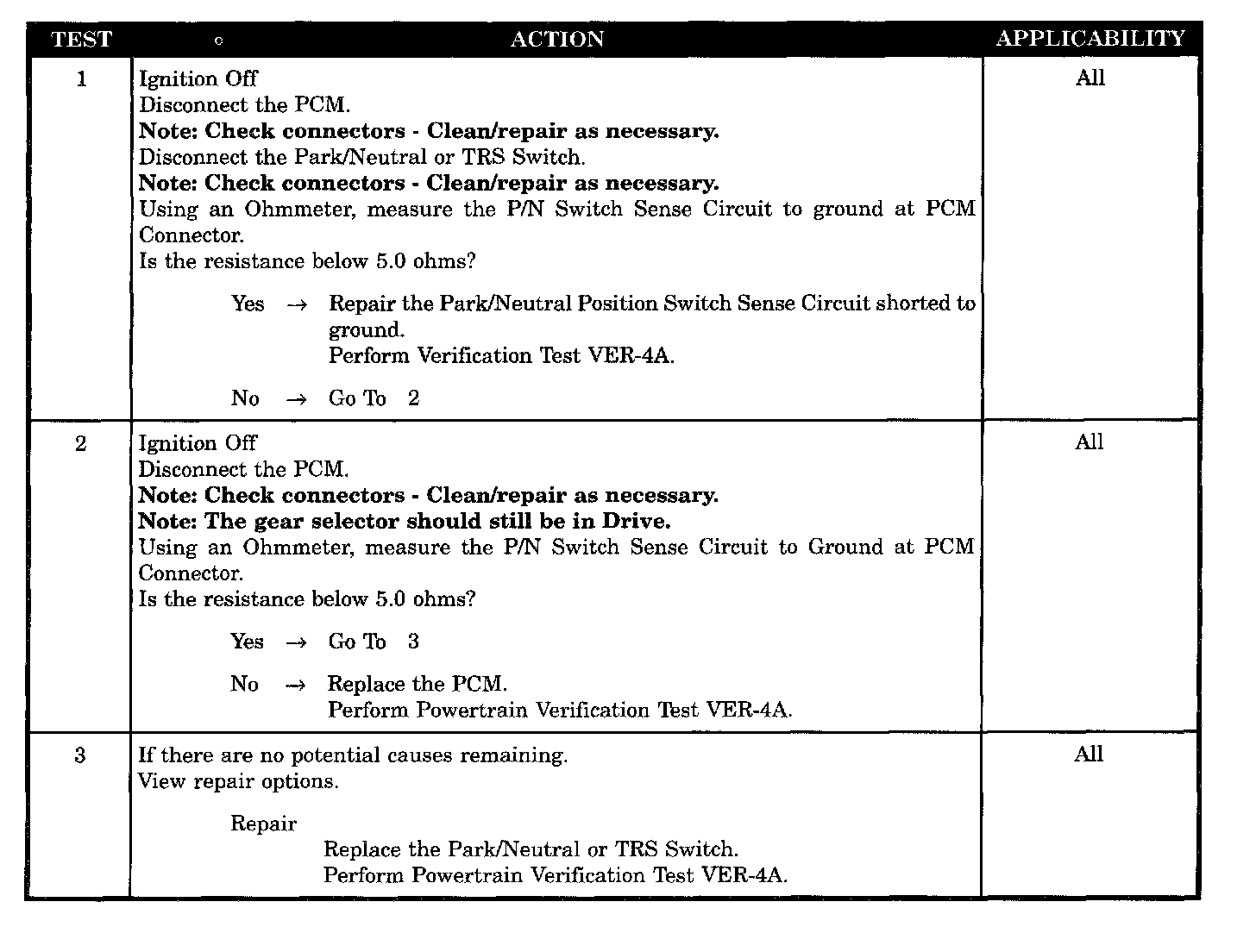

Tests 1 - 3:





SYMPTOM
PARK/NEUTRAL POSITION SWITCH

POSSIBLE CAUSES
- Park/Neutral position sense circuit shorted to ground
- Park/Neutral position switch defective
- PCM defective
