Checking Brake Switch Sense

Tests 1 - 4:

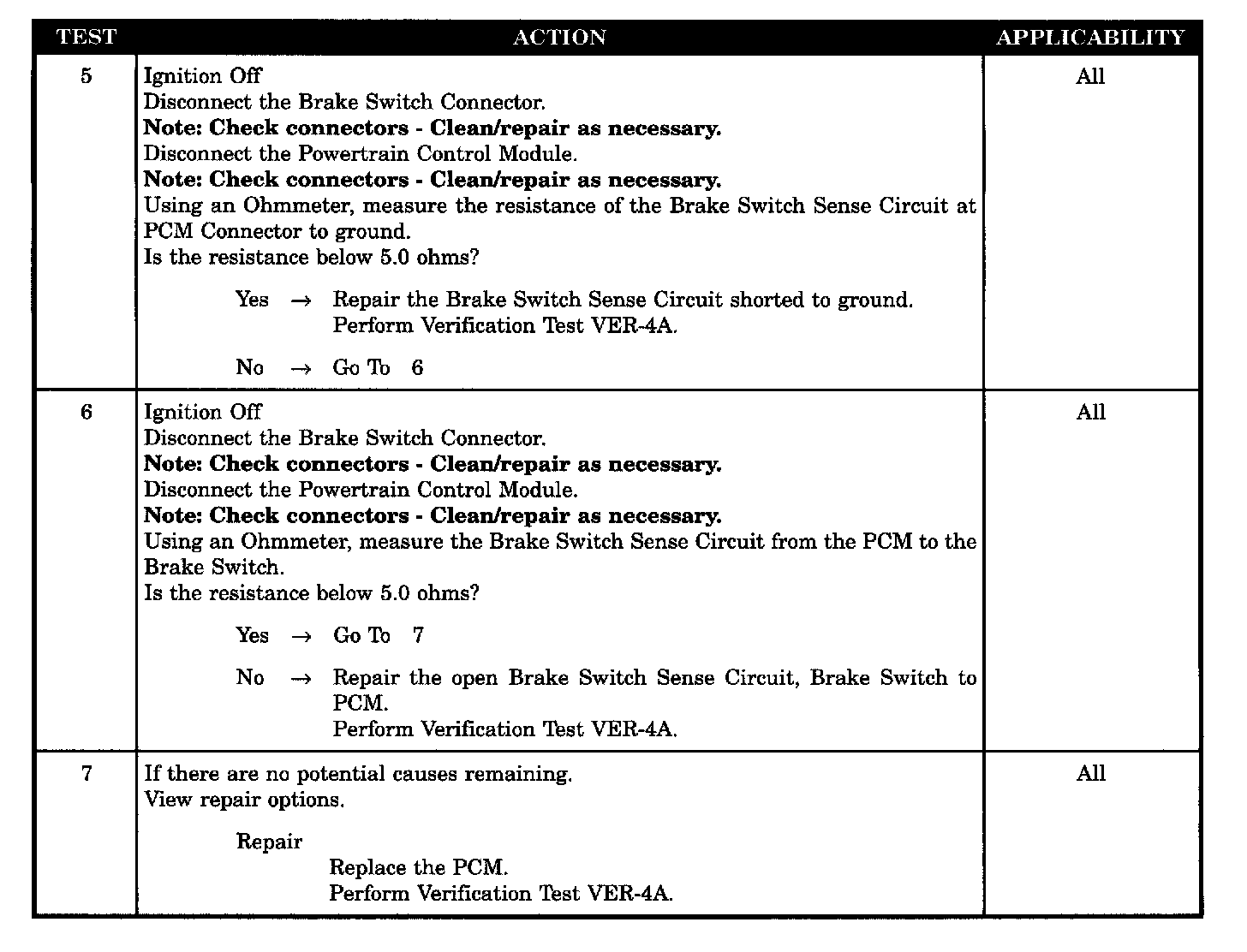

Tests 5 - 7:

SYMPTOM
BRAKE SWITCH SENSE

POSSIBLE CAUSES
- Ground circuit open
- PCM connector terminal observable defect
- Brake switch defective
- Brake switch sense circuit open
- Brake switch sense circuit shorted to ground
- PCM defective (brake switch sense)
