Cruise Control Servo Cable: Service and Repair

REMOVAL
1. Remove the negative battery cable.
2. Remove the air inlet resonator.

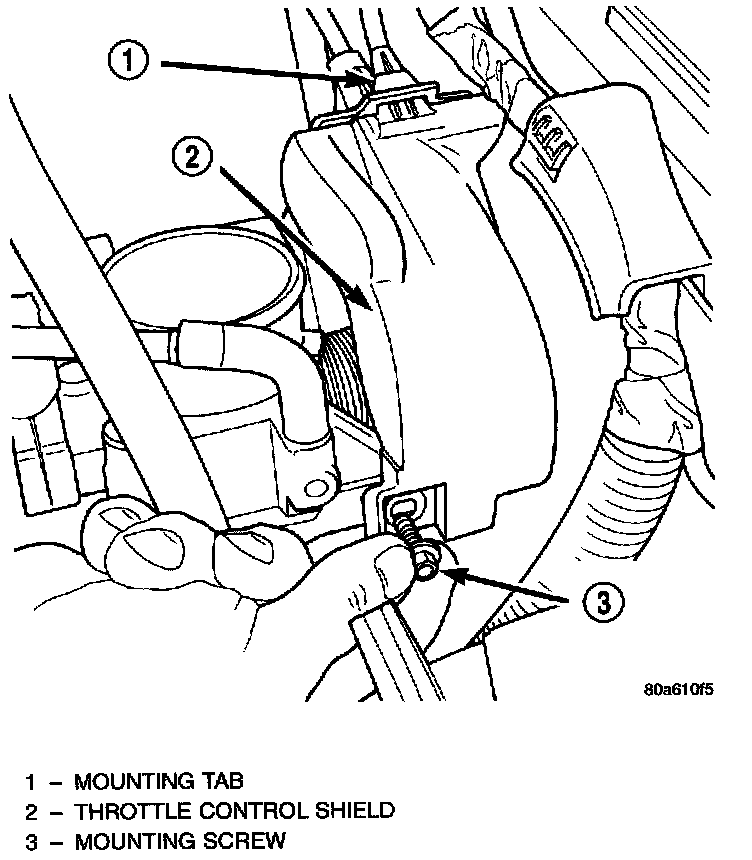

Throttle Control Shield:

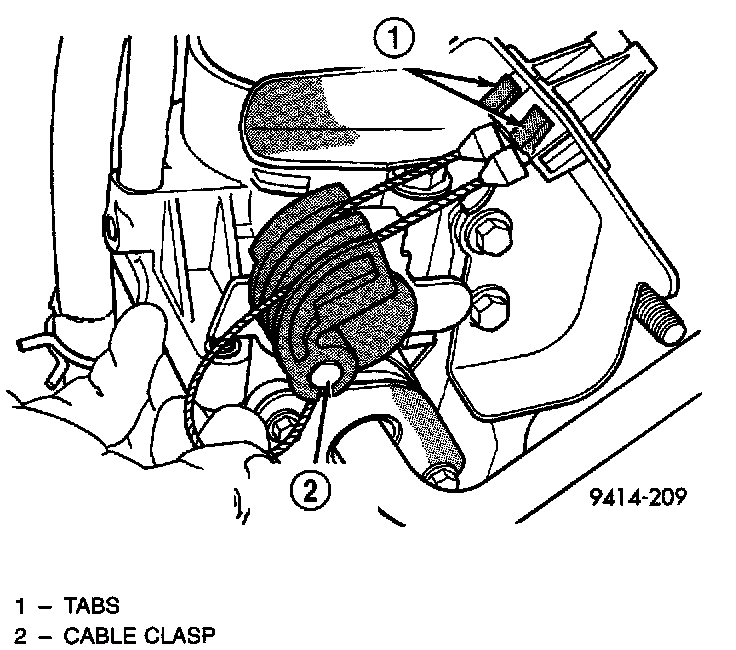

Disconnecting Throttle Cable-Typical:

3. Remove throttle control shield, if equipped.
4. Remove throttle cable clasp from the throttle body cam.
5. Remove speed control cable from throttle cam by sliding clasp out hole used for throttle cable.
6. Compress the retaining tabs on the cable and slide cable out of bracket.
7. Remove 2 nuts retaining cable and bracket to servo.
8. Slide cable bell housing off of servo mounting studs.
9. Remove retaining clip holding cable to servo.

INSTALLATION
1. Install cable core wire through center hole on bracket, onto servo center post.
2. Install retaining clip to cable at servo.
3. Slide cable bell housing over servo mounting studs (bracket in between).
4. Install 2 nuts at cable to and servo bracket to servo, tighten to 7 Nm (60 ins. lbs.).
5. Slide cable into throttle cable bracket and engage retaining tabs.
6. Rotate the throttle cam forward to the wide open position and install speed control cable clasp.
7. Rotate the throttle cam forward to the wide open position and install throttle cable clasp.
8. Install throttle control shield, if equipped.
9. Install the air inlet resonator.
10. Install the negative battery cable.
