Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Brakes and Traction Control >> Specifications >> Mechanical Specifications >> Antilock Brake System Component Specifications

Antilock Brake System Component Specifications

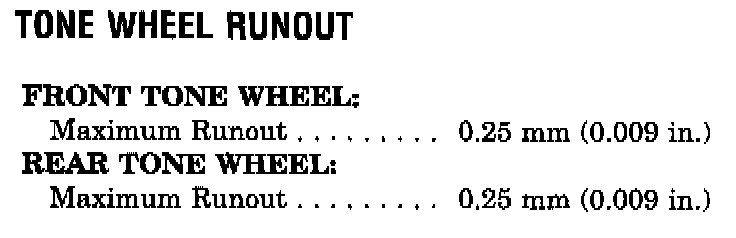

Tone Wheel Runout

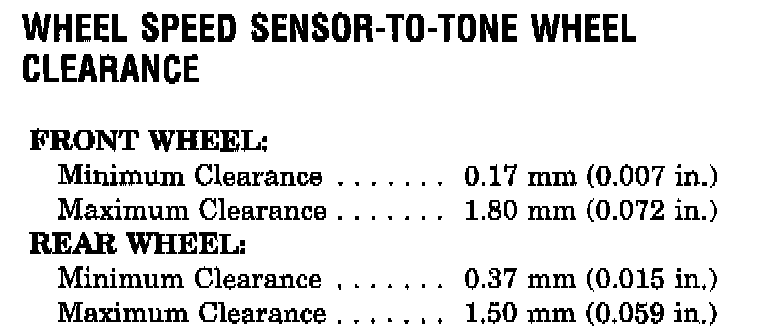

Wheel Speed Sensor-to-Tone Wheel Clearance

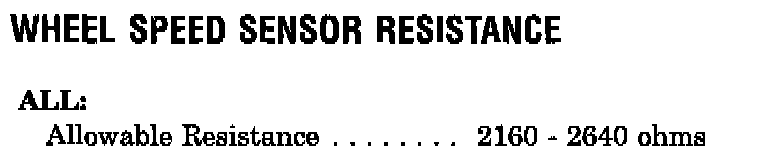

Wheel Speed Sensor Resistance
