Rear

NOTE: Before proceeding, review SERVICE WARNINGS AND CAUTIONS at Brakes and Traction Control, Service precautions.

REMOVAL
1. Raise vehicle on jackstands or centered on a hoist. See Hoisting in Maintenance.
2. Remove rear wheels and tires from vehicle.

Caliper Assembly Guide Pin Bolts:

3. Remove the 2 guide pin bolts mounting the caliper to the adapter.

Caliper Removal/Installation:

4. Remove caliper from adapter and rotor by first rotating the top of the caliper away from adapter, and then lifting the caliper off the lower machined abutment on adapter.

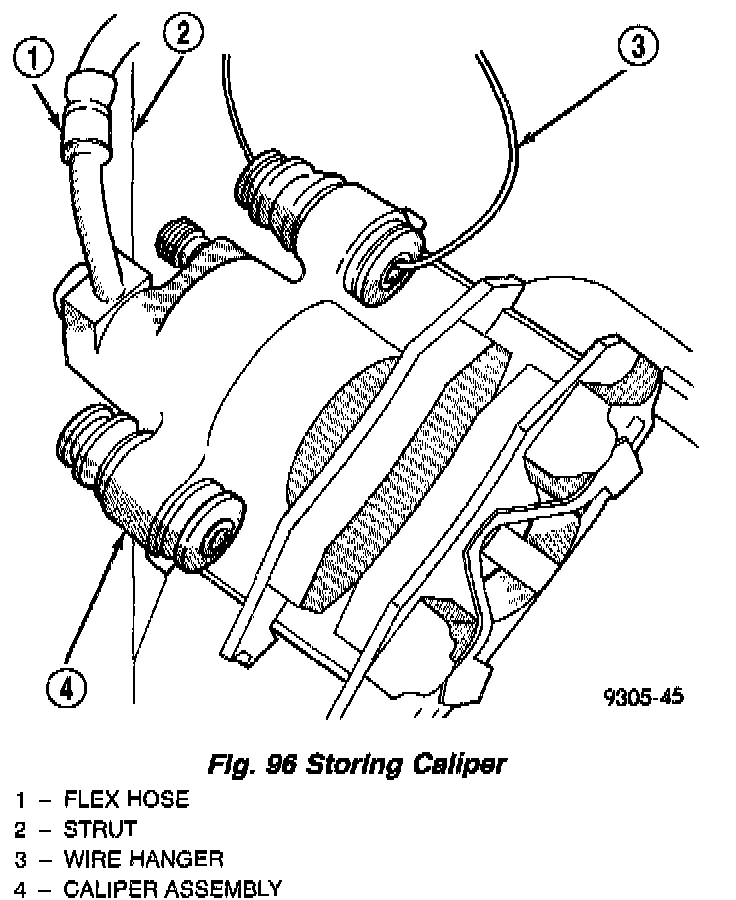

5. Support caliper from rear strut to prevent weight of caliper from damaging the flexible brake hose.






6. Remove rear rotor from hub/bearing. Then inspect drum-in-hat parking brake shoes and parking brake braking surface on rotor for any signs of excessive wear or damage. Replace parking brake shoes if required.

Removing/Installing Outboard Brake Shoe:

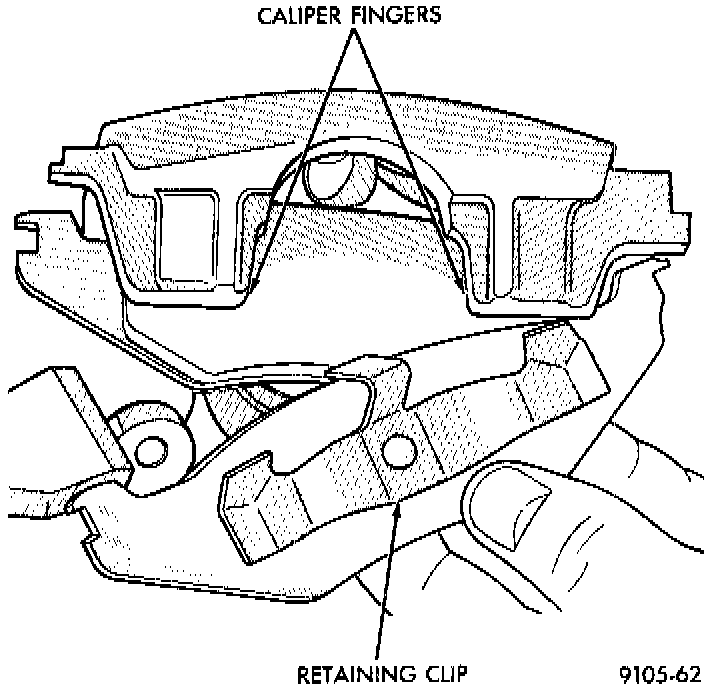

7. Remove outboard brake pad from caliper by prying brake pad retaining clip over raised area on caliper. Then slide brake pad down and off the caliper.

Removing Installing Inboard Brake Shoe:

8. Pull inboard brake pad away from caliper piston, until retaining clip is free from cavity in piston.

CALIPER INSPECTION
Check caliper for piston seal leaks (brake fluid in and around boot area and inboard lining) and for any ruptures of the piston dust boot. If boot is damaged, or fluid leak is visible, disassemble caliper and install a new seal and boot, (and piston if scored). Refer to Brake caliper Service and Procedure, Disassembly and Assembly.
Check the caliper dust boot and caliper pin bushings to determine if they are in good condition. Replace if they are damaged, dry, or found to be brittle.

INSTALLATION
1. Completely retract the caliper piston back into the piston bore of the caliper. This is required for caliper installation when new brake pad assemblies are installed on caliper.
2. Lubricate both adapter abutments with a liberal amount of Mopar Multipurpose Lubricant, or equivalent.

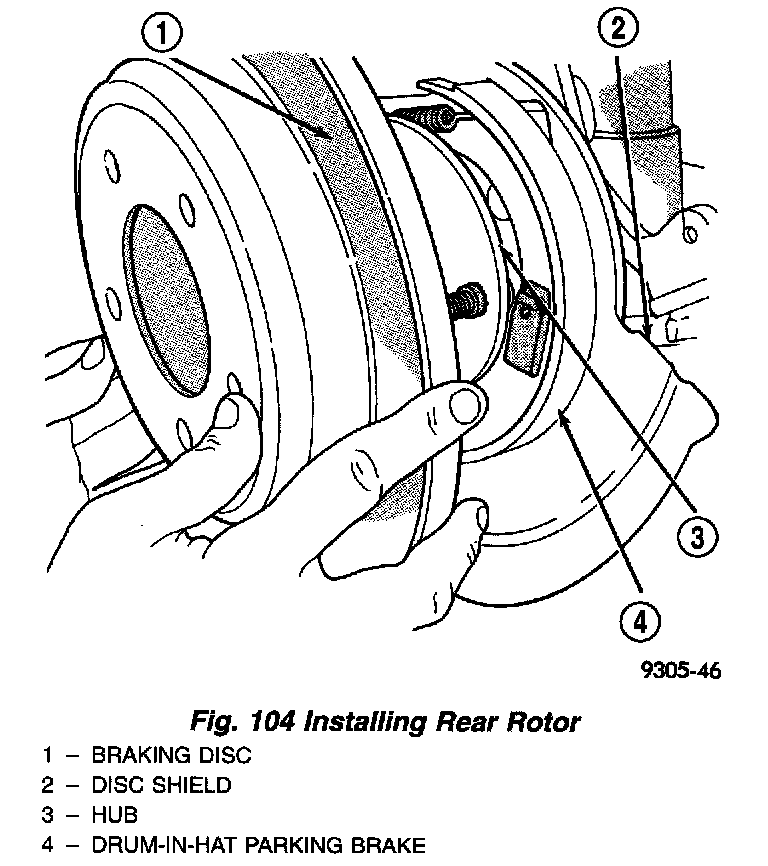

3. Install rear rotor on hub making sure it is squarely seated on face of hub.
4. Remove protective paper from noise suppression gasket on both inner and outer brake pad assemblies (if equipped).
5. Install new inboard brake pad into caliper piston by firmly pressing it into bore of piston using thumbs. Be sure inboard brake shoe is positioned squarely against face of piston.
6. Slide new outboard brake pad onto the caliper. Be sure retaining clip is squarely seated in the depressed areas on the caliper.

CAUTION: Use care when installing caliper assembly onto adapter, so the guide pin bushings and sleeves do not get damaged by the mounting bosses on adapter.

7. Carefully lower caliper and brake shoes over rotor reversing the required removal procedure. Make sure that caliper guide pin bolts, bushings and sleeves are clear of the adapter bosses.

CAUTION: Extreme caution should be taken not to cross thread the caliper guide pin bolts when they are installed.

8. Install caliper guide pin bolts into adapter. Tighten the guide pin bolts to a torque of 22 Nm (192 inch lbs.).
9. Install the wheels and tires.
10. Tighten the wheel mounting stud nuts in proper sequence until all nuts are torqued to half specification. Then repeat the tightening sequence to the full specified torque of 135 Nm (100 ft. lbs.).
11. Remove jackstands or lower hoist.
12. Check brake fluid level.

NOTE: Before vehicle is moved after any brake service work, pump the brake pedal several times to insure the vehicle has a firm brake pedal.

13. Road test the vehicle and make several stops to wear off any foreign material on the brakes and to seat the brake pads.
