ABS Fuses

DESCRIPTION

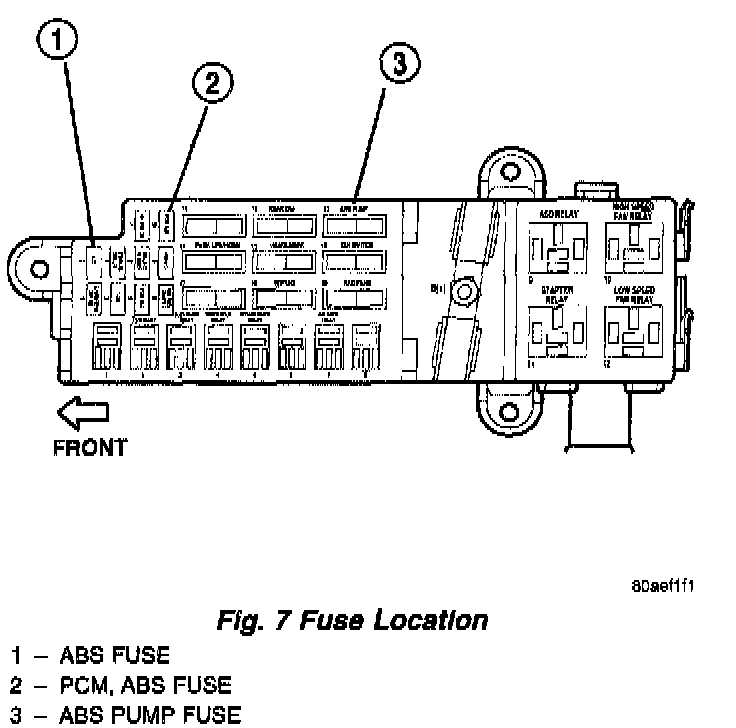

The ABS fuses and the ABS pump/motor fuse are located in the Power distribution center (PDC). Refer to the sticker on the inside of the PDC cover for the location of these fuses. The PDC is located on the driver's side of the engine compartment between the radiator and the brake master cylinder.
