Power Seat Switch: Service and Repair

REMOVAL

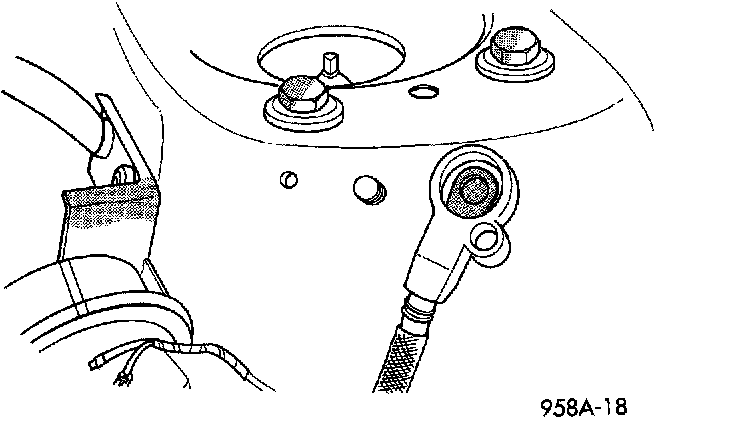

Disconnect Battery Negative Remote Cable:

1. Disconnect and isolate the battery negative remote cable.
2. Remove left cushion side shield.
3. Disconnect wiring from switch.
4. Remove the seat and recliner switch knobs.
5. Remove attaching screws and switch from bezel.

INSTALLATION
For installation, reverse the above procedure.
