Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Diagrams >> Electrical Diagrams

Electrical Diagrams

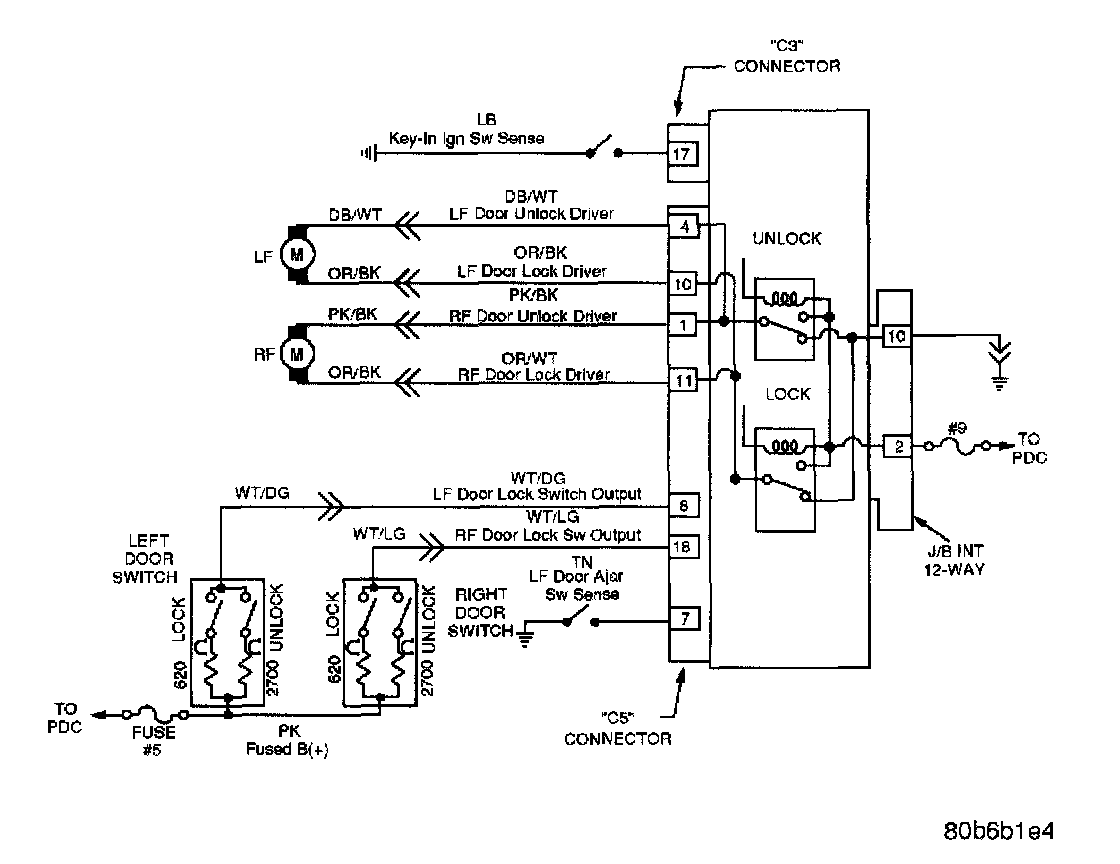

Door Locks Wo/RKE:

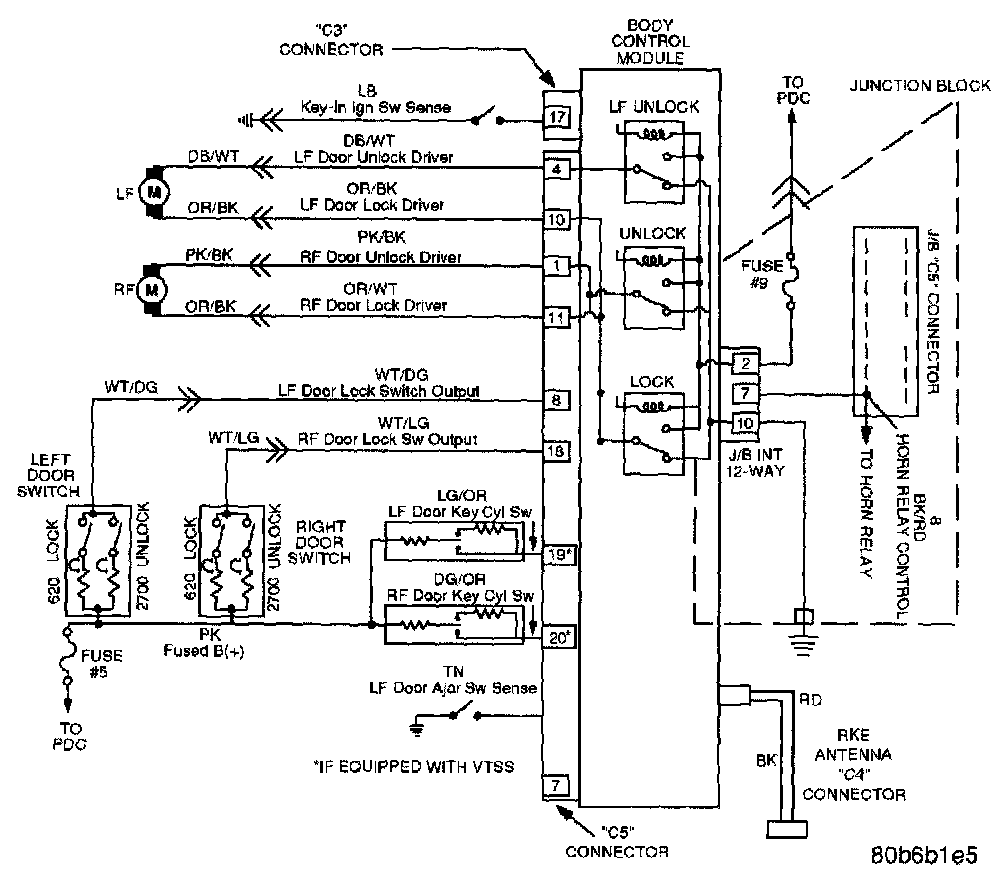

Door Locks W/RKE:
