Accessories and Optional Equipment: Service and Repair

The Instrument Cluster must be removed to service the Vehicle Theft Security System LED.

REMOVAL

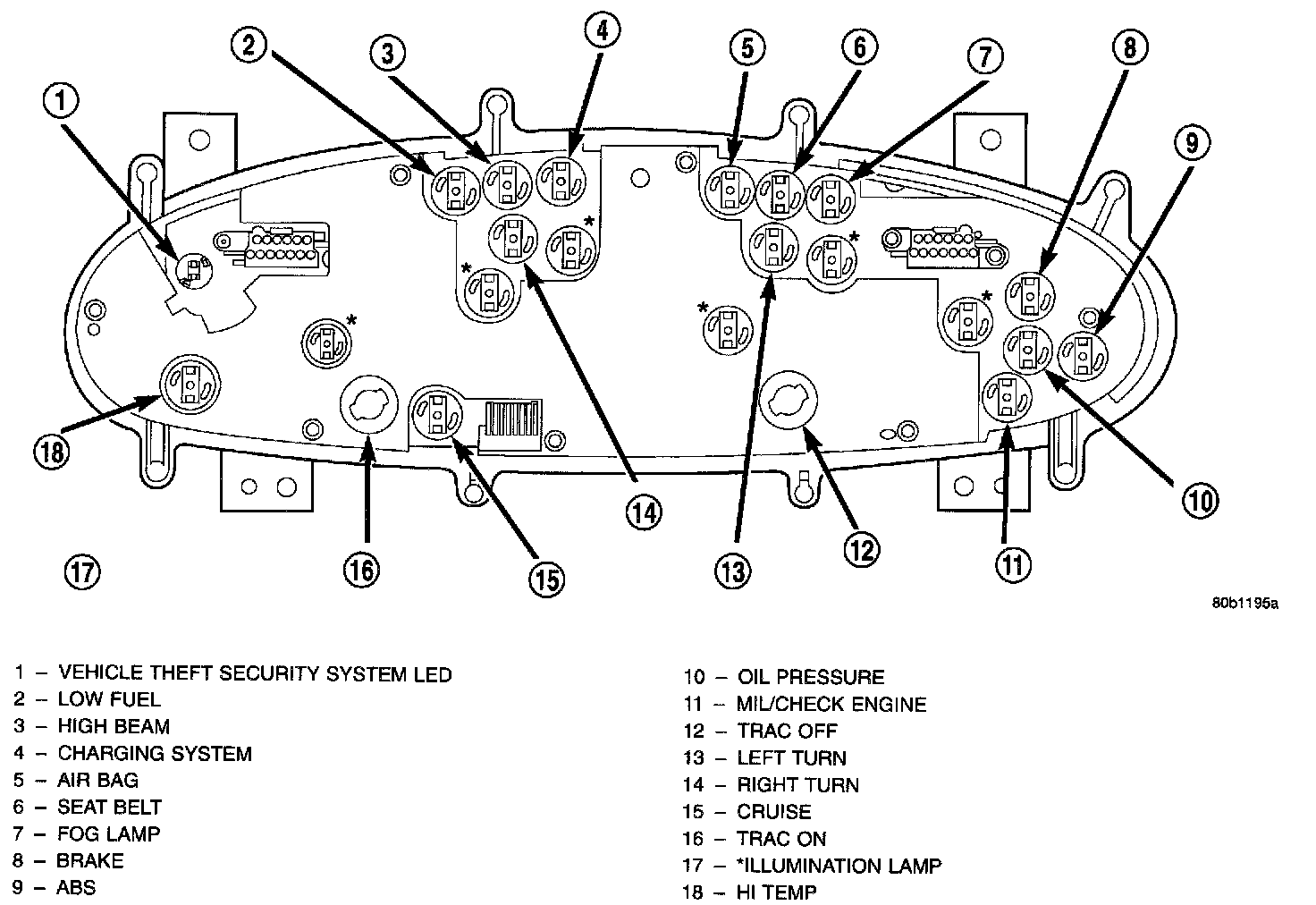

Lamp Location:

1. Disconnect Vehicle Theft I Security System LED socket assembly from the printed circuit board.
2. Rotate LED socket counter clockwise and remove from printed circuit board.

INSTALLATION
For installation, reverse the above procedures.
