Rear Quarter Panel Speaker(s) Replacement

CAUTION: Do not operate the radio with speaker leads detached. Damage to the output devices may result.

REMOVAL

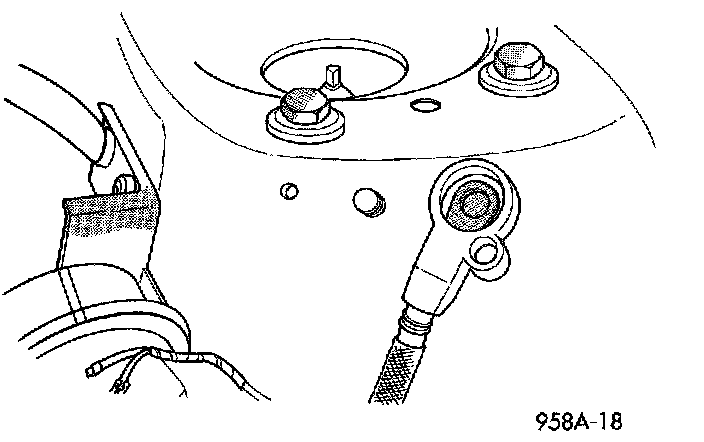

Battery Negative Remote Cable Removal:

1. Disconnect and isolate the battery negative remote cable.
2. Remove rear quarter panel speaker grille.

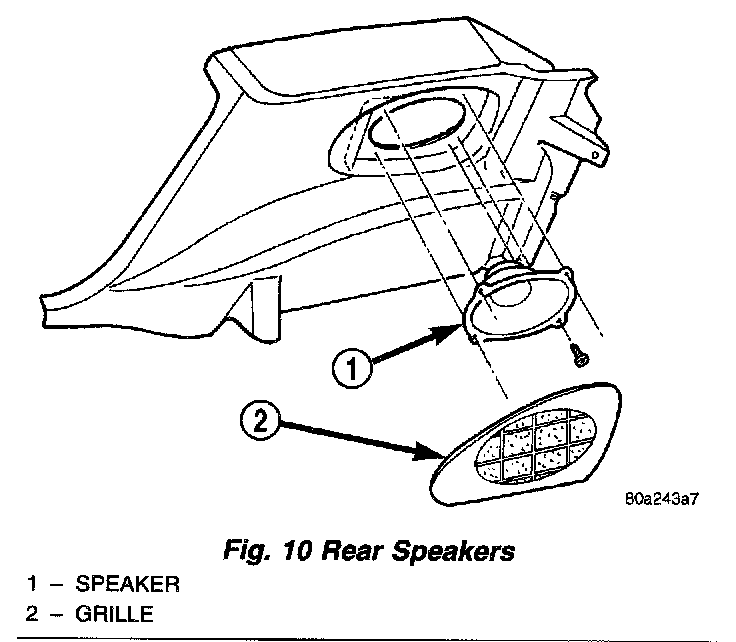

Rear Speakers:

3. Remove four retaining screws.
4. Disconnect wire connector and remove speaker.

INSTALLATION
For installation reverse the above procedures. Be sure that the wire connectors are facing rearward in vehicle, and the screws are tightened.
