Antenna Mast: Service and Repair

REMOVAL
1. Inside trunk, pull the right side trunk liner aside.
2. Unplug antenna lead from base of antenna body.
3. Remove antenna mast by unscrewing mast from antenna body. Use tape (electrical) to prevent scratching of the mast base.

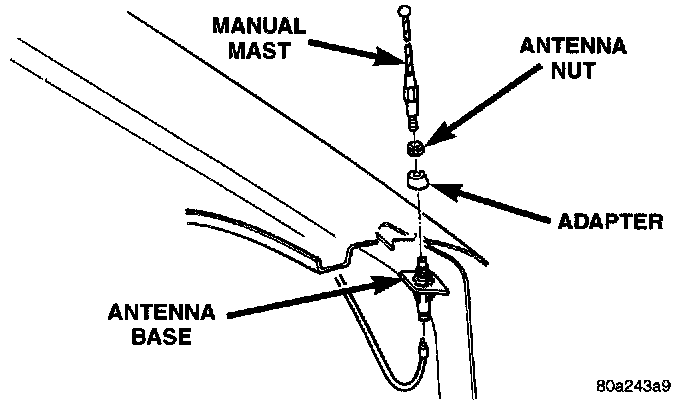

Antenna Mounting Removal:

4. Remove cap nut and adapter.
5. Pull antenna body down through the quarter panel and remove.

INSTALLATION
For installation, reverse the above procedures. Check that the locating tab is inline with the slot in the body before installing antenna. Tighten cap nut to 7 Nm (65 in. lbs.).
