P1798

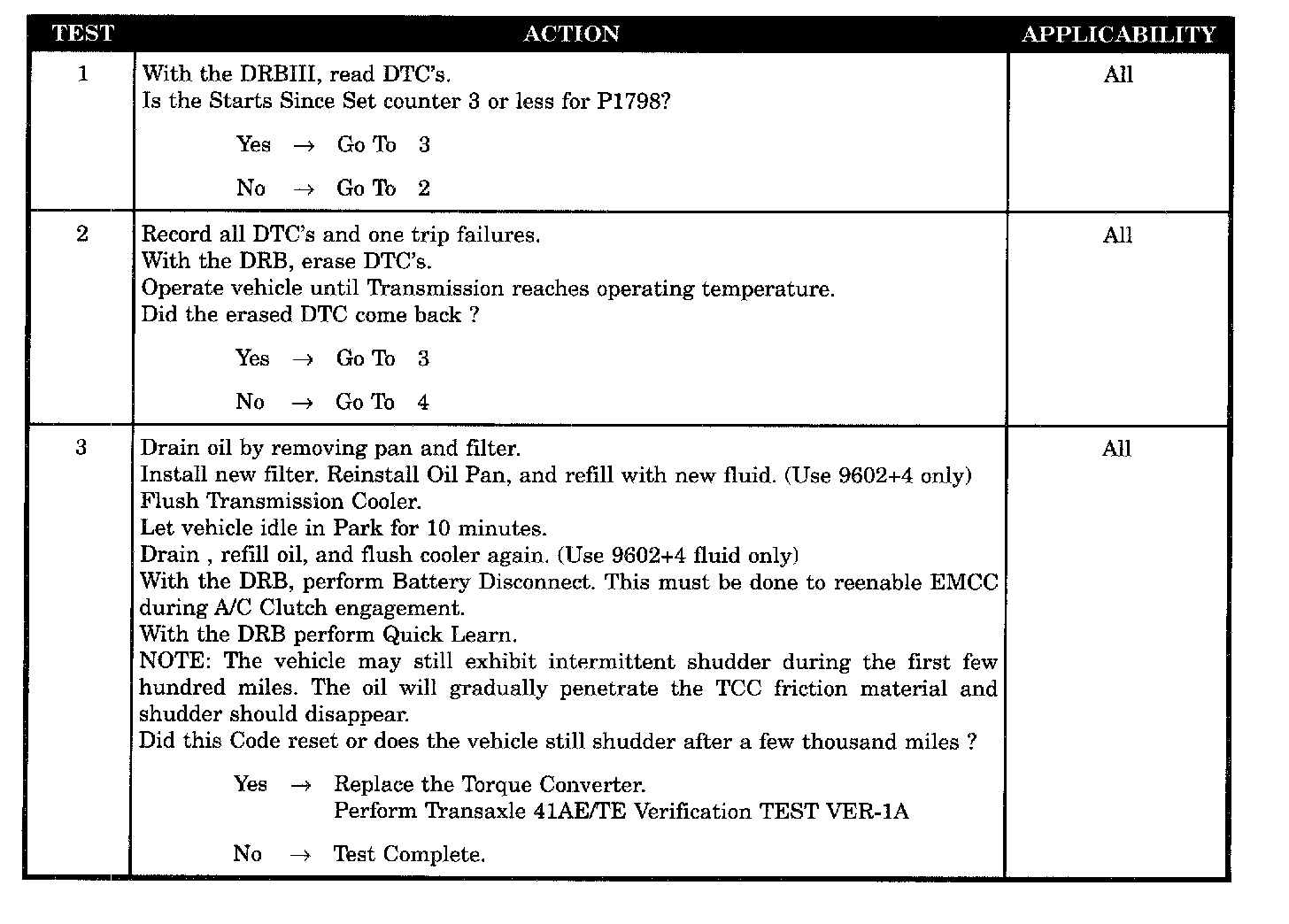

Test 1 Through 3:

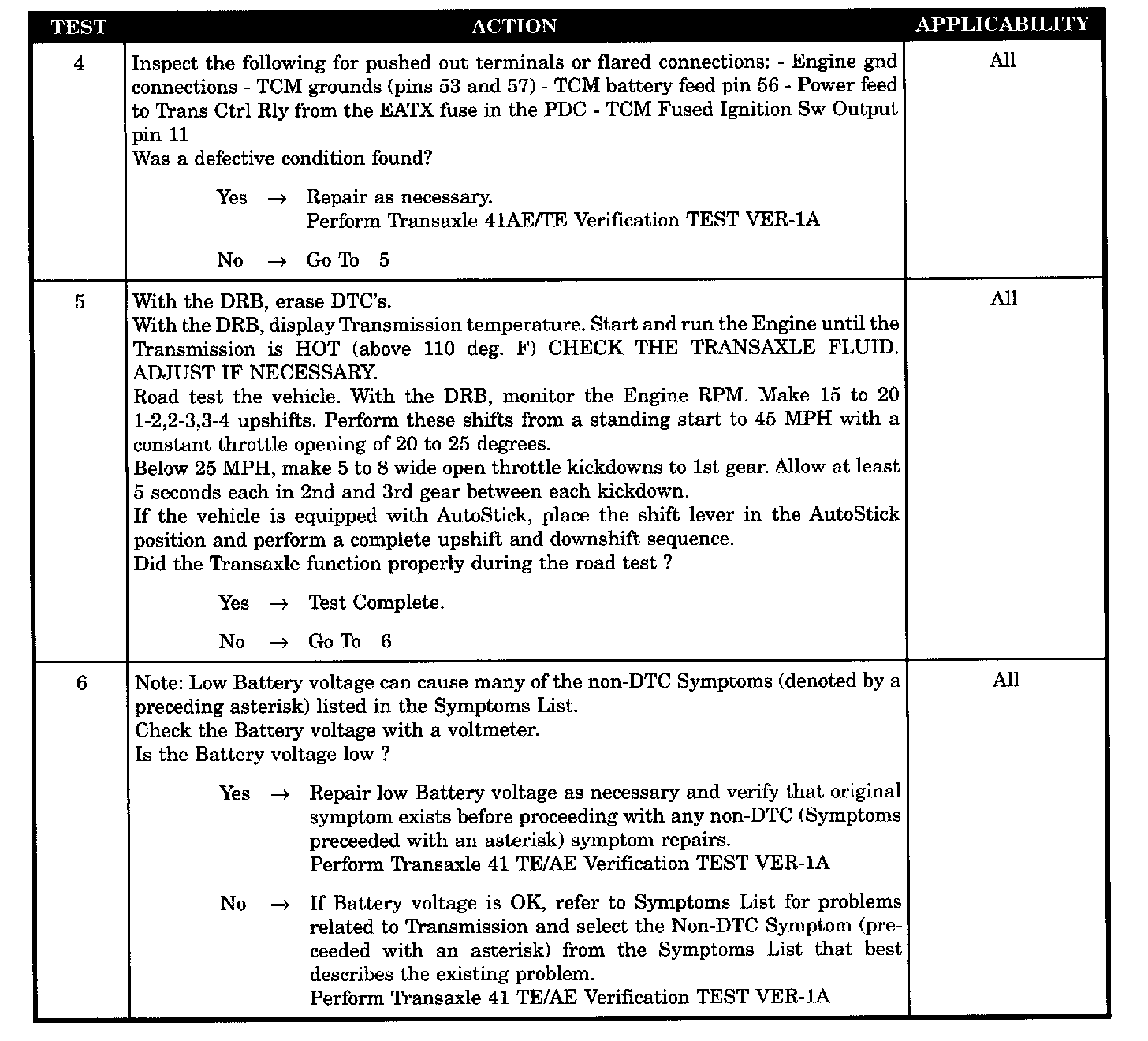

Test 4 Through 6:

Symptom:
P1798-WORN OUT/BURNT TRANSAXLE FLUID

When Monitored and Set Condition:
P1798-WORN OUT/BURNT TRANSAXLE FLUID

When Monitored:
Each transition from a full torque converter lock to partial torque converter lock for A/C bump prevention.

Set Condition:
This code will set when vehicle shudder is detected during partial lockup. The vehicle shudder event must occur 20 times to set the code.

POSSIBLE CAUSES
TORQUE CONVERTER SHUDDER
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
INTERMITTENT CODE P1798
