P1796

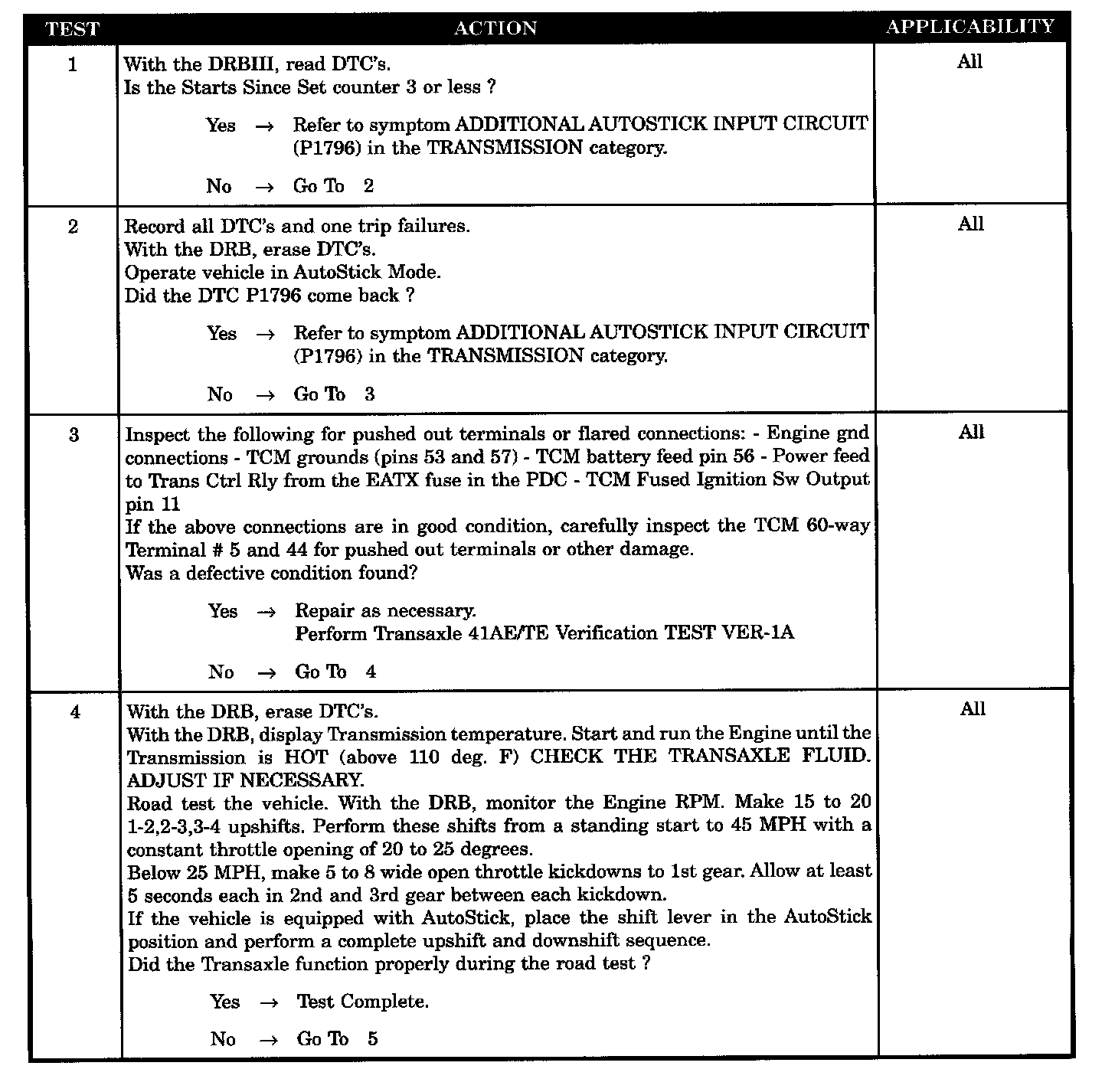

Test 1 Through 4:

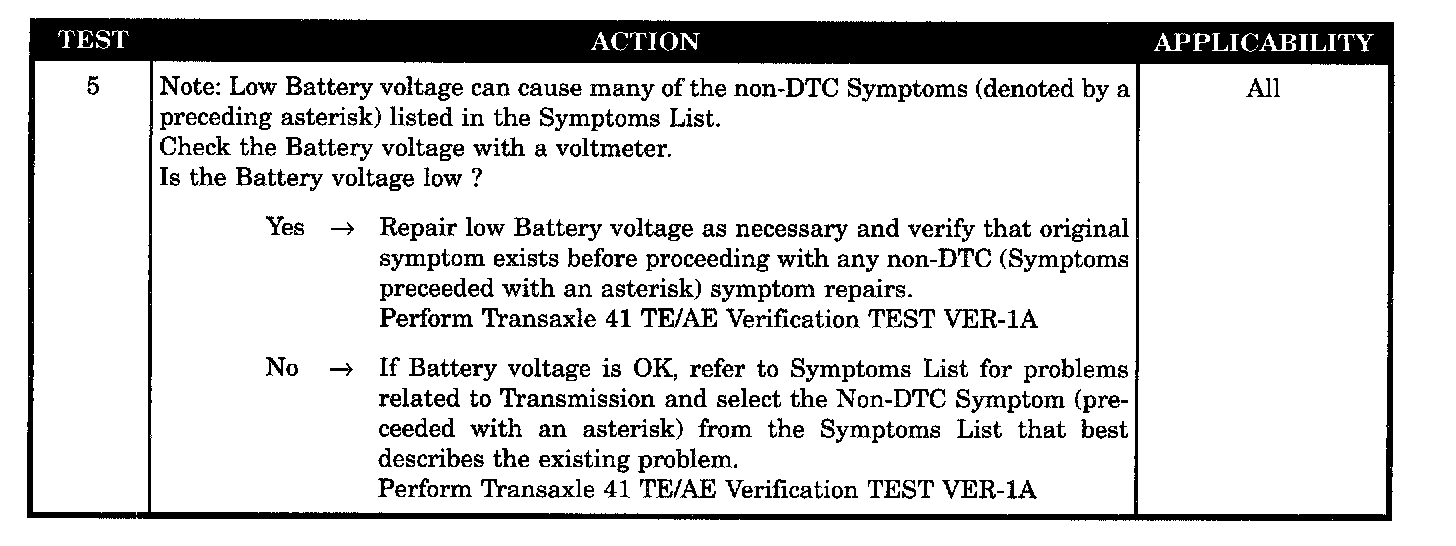

Test 5:

Symptom:
P1796 - AUTOSTICK INPUT CIRCUIT

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
INTERMITTENT CODE P1796

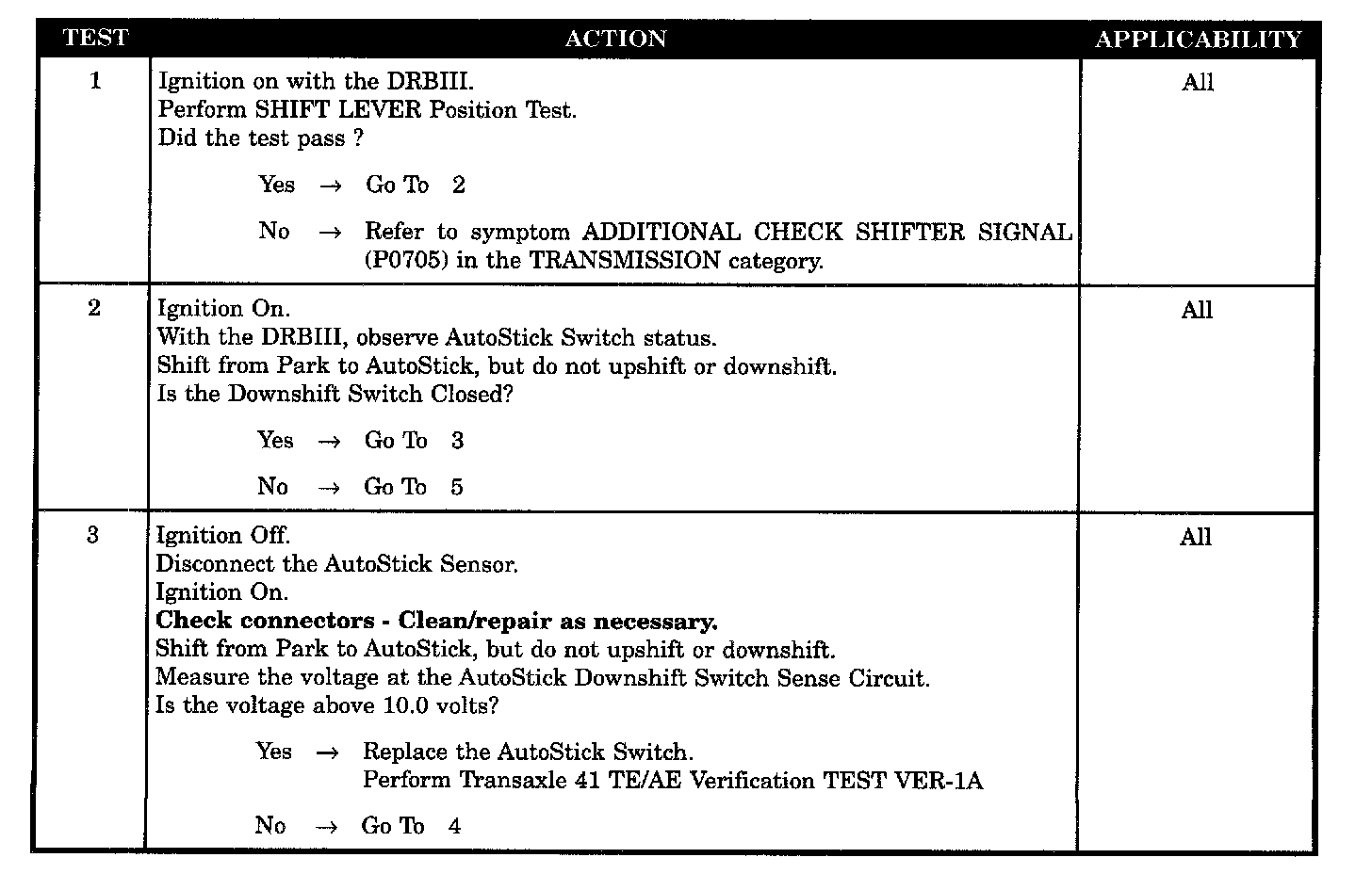

Test 1 Through 3:

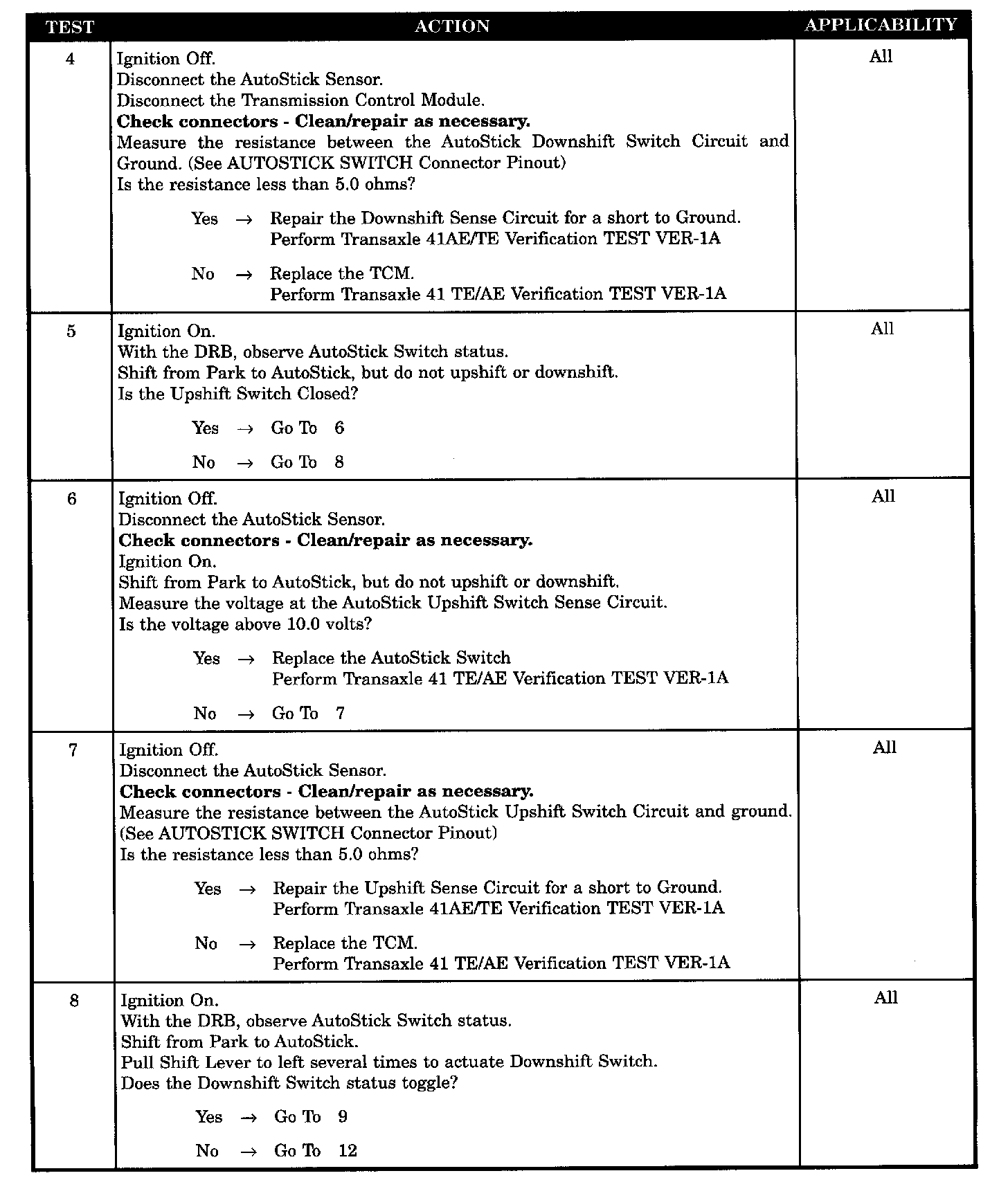

Test 4 Through 8:

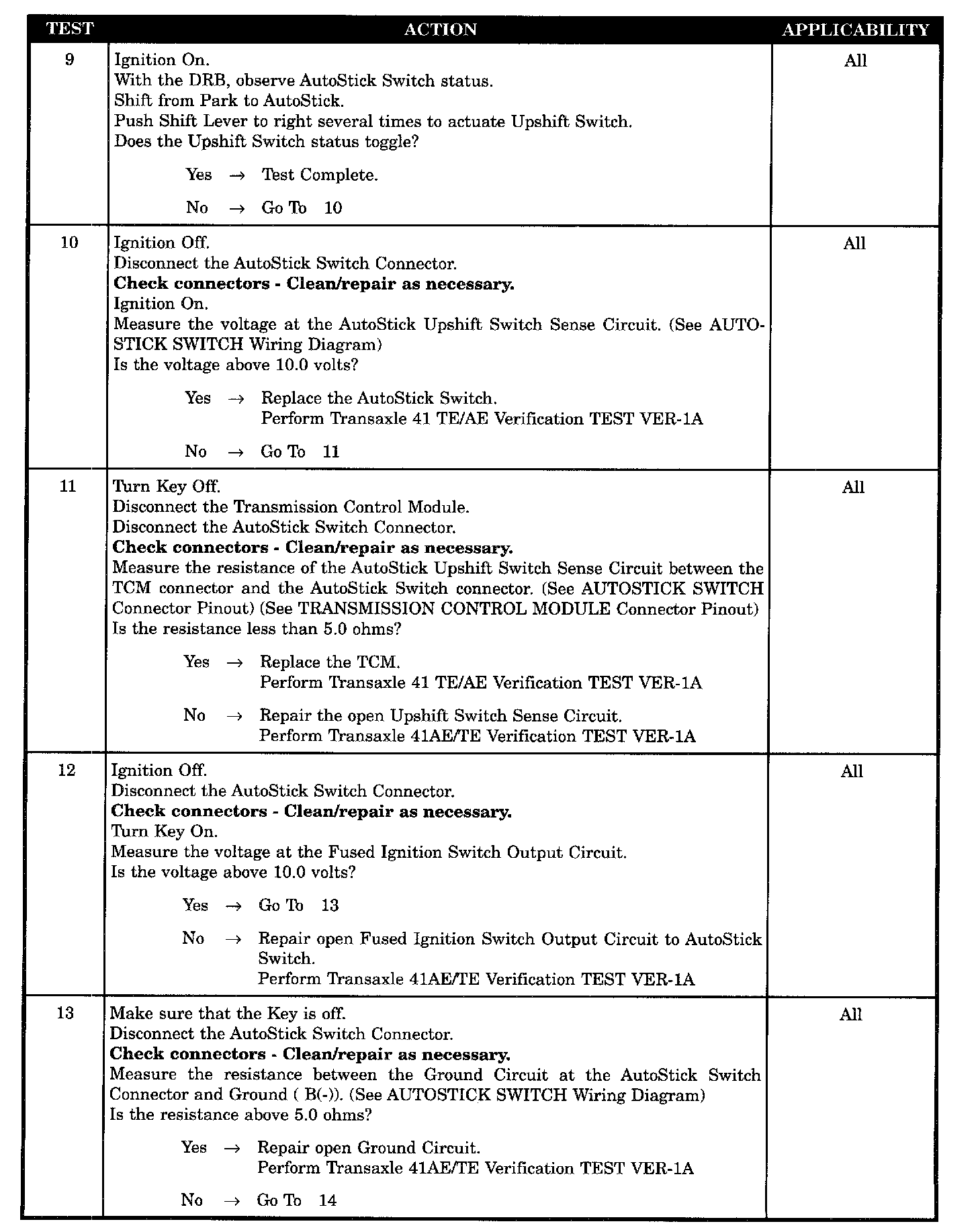

Test 9 Through 13:

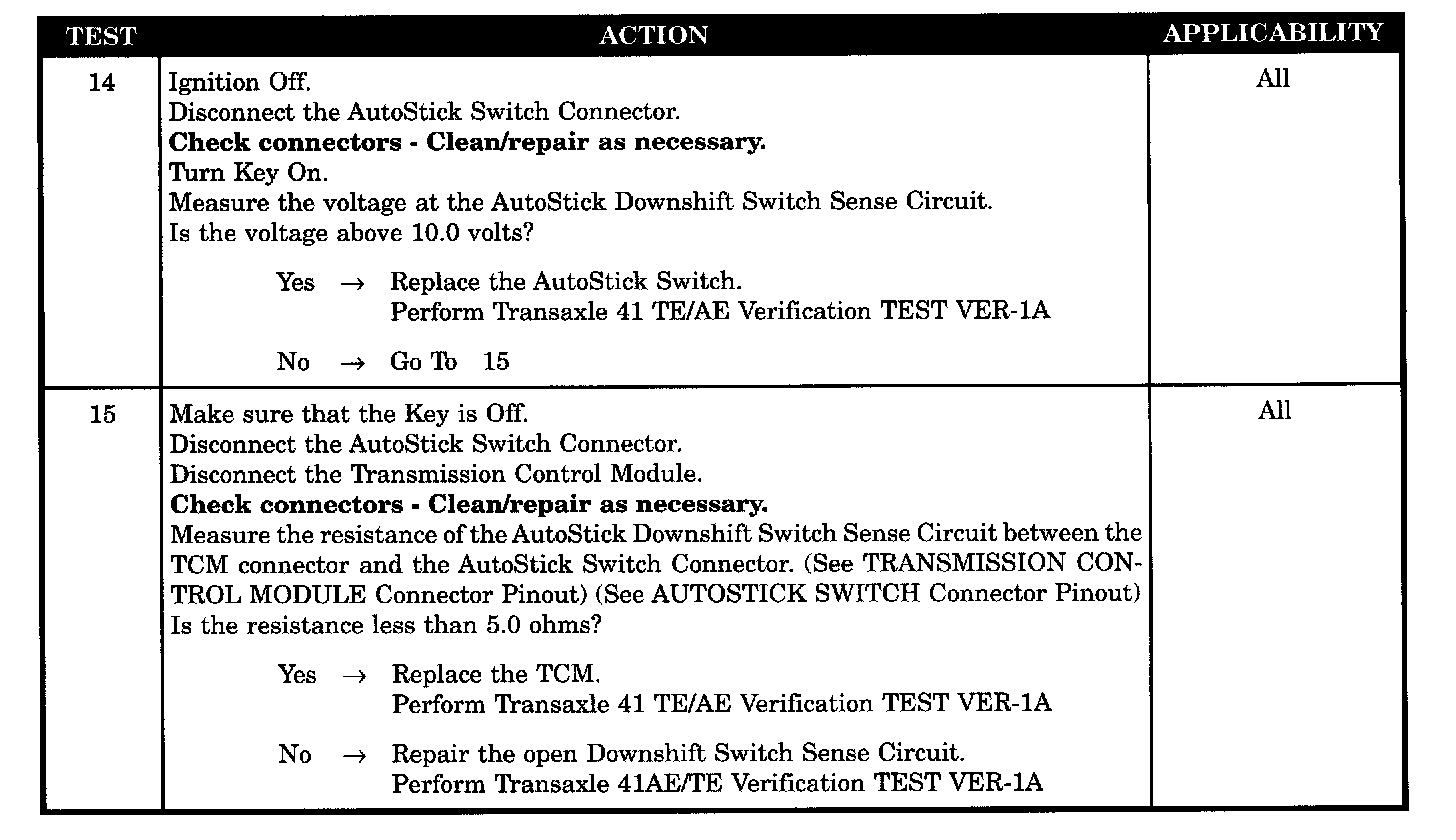

Test 14 Through 15:

Symptom:
ADDITIONAL AUTOSTICK INPUT CIRCUIT (P1796)

POSSIBLE CAUSES
GROUND CIRCUIT OPEN
FUSED IGNITION SWITCH OUTPUT CIRCUIT TO AUTOSTICK SWITCH OPEN
AUTOSTICK DOWNSHIFT SWITCH STUCK CLOSED
AUTOSTICK DOWNSHIFT SWITCH STUCK OPEN
AUTOSTICK DOWNSHIFT SWITCH SENSE CIRCUIT OPEN
AUTOSTICK UPSHIFT SWITCH STUCK CLOSED
AUTOSTICK UPSHIFT SWITCH STUCK OPEN
DOWNSHIFT SENSE SHORTED TO GROUND
UPSHIFT SENSE SHORTED TO GROUND
TCM AUTOSTICK DOWNSHIFT SENSE OPEN
TCM AUTOSTICK DOWNSHIFT SENSE SHORTED TO GROUND
TCM AUTOSTICK UPSHIFT SENSE OPEN
TCM AUTOSTICK UPSHIFT SENSE SHORTED TO GROUND
AUTOSTICK UPSHIFT SWITCH SENSE CIRCUIT OPEN
