P1795

Test 1 Through 3:

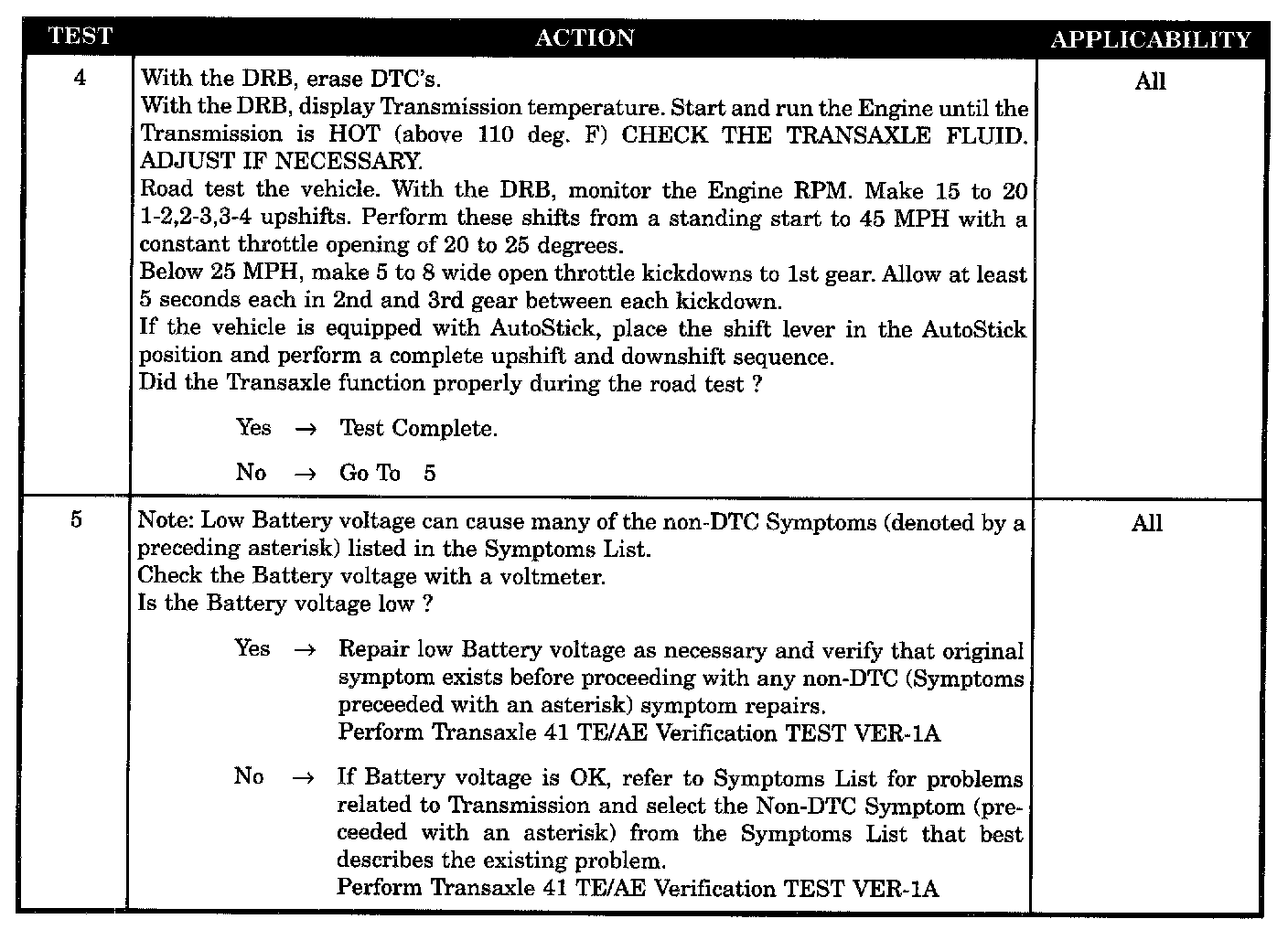

Test 4 Through 6:

Symptom:
P1795-INTERNAL TRANS CONTROLLER

When Monitored and Set Condition:
P1795-INTERNAL TRANS CONTROLLER

When Monitored:
After a reset (ignition key turned to the RUN position or after cranking engine).

Set Condition:
Engine model stored in EEPROM is different from data stored in RAM.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
INTERMITTENT CODE P1795
P1795 STARTS SINCE SET COUNTER LESS THAN 3
SETTING DIAGNOSTIC TROUBLE CODE P1795
