P1790

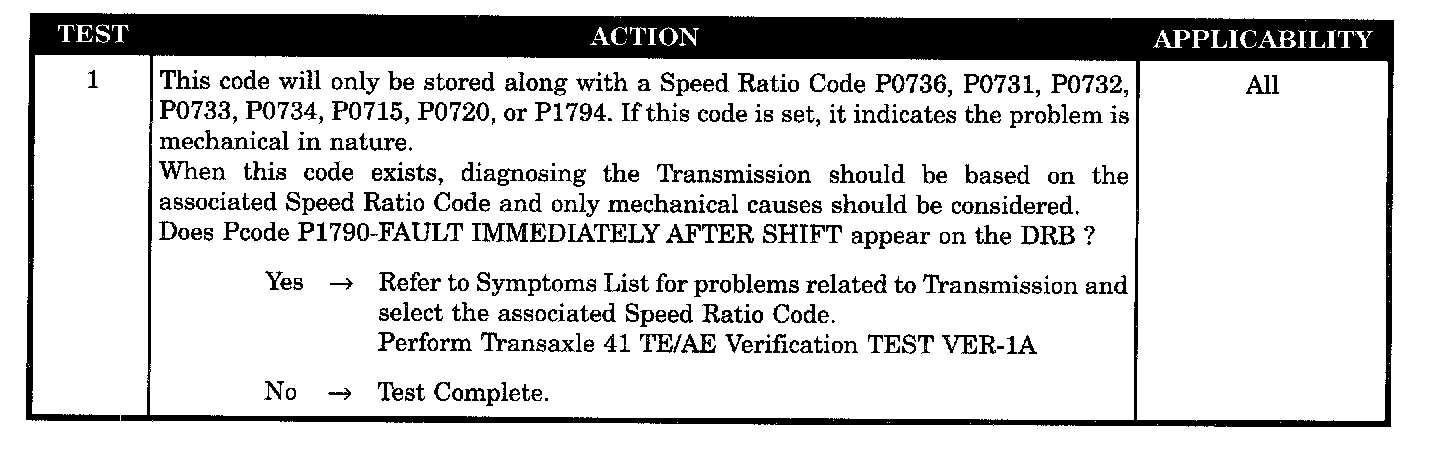

Test 1:

Symptom:
P1790 - FAULT IMMEDIATELY AFTER SHIFT

When Monitored and Set Condition:
P1790 - FAULT IMMEDIATELY AFTER SHIFT

When Monitored:
After a Speed Ratio error is stored.

Set Condition:
This code is set if the associated Speed Ratio Code is stored within 1.3 seconds after a shift.

POSSIBLE CAUSES
PCODE 1790 MECHANICAL PROBLEM
