P1787

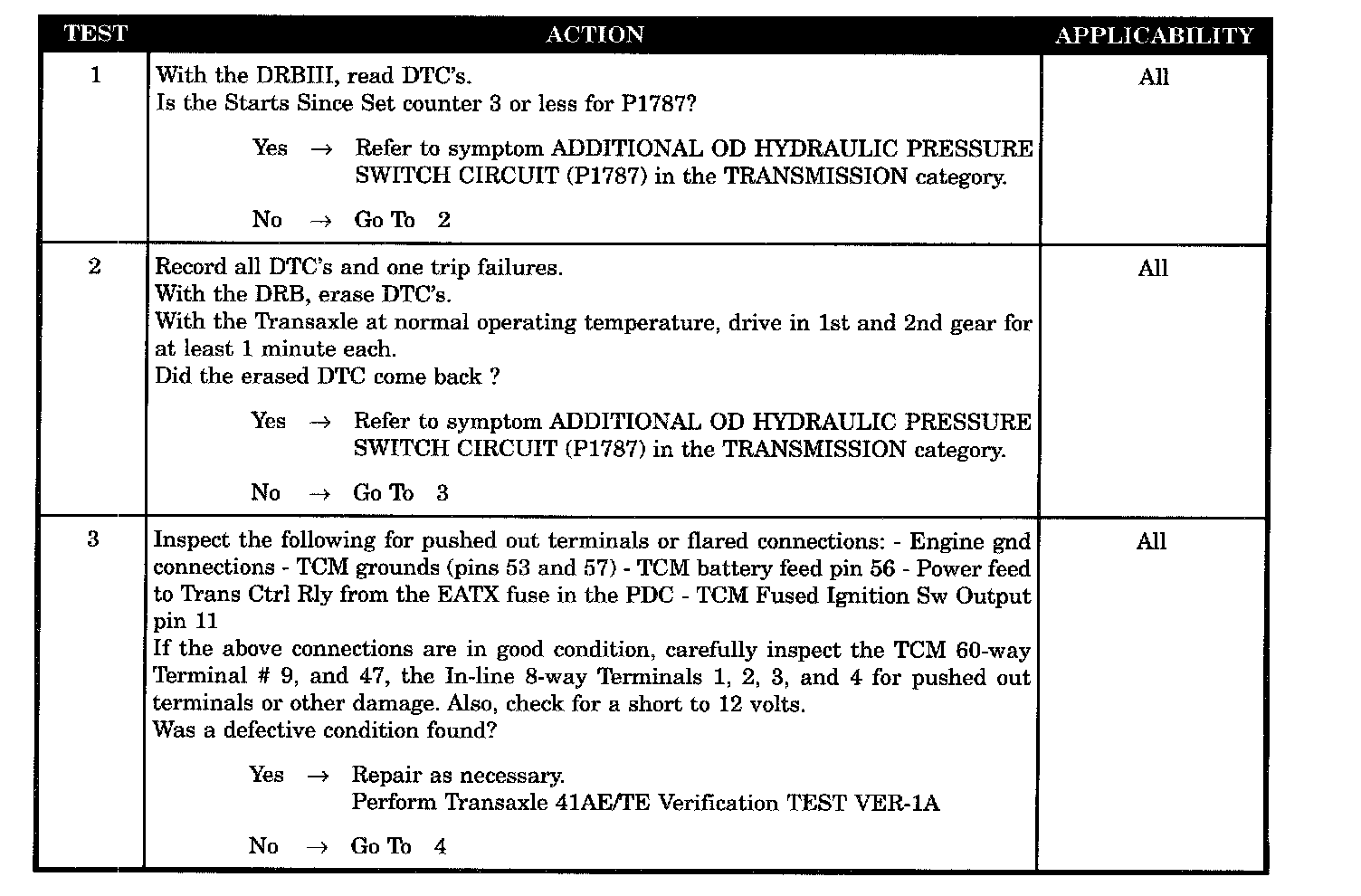

Test 1 Through 3:

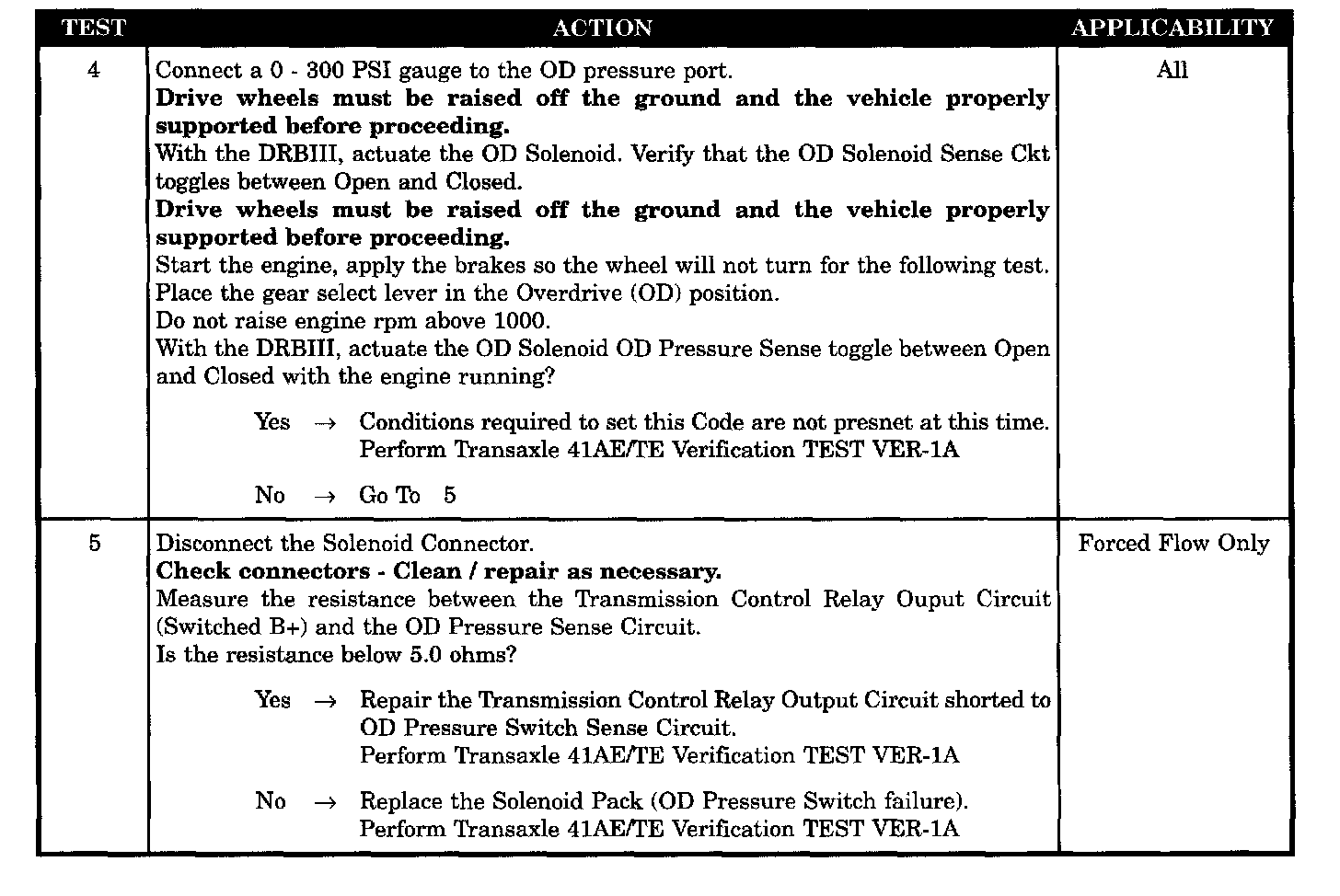

Test 4 Through 5:

Symptom
P1787-OD HYDRAULIC PRESSURE SWITCH CIRCUIT

When Monitored and Set Condition:
P1787-OD HYDRAULIC PRESSURE SWITCH CIRCUIT

When Monitored:
In 1st, 2nd, or 3rd gear with engine speed above 1000 RPM shortly after a shift and every minute there after.

Set Condition:
TCM momentarily turns on element pressure to the OD clutch circuit to identify that the pressure switch closes. If the switch does not close the first time it is retested again. If the switch does not close on the second test, the code is set.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
INTERMITTENT CODE P1787

Test 1 Through 3:

Test 4 Through 5:

Symptom:
ADDITIONAL OD HYDRAULIC PRESSURE SWITCH CIRCUIT (P1787)

POSSIBLE CAUSES
CONDITIONS REQUIRED TO SET THIS CODE ARE NOT PRESENT AT THIS TIME
SHORT BETWEEN TCR OUTPUT CIRCUIT AND OD PRESSURE SWITCH SENSE CIRCUIT
OD SOLENOID FAILURE
OD SOLENOID DEFECTIVE
