P1775

Test 1 Through 3:

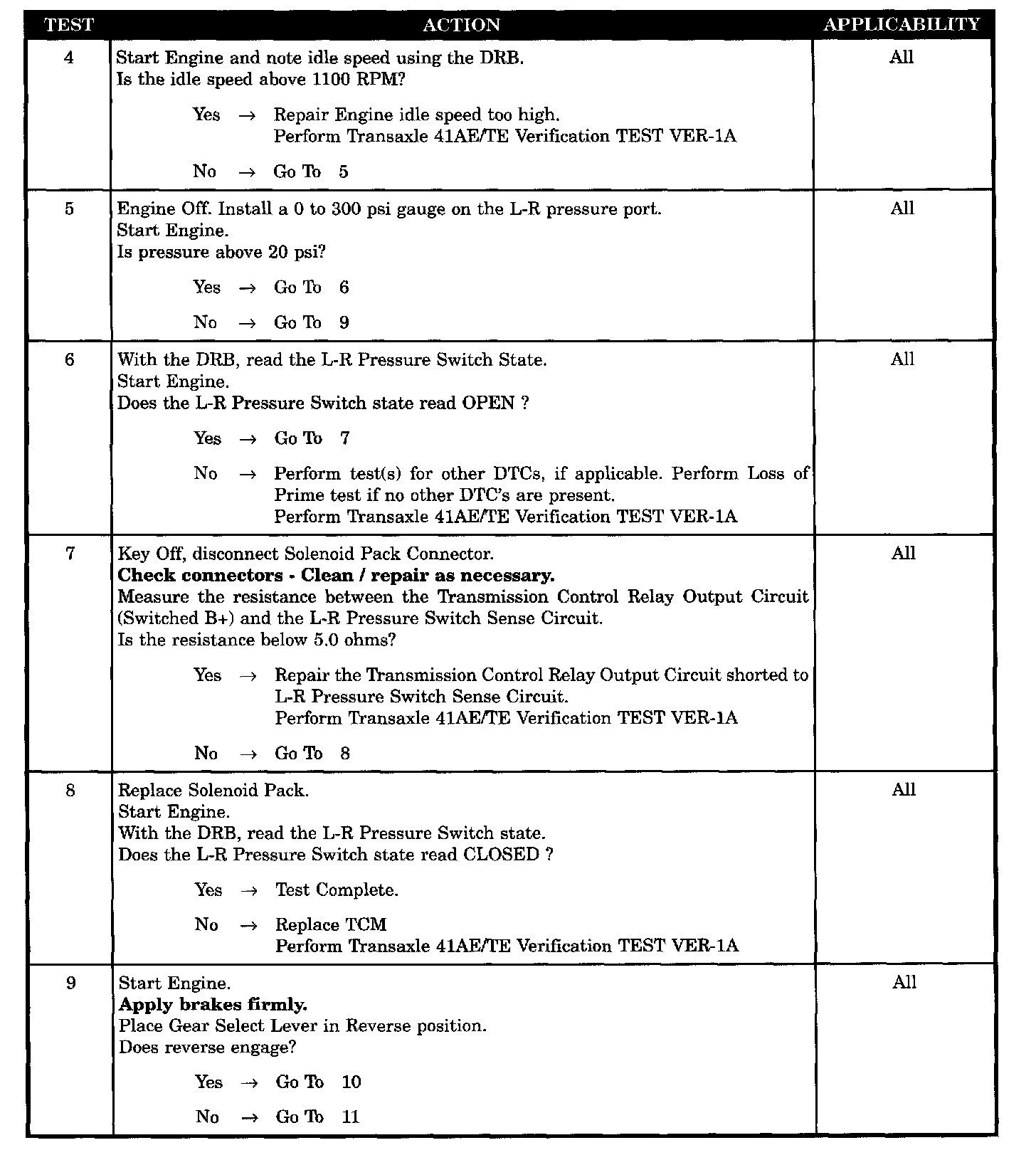

Test 4 Through 9:

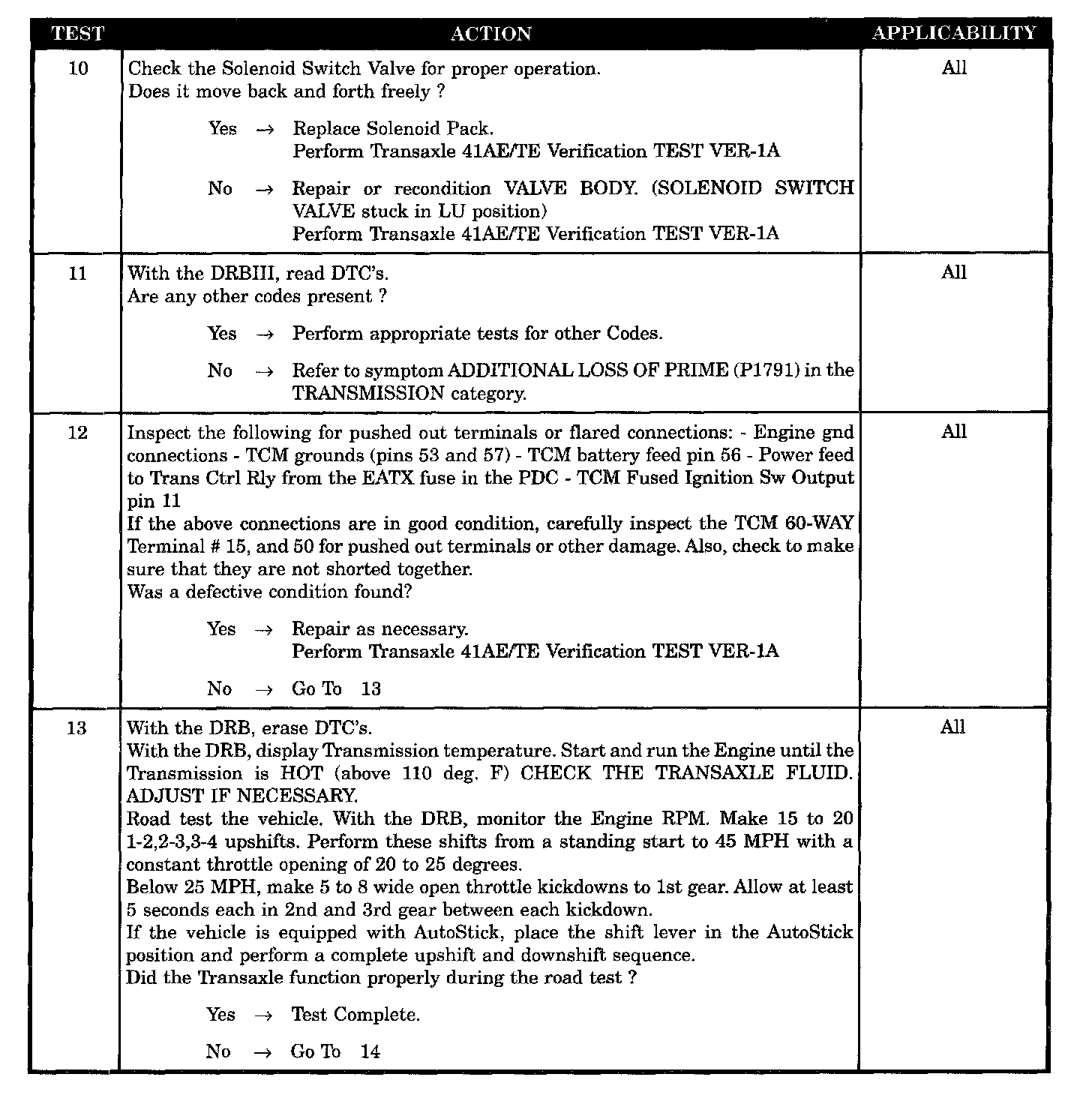

Test 10 Through 13:

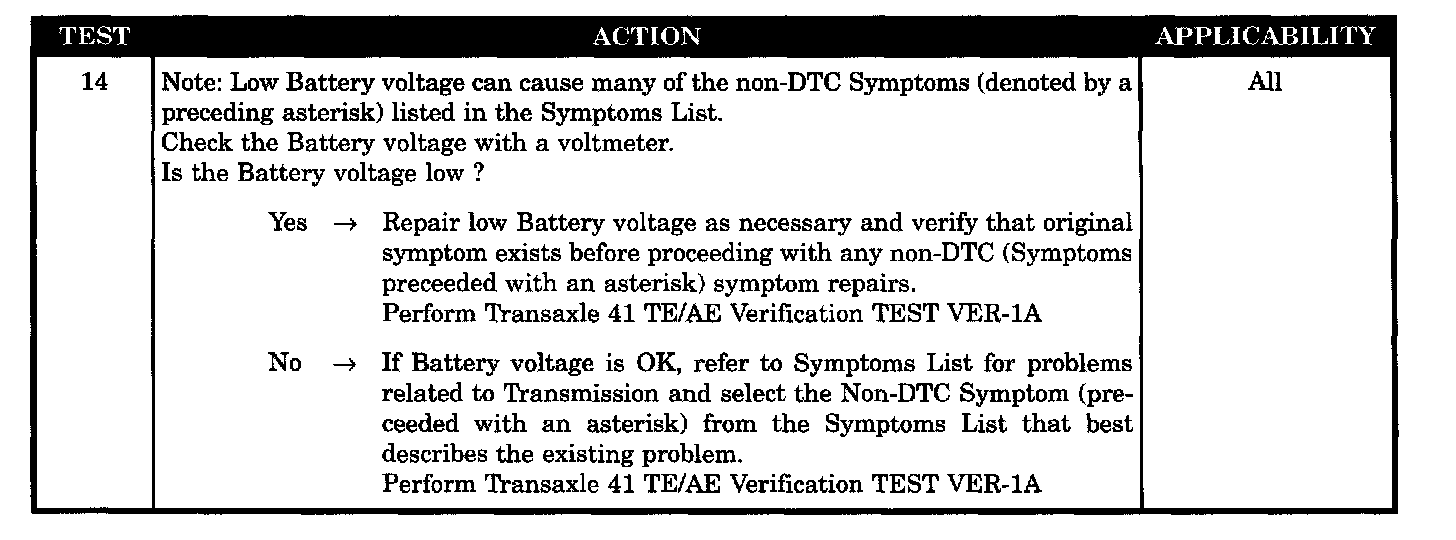

Test 14:

Symptom:
P1775-SOLENOID SWITCH LATCHED IN TCC POSITION

When Monitored and Set Condition:
P1775-SOLENOID SWITCH LATCHED IN TCC POSITION

When Monitored:
During an attempted shift into 1st gear.

Set Condition:
The code is set if three consecutive unsuccessful attempts are made to get into first gear in one given key start.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
OTHER CODES PRESENT
TRANS, CONTROL RELAY OUTPUT CKT SHORTED TO L-R PRESSURE SWITCH SENSE CKT
TCM L-R PRESSURE SWITCH SENSE INPUT DEFECTIVE
TCM L--R PRESSURE SWITCH OPEN
TRANSMISSION SOLENOID PACK DEFECTIVE
INTERMITTENT CODE P1775
VALVE BODY ENGINE IDLE TOO HIGH
VALVE BODY SOLENOID SWITCH STUCK IN LOCK-UP
