P1767

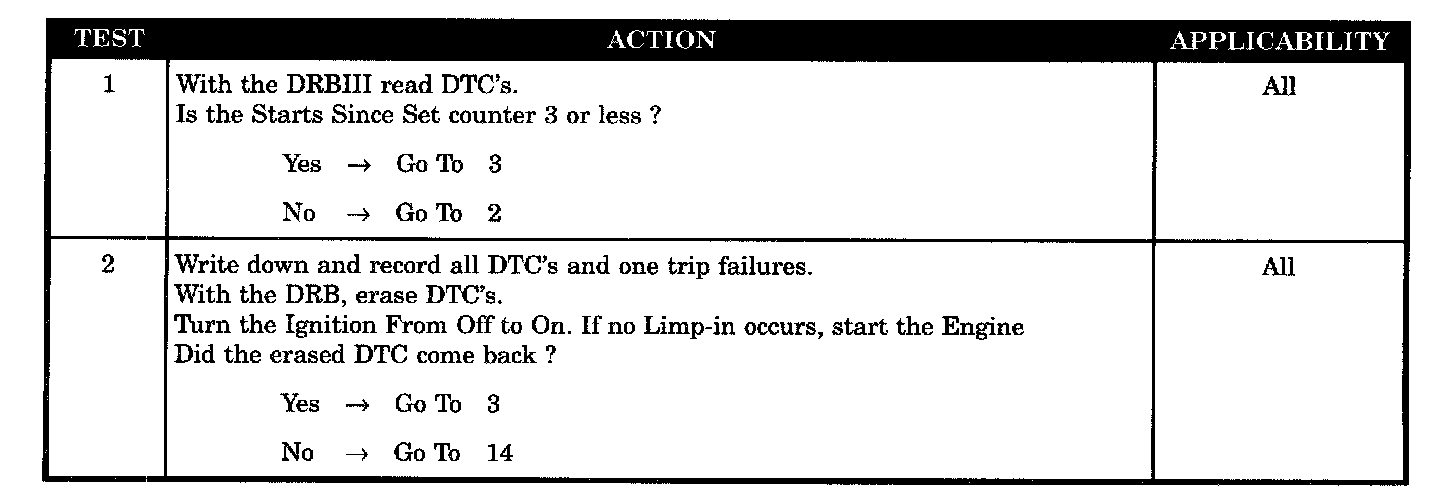

Test 1 Through 2:

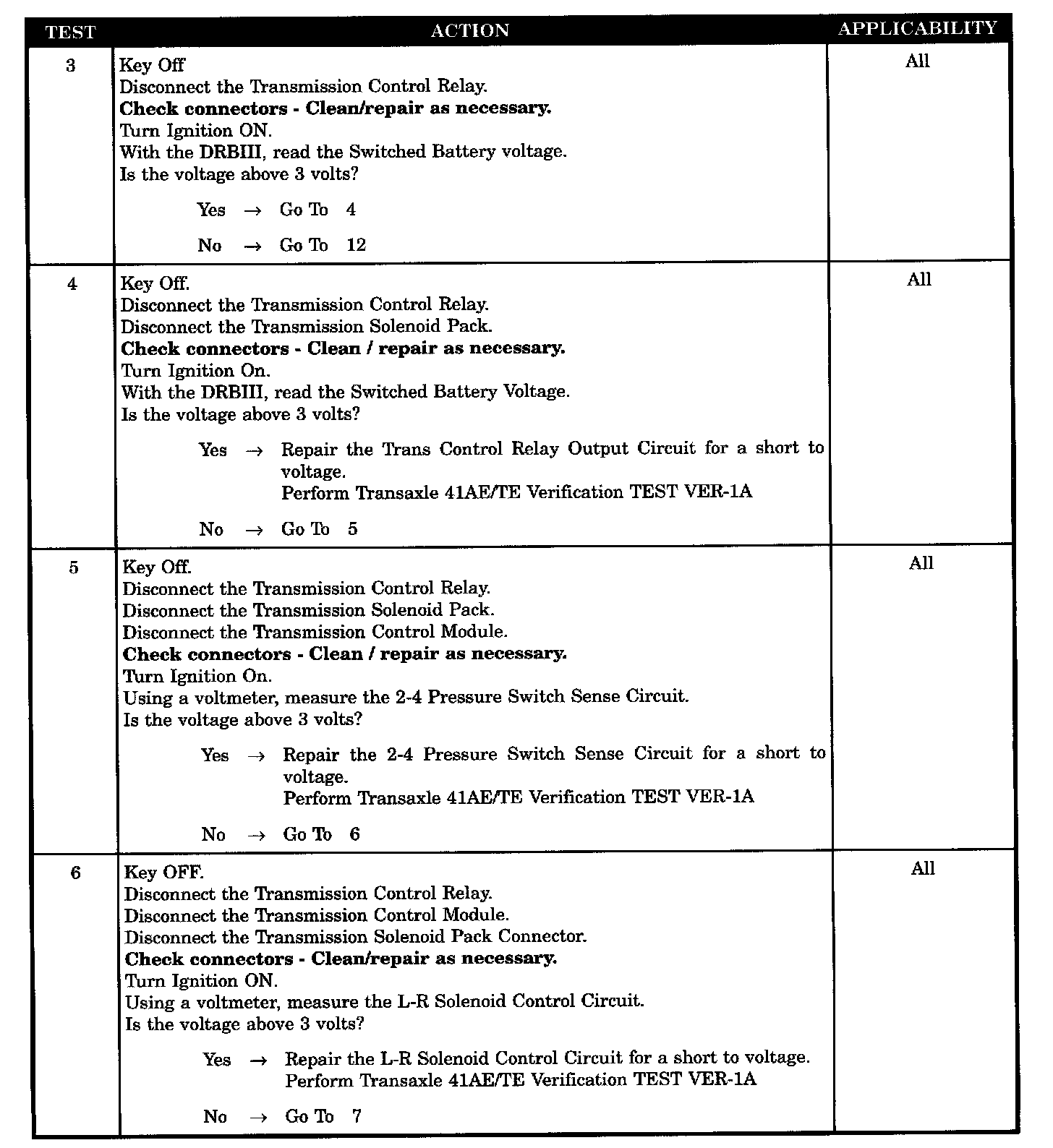

Test 3 Through 6:

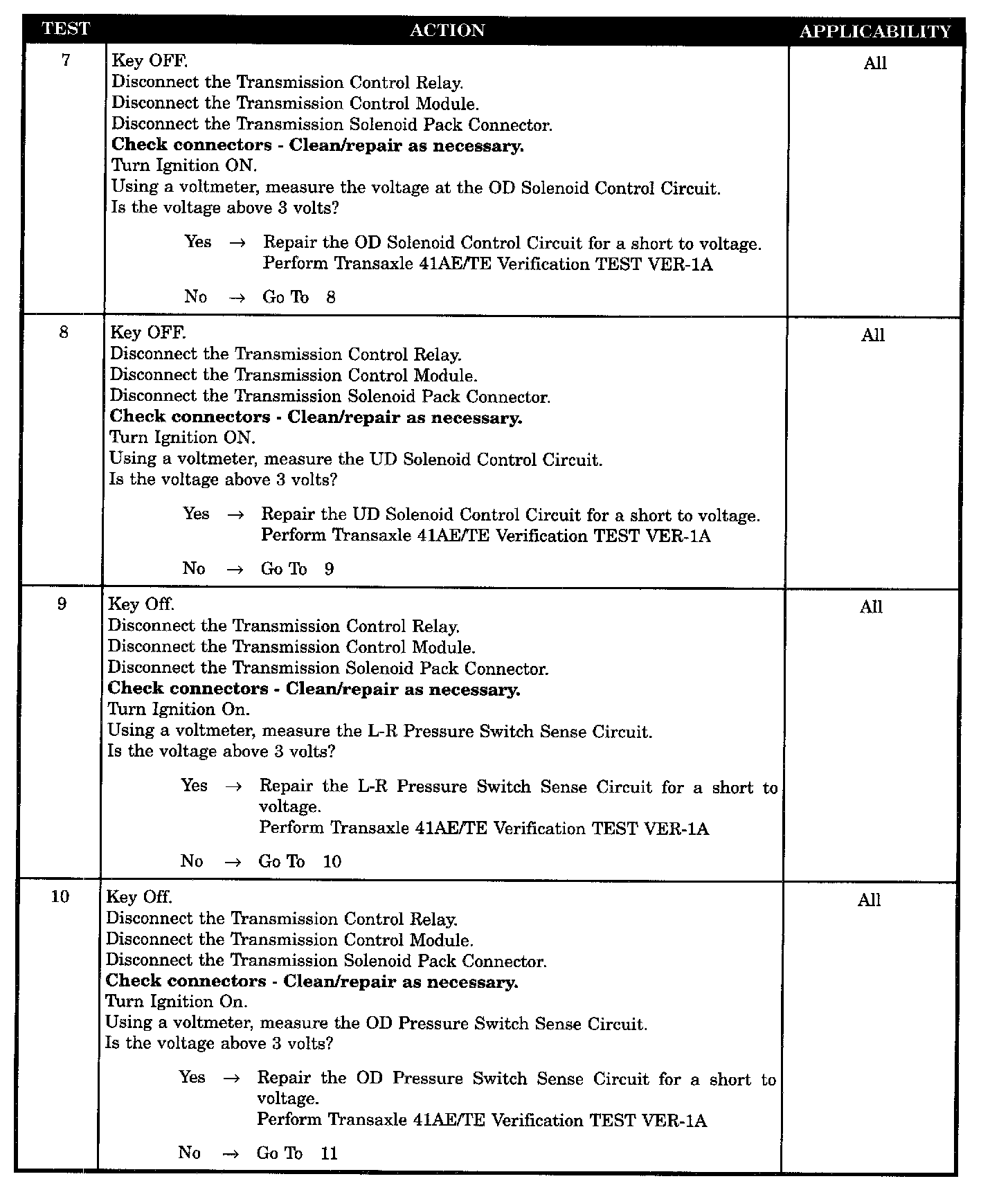

Test 7 Through 10:

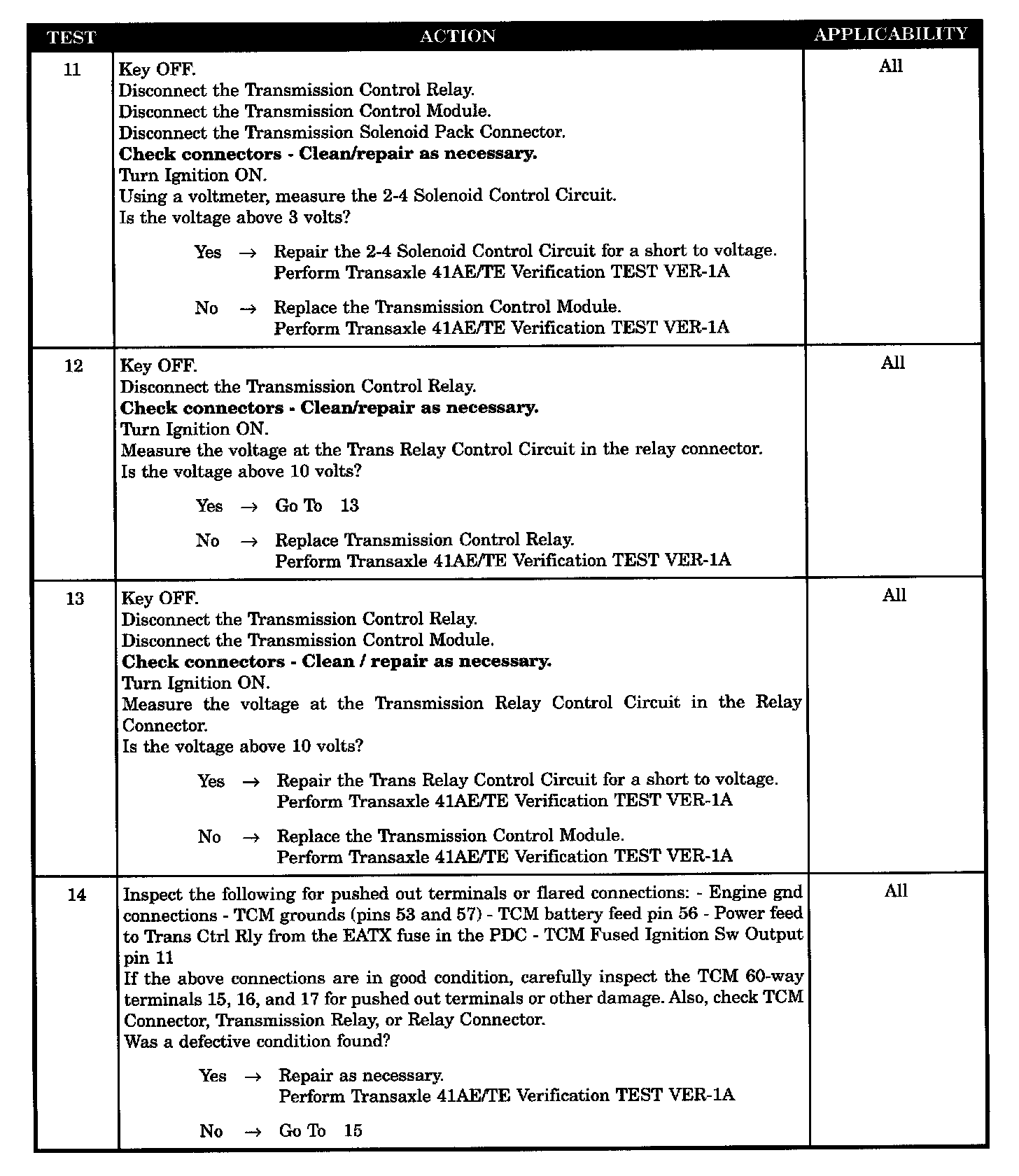

Test 11 Through 14:

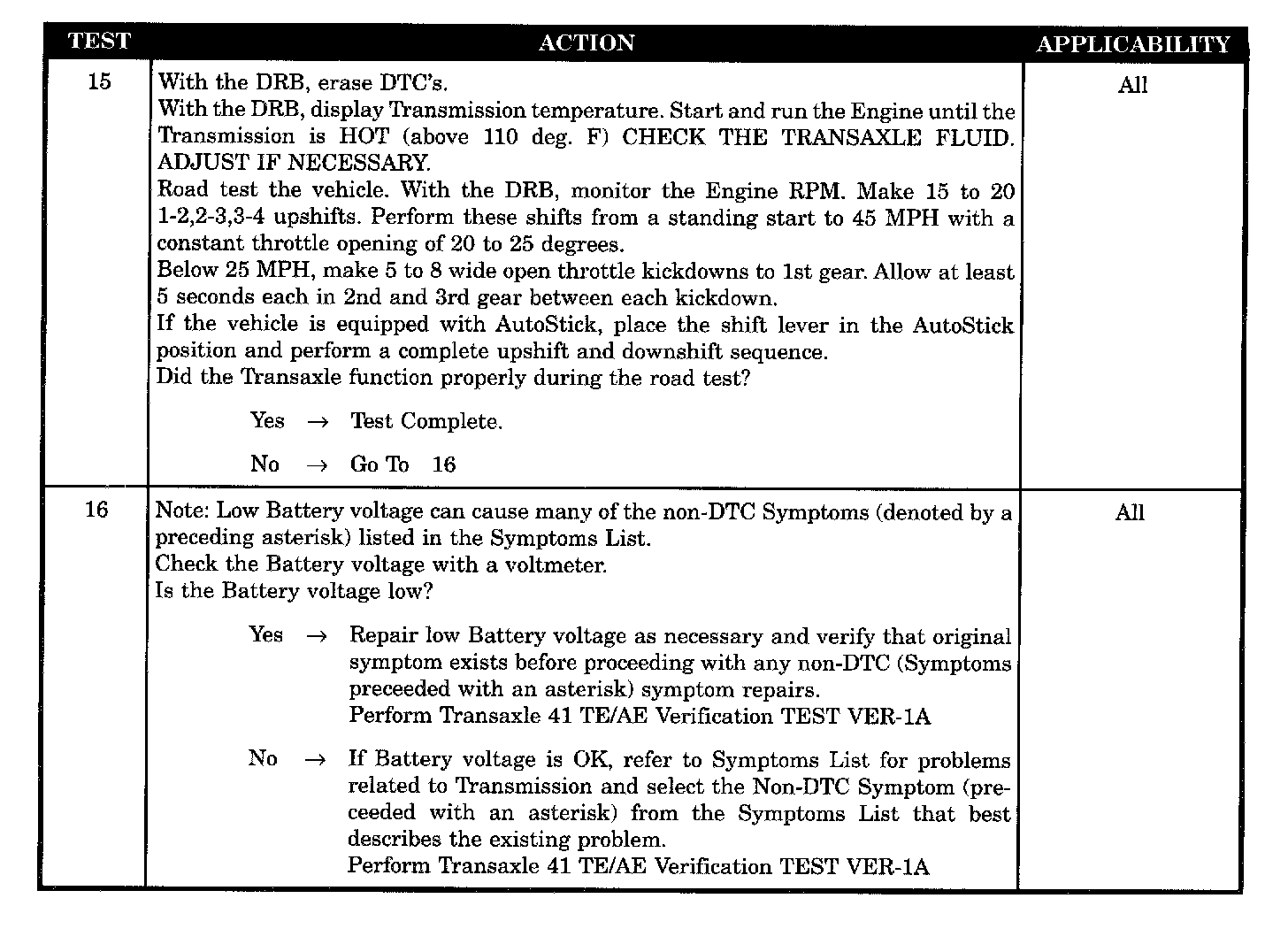

Test 15 Through 16:

Symptom:
P1767-RELAY OUTPUT ALWAYS ON

When Monitored and Set Condition:
P1767-RELAY OUTPUT ALWAYS ON

When Monitored:
Ignition key is turned from the OFF to RUN position and/or key is turned from the CRANK to the RUN position. Also after a power down.


Set Condition:
The codes sets when the Trans Control Module (TCM) senses greater than 3 volts at the Trans Control Relay Output (switched Battery) terminals of the TCM, prior to the TCM energizing the relay.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
2-4 SOLENOID CONTROL CIRCUIT SHORTED TO VOLTAGE
L-R SOLENOID CONTROL CIRCUIT SHORTED TO VOLTAGE
OD SOLENOID CONTROL CIRCUIT SHORTED TO VOLTAGE
UD SOLENOID CONTROL CIRCUIT SHORTED TO VOLTAGE
2-4 PRESSURE SWITCH SENSE CIRCUIT SHORTED TO VOLTAGE
L-R PRESSURE SENSE CIRCUIT SHORTED TO VOLTAGE
OD PRESSURE SWITCH SENSE CIRCUIT SHORTED TO VOLTAGE
TRANS RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE
TRANS CONTROL RELAY OUTPUT CIRCUIT SHORTED TO VOLTAGE
TRAN13MISSION CONTROL RELAY CONTACTS SHORTED
TCM TRANS RELAY CONTROL STUCK ON
TCM TRANS CONTROL RELAY OUTPUT SENSE VOLTAGE HIGH
INTERMITTENT CODE P1767
