P1716

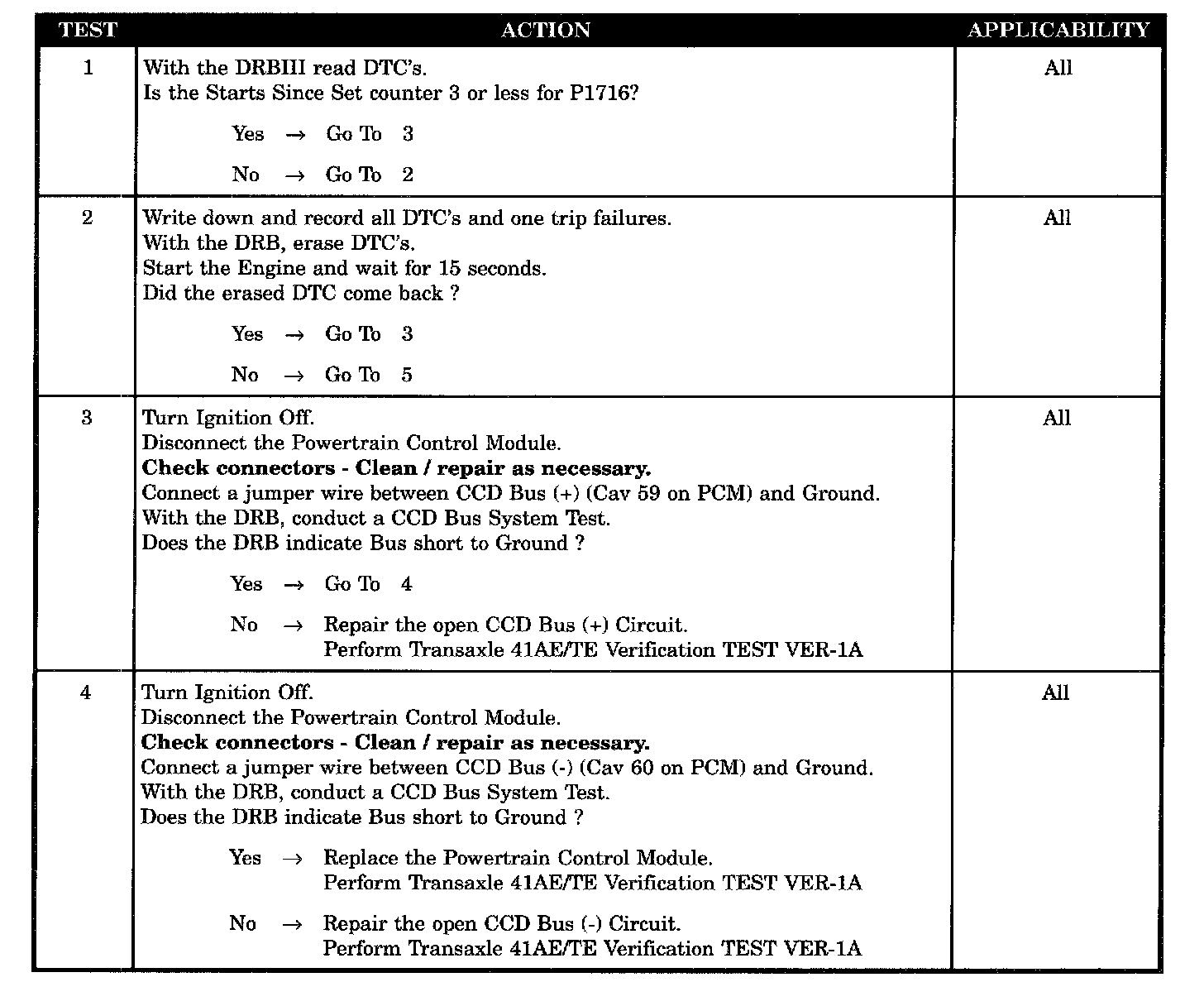

Test 1 Through 4:

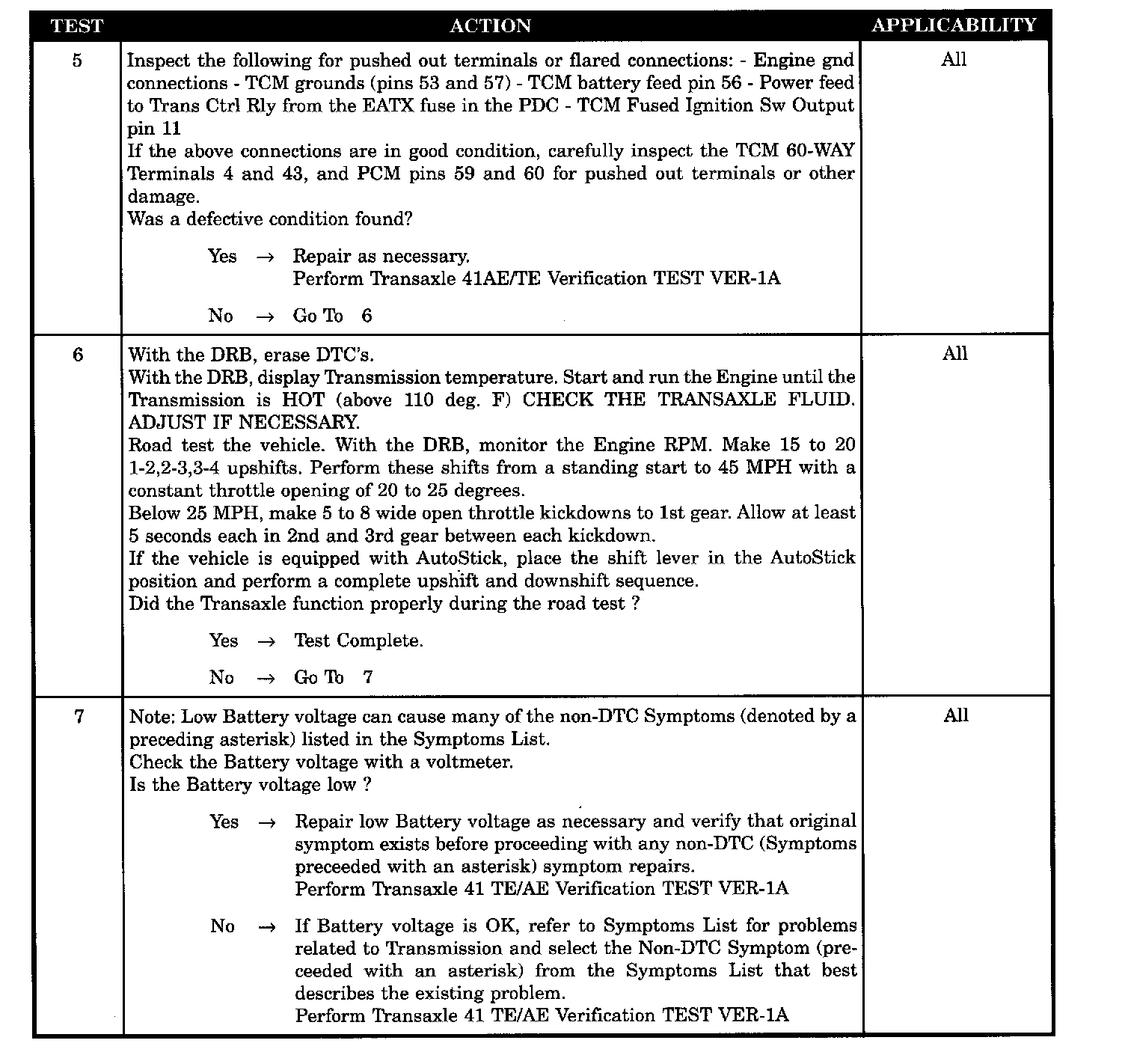

Test 5 Through 7:

Symptom:
P1716 - BUS COMMUNICATION WITH ENGINE MODULE

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
CCD BUS CIRCUIT OPEN
CCD BUS CIRCUIT OPEN
PCM COMMUNICATION WITH TCM DEFECTIVE
INTERMITTENT CODE P1716
