P1697

Tests 1 - 4:

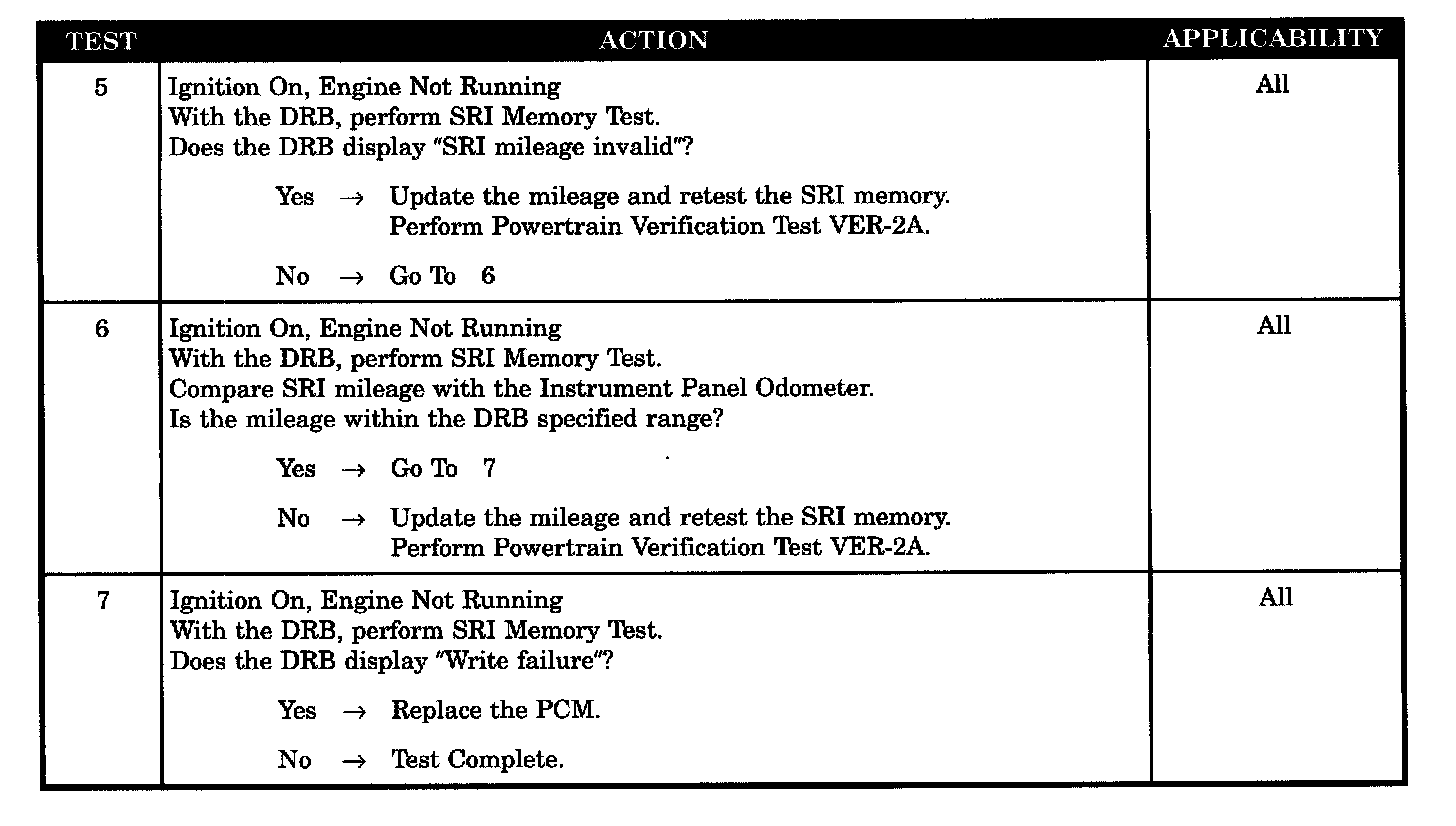

Tests 5 - 7:

SYMPTOM
P1697 - PCM FAILURE SRI MILE NOT STORED

TEST NOTE
This symptom is diagnosed using the test P1696 - PCM FAILURE EEPROM WRITE DENIED

POSSIBLE CAUSES
- PCM defective "write refused"
- SRI memory mileage within DRB specified range
- SRI memory "SRI mileage invalid"
- SRI memory needs updating
- PCM defective "write failure"
