P1695

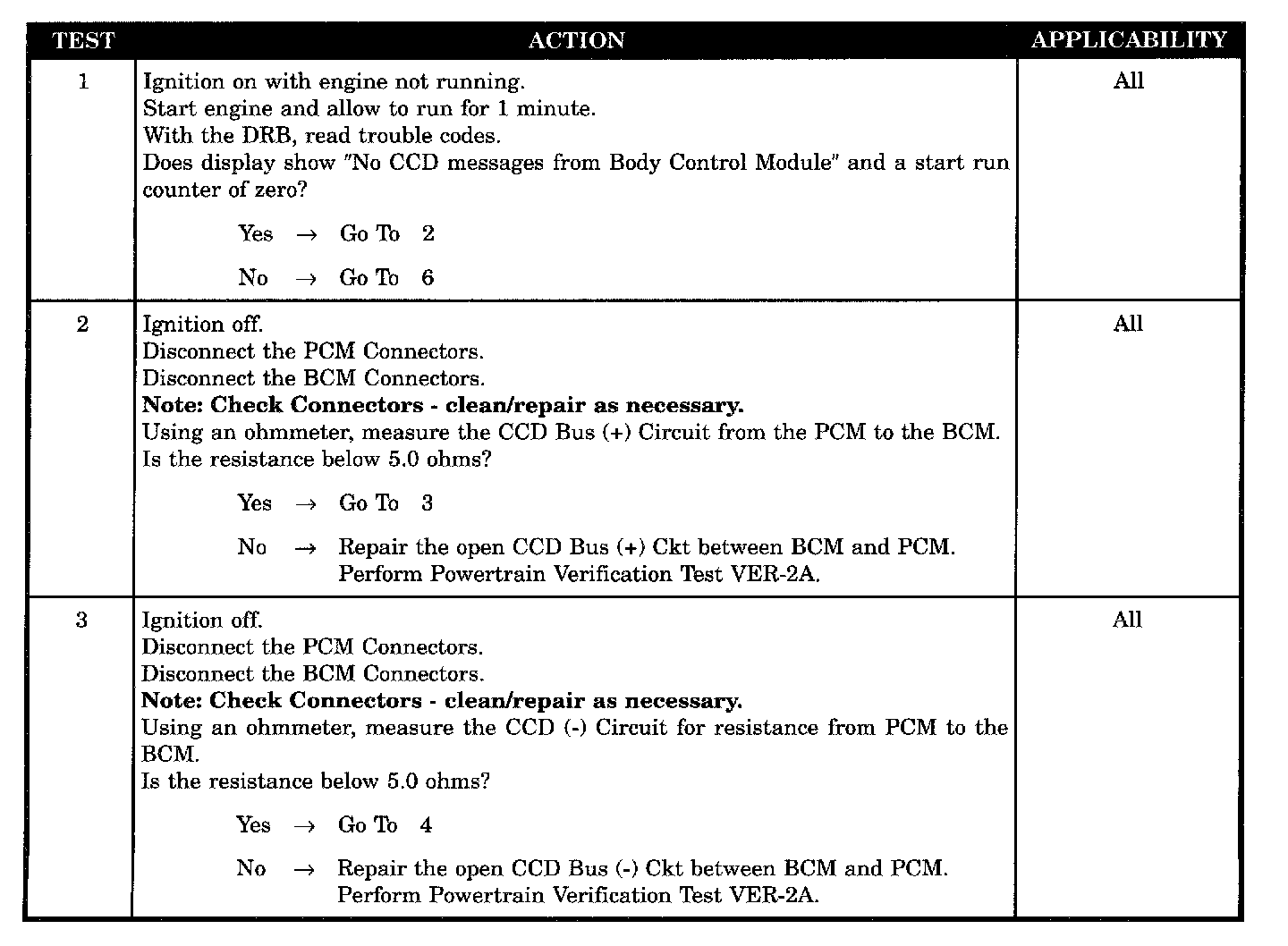

Tests 1 - 3:

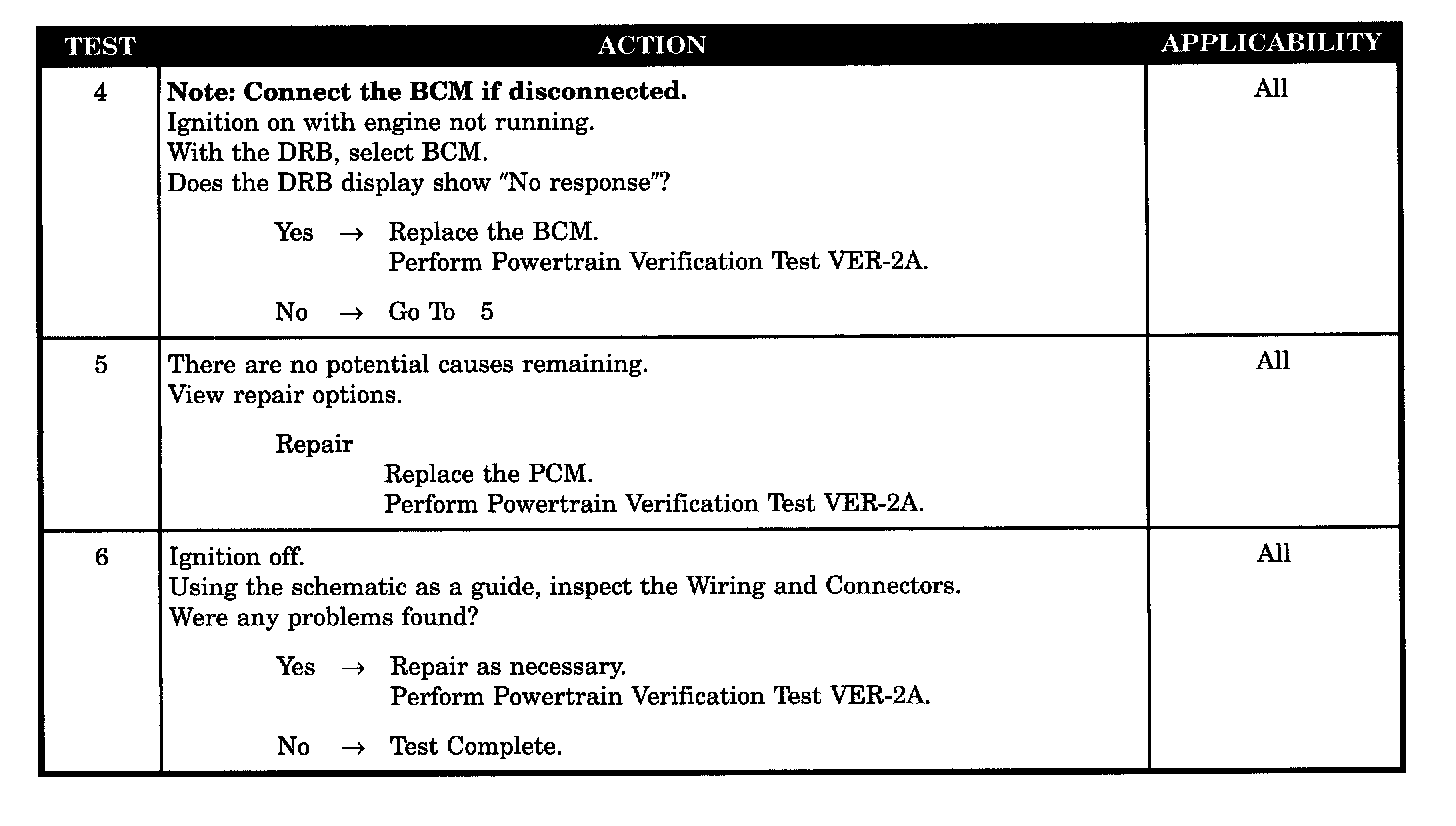

Tests 4 - 6:

SYMPTOM
P1695 - NO CCD MESSAGE FROM BODY CONTROL MODULE

WHEN MONITORED
Any time the engine is running.

SET CONDITION
No CCD messages from the BCM for 30 seconds.

POSSIBLE CAUSES
- CCD Bus (+) circuit open
- CCD Bus (-) circuit open
- Wiring harness observable defect
- BCM "No Response"
- PCM defective (no CCD message)
