P1598

Tests 1 - 2:

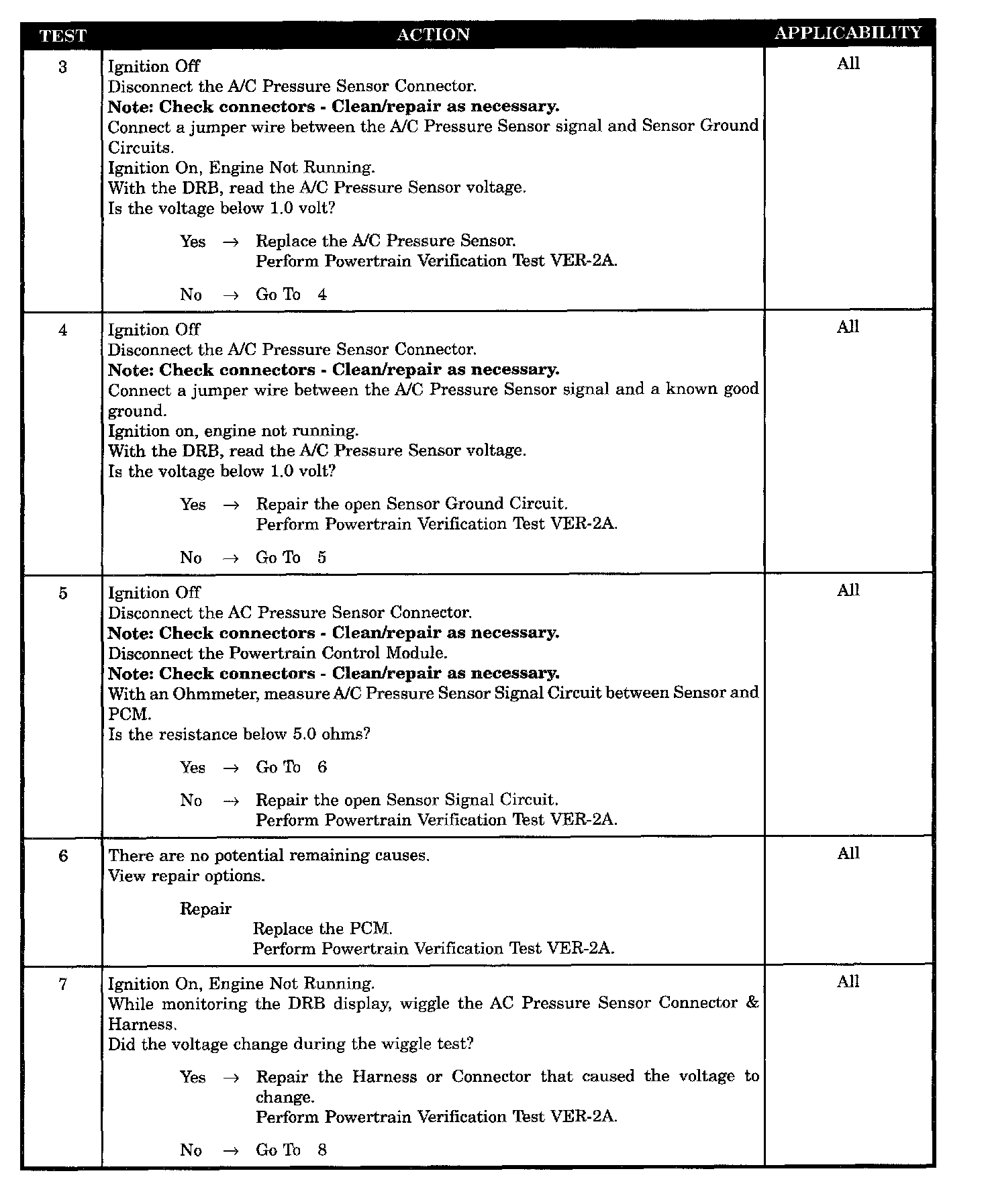

Tests 3 - 7:

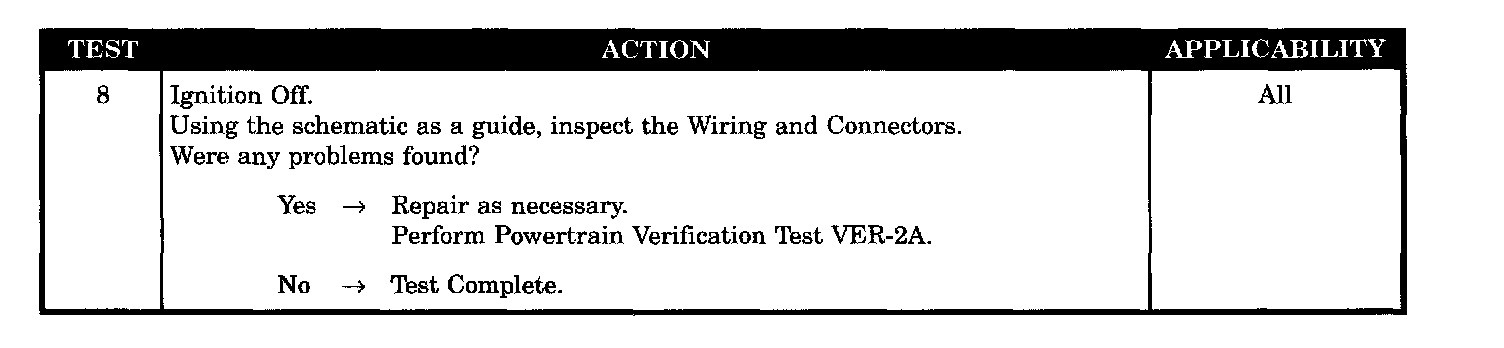

Test 8:

SYMPTOM
P1598 - A/C PRESSURE SENSOR VOLTAGE TOO HIGH

WHEN MONITORED
With the ignition ON, the engine running, and the A/C relay energized.

SET CONDITION
The A/C pressure sensor signal at PCM cavity 42 goes above 4.9 volts.

POSSIBLE CAUSES
- A/C pressure sensor circuit shorted to voltage
- A/C pressure sensor ground circuit open
- A/C pressure sensor signal circuit open
- A/C pressure sensor harness intermittent defect
- A/C pressure sensor harness observable defect
- A/C pressure sensor defective
- PCM defective
