P0765

Test 1 Through 2:

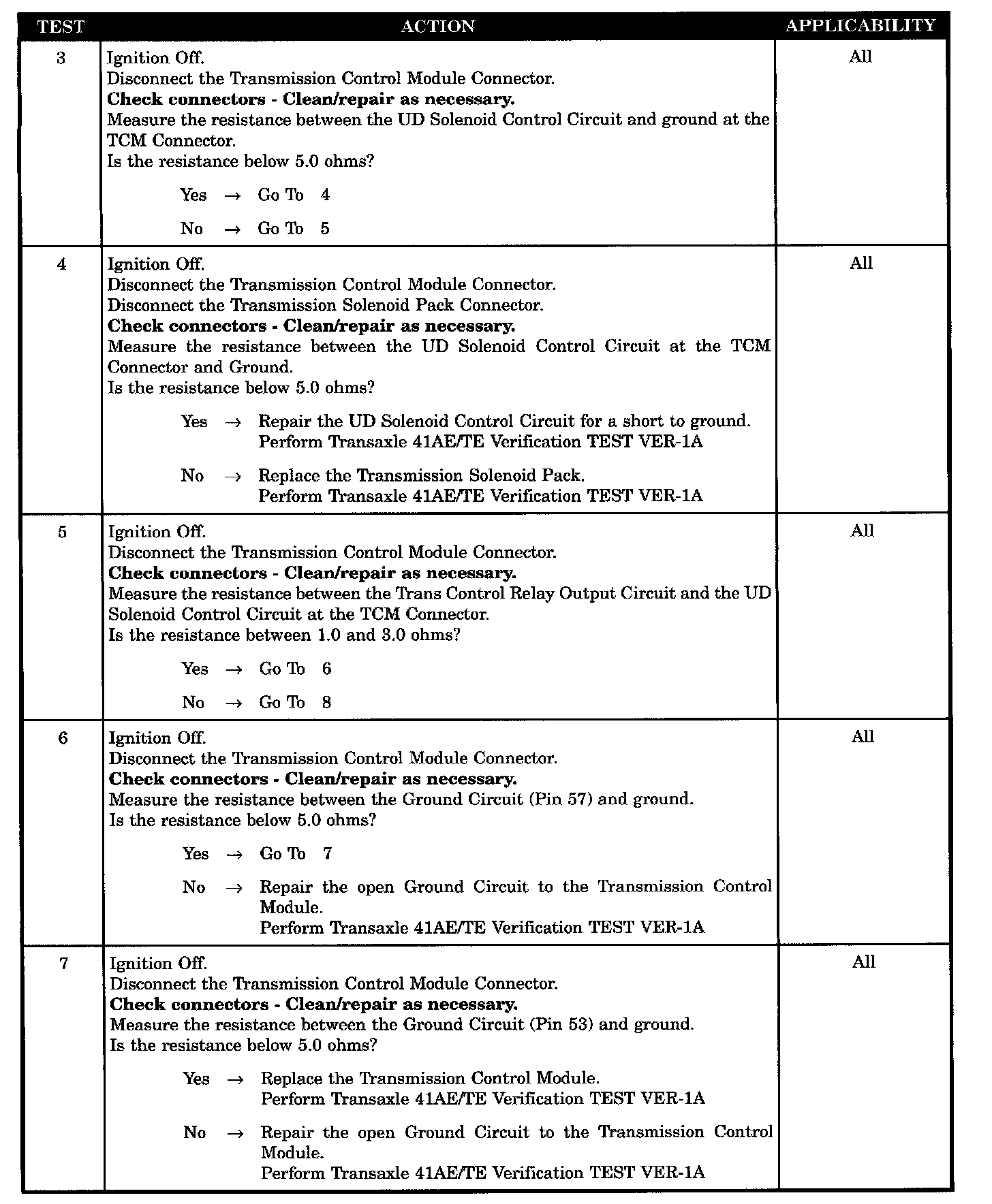

Test 3 Through 7:

Test 8 Through 11:

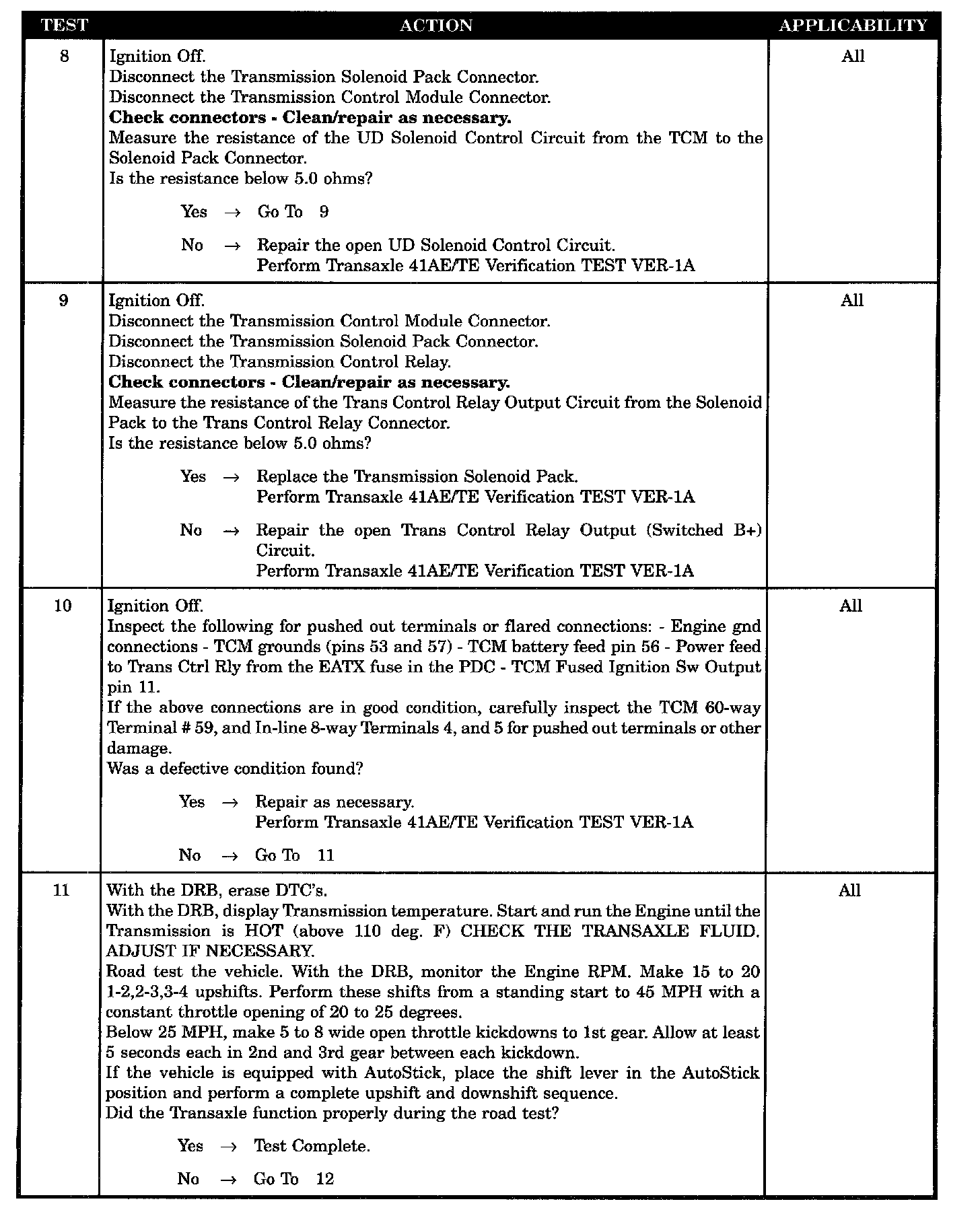

Test 12:

Symptom:
P0765-UD SOLENOID CIRCUIT

When Monitored and Set Condition:
P0765-UD SOLENOID CIRCUIT

When Monitored:
Ignition key is turned from the OFF to RUN position and/or key is turned from the CRANK to the RUN position, then every 10 secs thereafter, or when a speed ratio or pressure switch error occurs. All 4 solenoids are tested for continuity continuously.


Set Condition:
If a solenoid is On, power is momentarily interrupted, then reenergized. If solenoid is Off, power is momentarily energized, then deenergized. If an inductive spike is not sensed by the TCM, it is retested. If the solenoid fails 4 times the code sets.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
PIN 53 GROUND CKT OPEN TO THE TCM
PIN 57 GROUND CIRCUIT OPEN TO THE TRANSMISSION CONTROL MODULE
TRANS CONTROL RELAY OUTPUT (SWITCHED B+) CIRCUIT OPEN
UD SOLENOID CONTROL CKT OPEN
UD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
TRANSMISSION CONTROL MODULE OPEN GND
TRANS SOLENOID PACK OPEN (UD SOLENOID)
UD SOLENOID CONTROL CKT SHORT TO GND
INTERMITTENT CODE P0765
