P0736

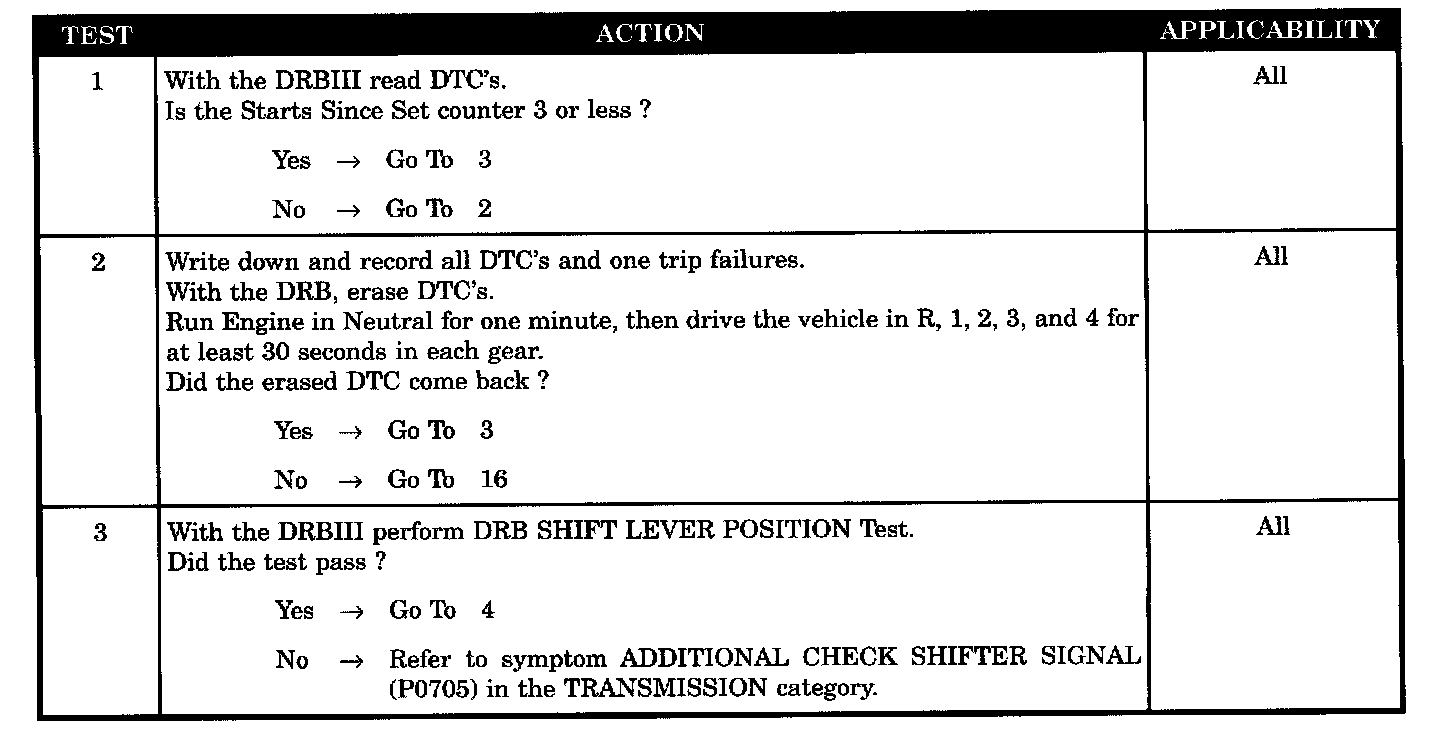

Test 1 Through 3:

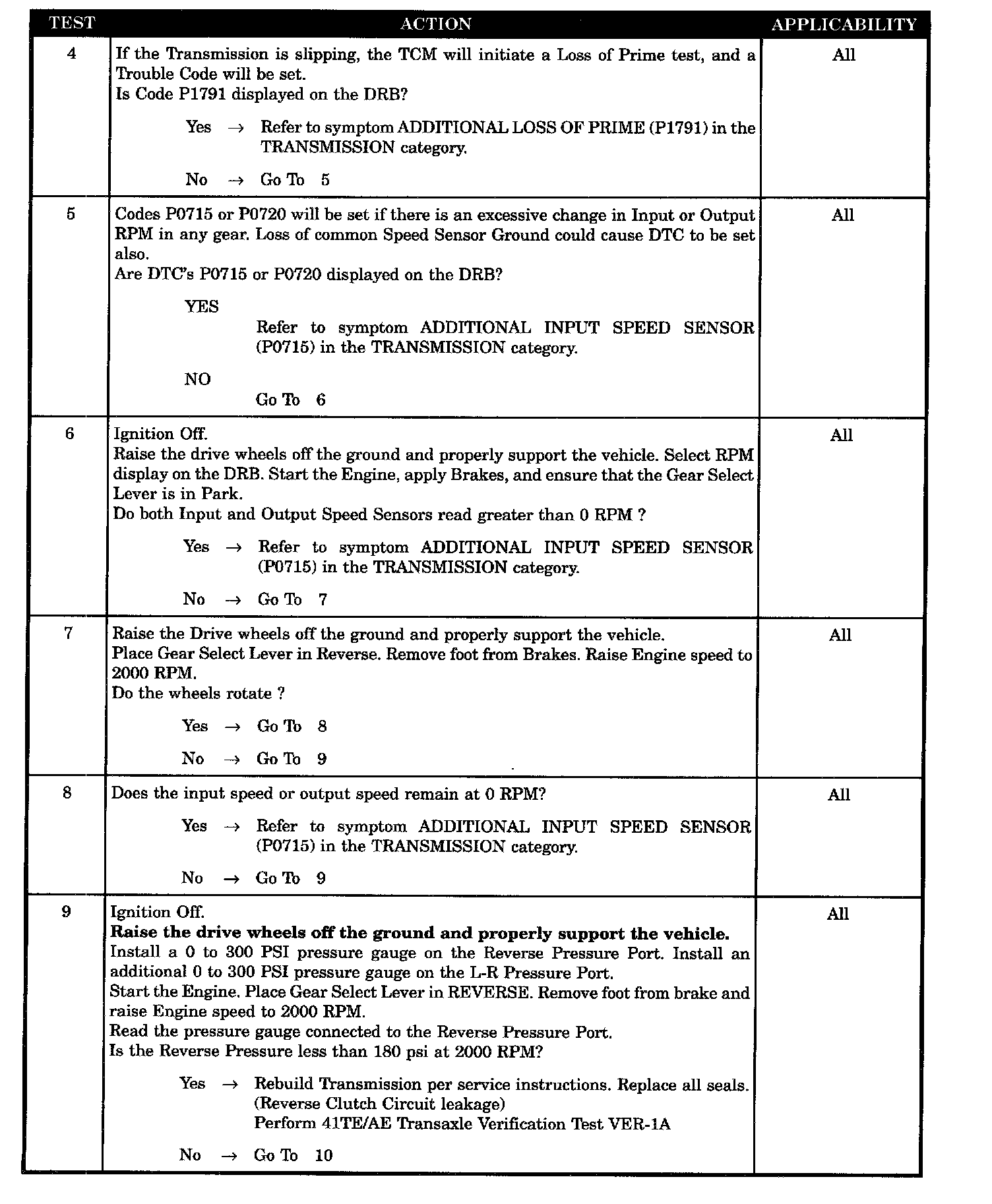

Test 4 Through 9:

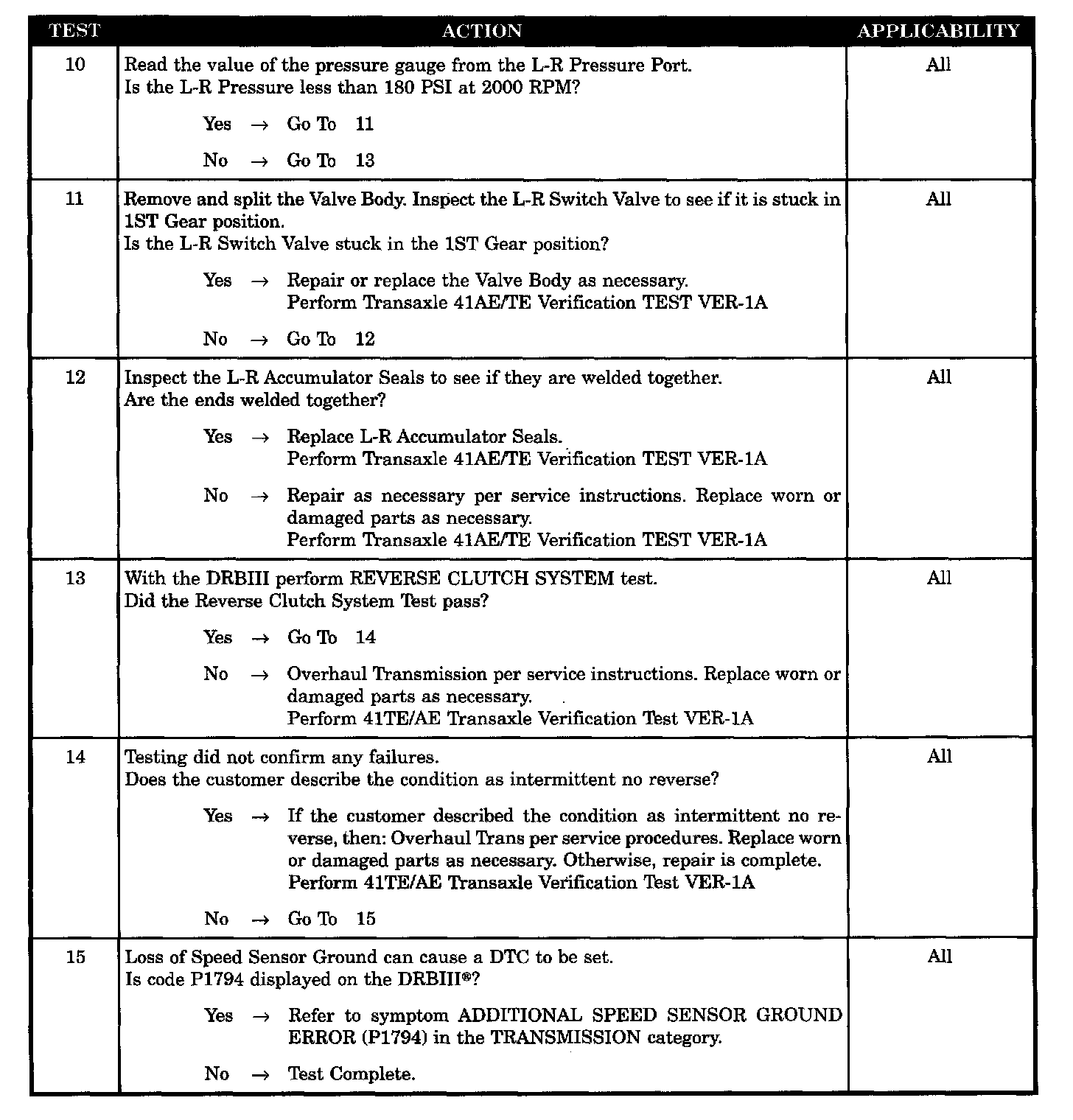

Test 10 Through 15:

Test 16 Through 18:

Symptom:
P0736-GEAR RATIO ERROR IN REVERSE

When Monitored and Set Condition:
P0736-GEAR RATIO ERROR IN REVERSE

When Monitored:
Continuously monitored while the transmission is in gear.

Set Condition:
Code P0736 sets if the ratio of the input RPM to the output RPM does not match the given gear ratio.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
CUSTOMER COMPLAINT INTERMITTENT NO REVERSE
REVERSE CLUTCH TEST FAILS
REVERSE PRESSURE < 180 PSI
TRANSAXLE REPAIR (L-R SEALS)
L-R ACCUM SEALS WELDED TOGETHER
L-R SWITCH VALVE STUCK IN FIRST GEAR POSITION
INTERMITTENT CODE P0736
