P0732

Test 1 Through 3:

Test 4 Through 5:

Symptom:
P0732-GEAR RATIO ERROR IN 2ND

When Monitored and Set Condition:
P0732-GEAR RATIO ERROR IN 2ND

When Monitored:
The transmission gear/speed ratio is monitored continuously while the transmission is in gear.

Set Condition:
Code P0732 is set if the ratio of the input RPM to the output RPM does not match the given gear ratio.

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES

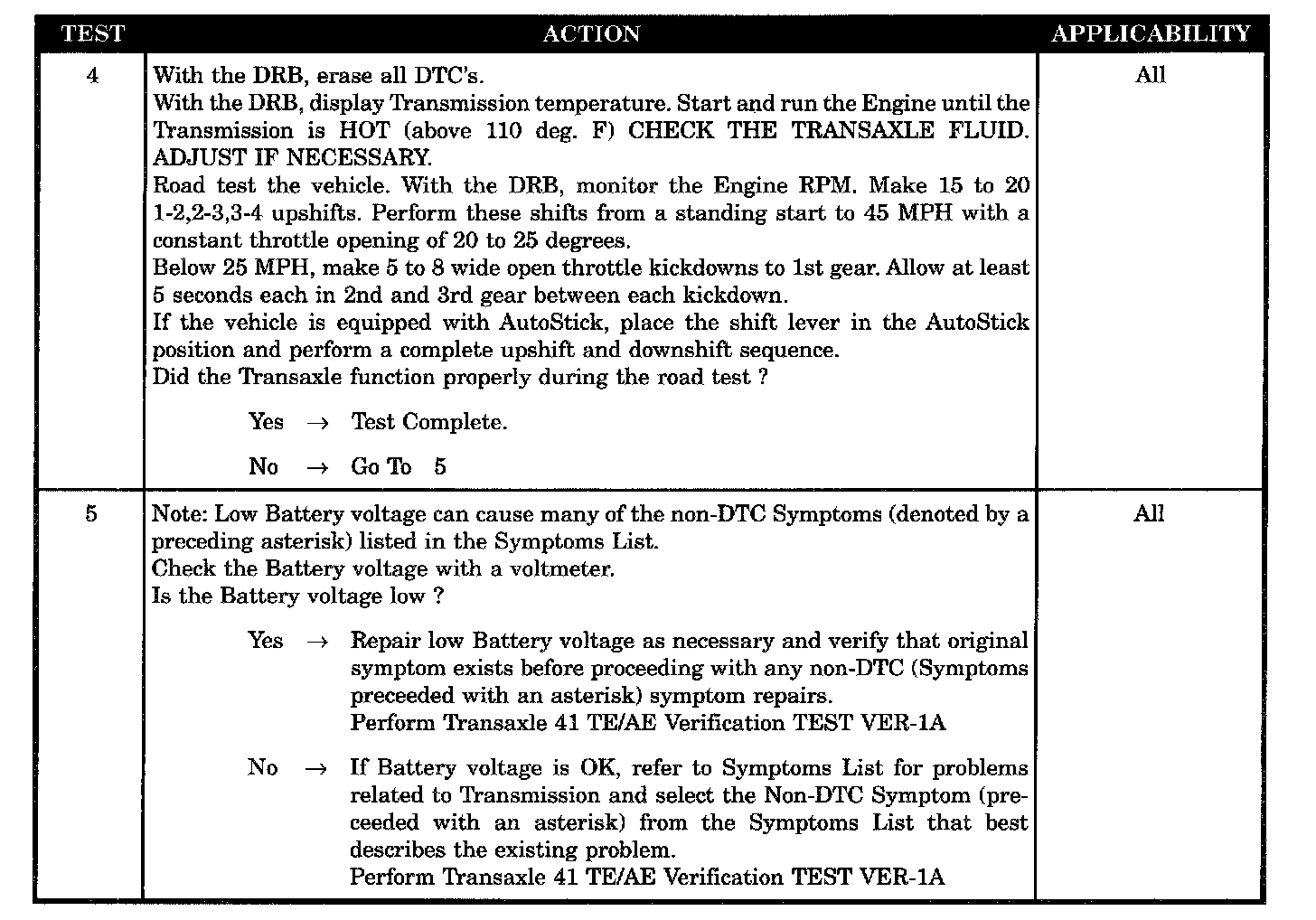

LOW BATTERY VOLTAGE

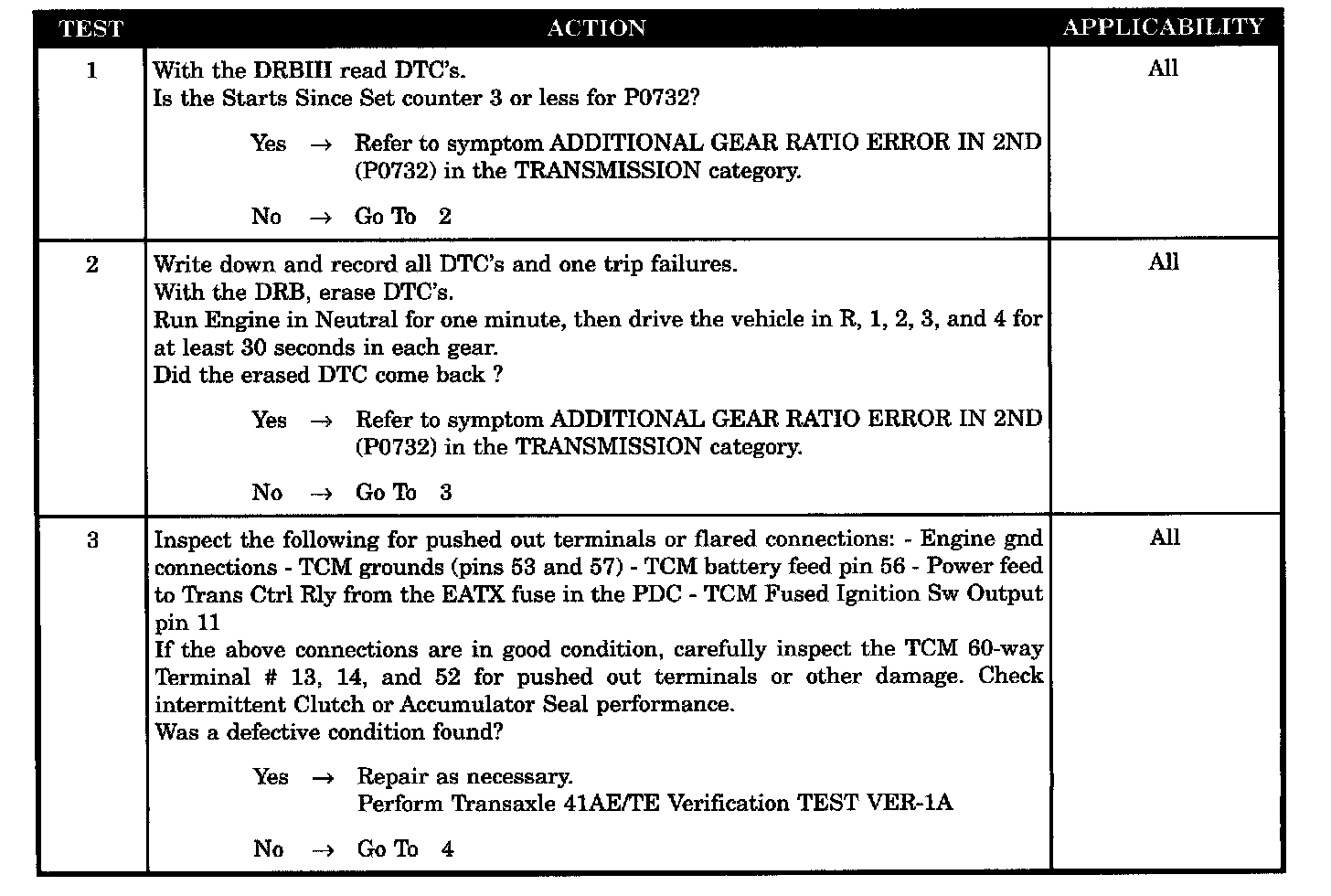

INTERMITTENT CODE P0732

Test 1 Through 2:

Test 3 Through 7:

Test 8 Through 9:

symptom:

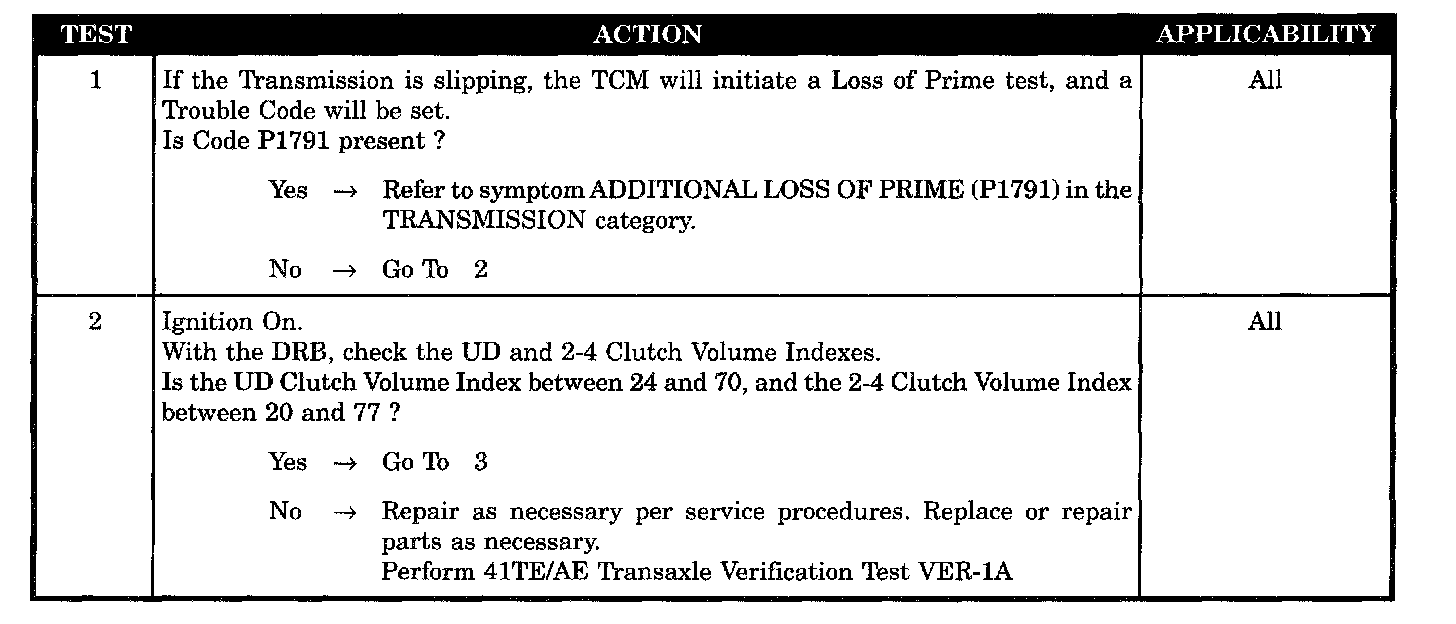

ADDITIONAL GEAR RATIO ERROR IN 2ND (P0732)

POSSIBLE CAUSES
INTERMITTENT 2ND GEAR SLIPPAGE
UD AND 2-4 CVI OUT OF SPEC

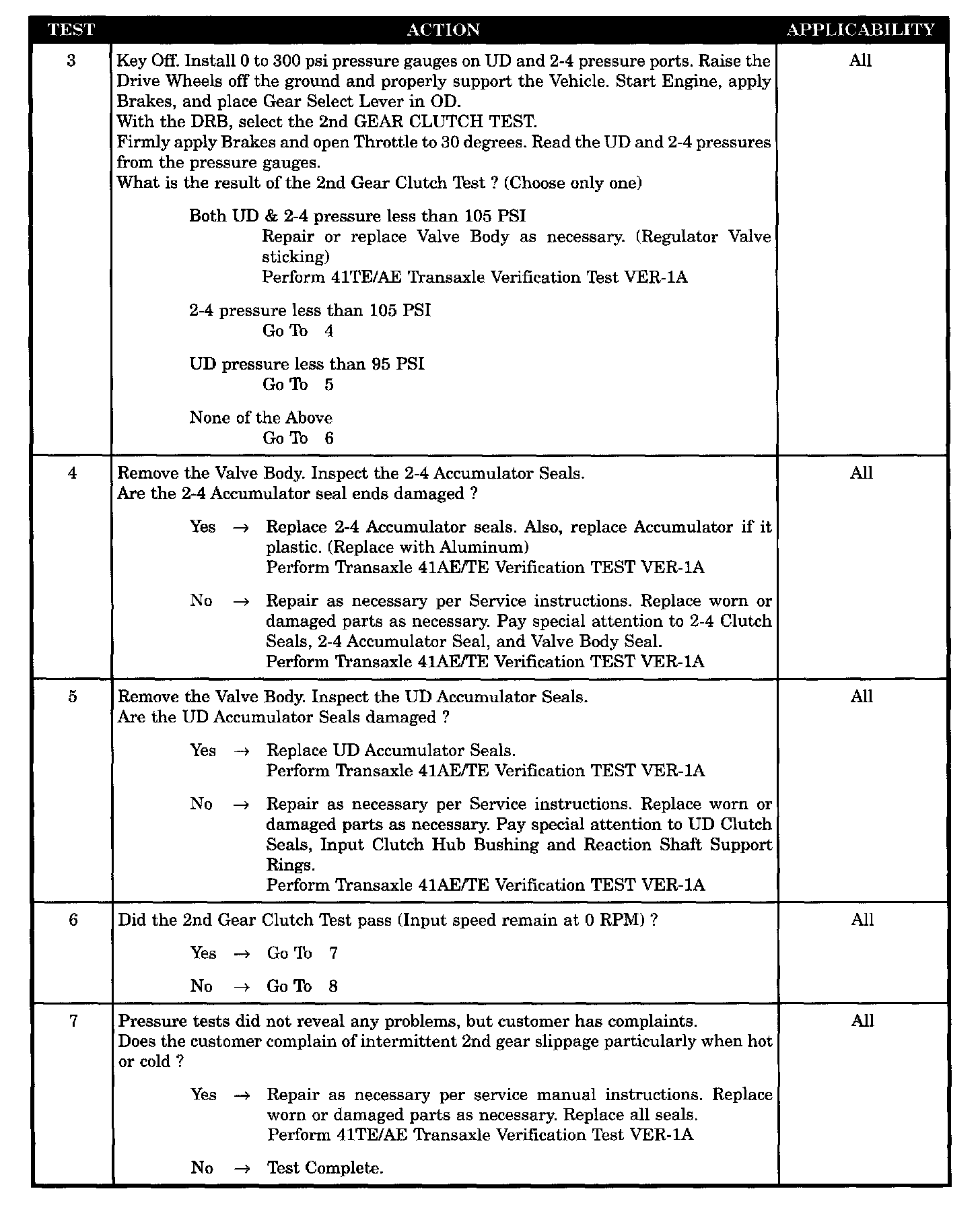

UD AND 2-4 PRESSURE < 105 PSI
UD PRESSURE < 5 PSI IN 4TH GEAR
TRANSAXLE DEFECT (2-4 SEALS)
2-4 ACCUM SEALS DAMAGED
UD ACCUMULATOR SEALS DAMAGED
TRANSAXLE DEFECT(UD SEALS)
TRANSAXLE SEALS ARE DEFECTIVE

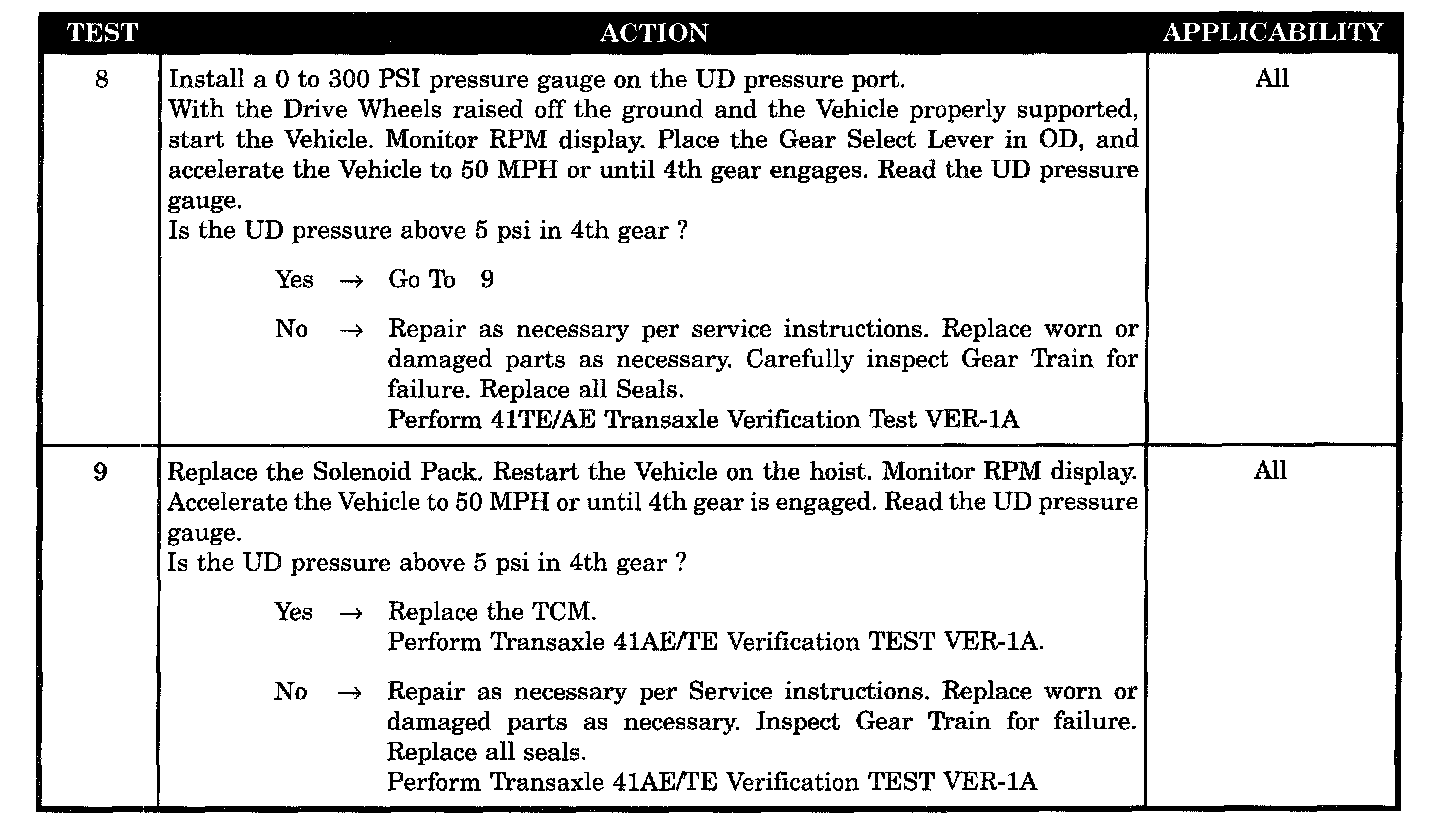

UD PRESSURE > 5 PSI IN 4TH GEAR
TRANS HAS PLASTIC 2-4 ACCUM/SEAL
