P0205

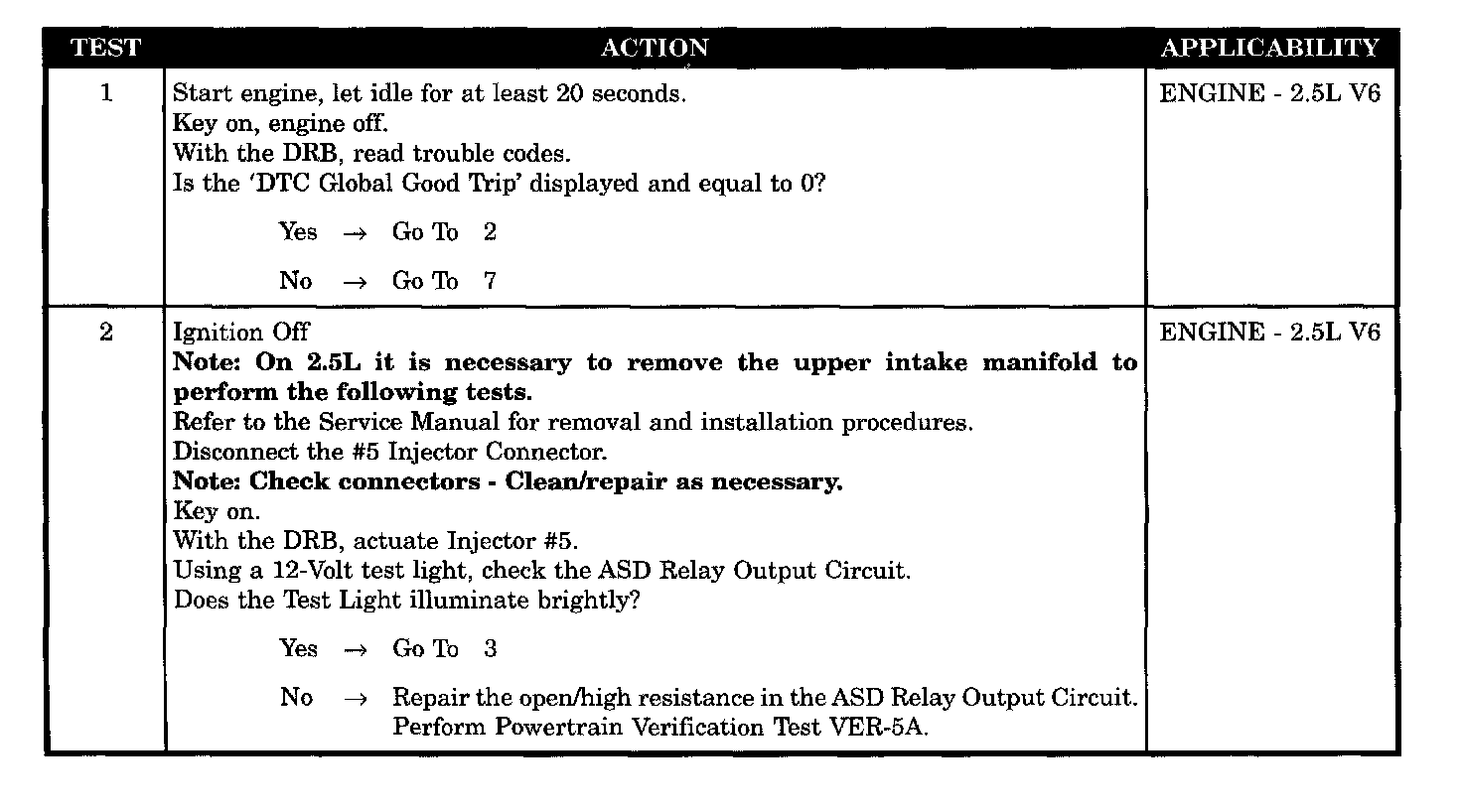

Tests 1 - 2:

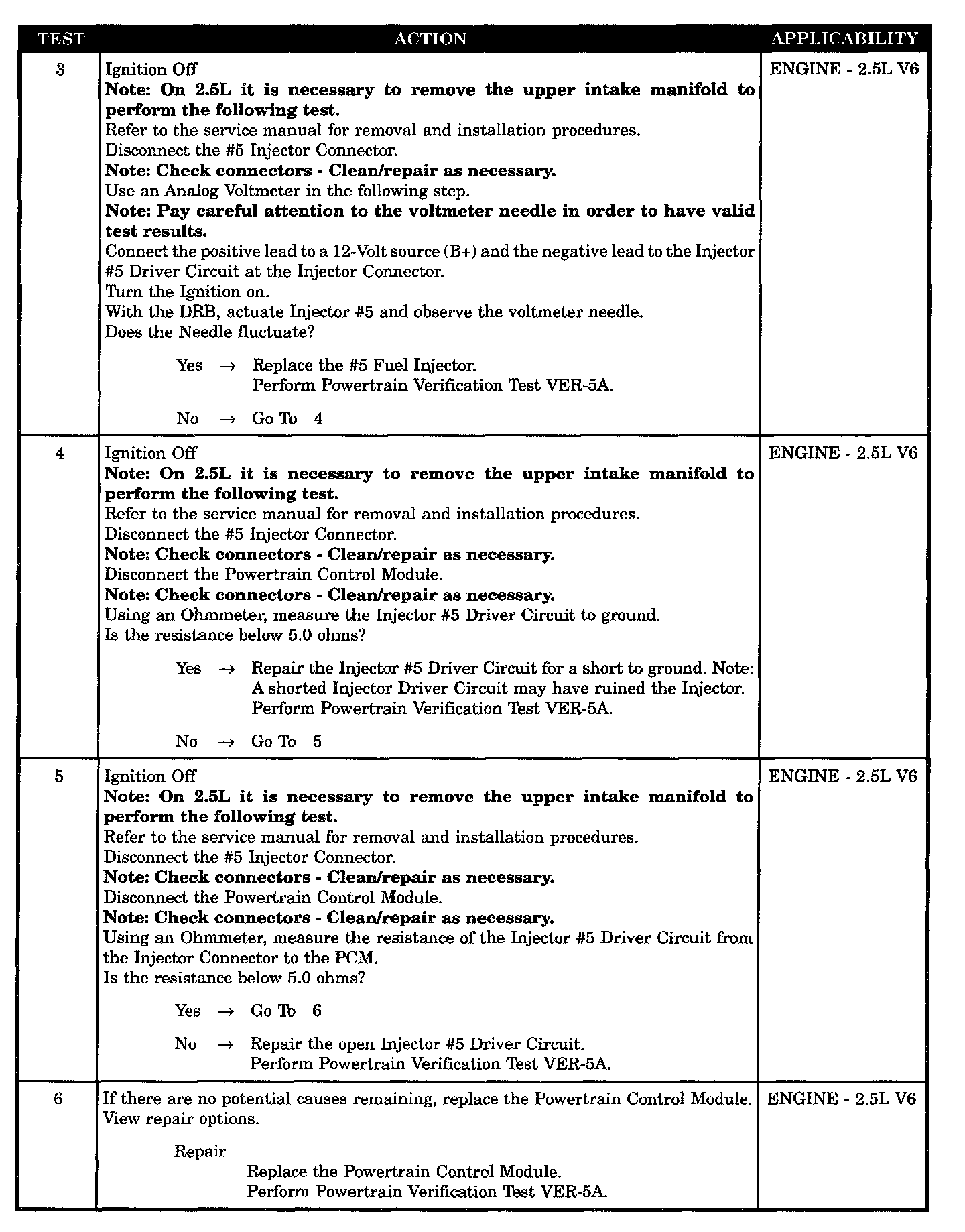

Tests 3 - 6:

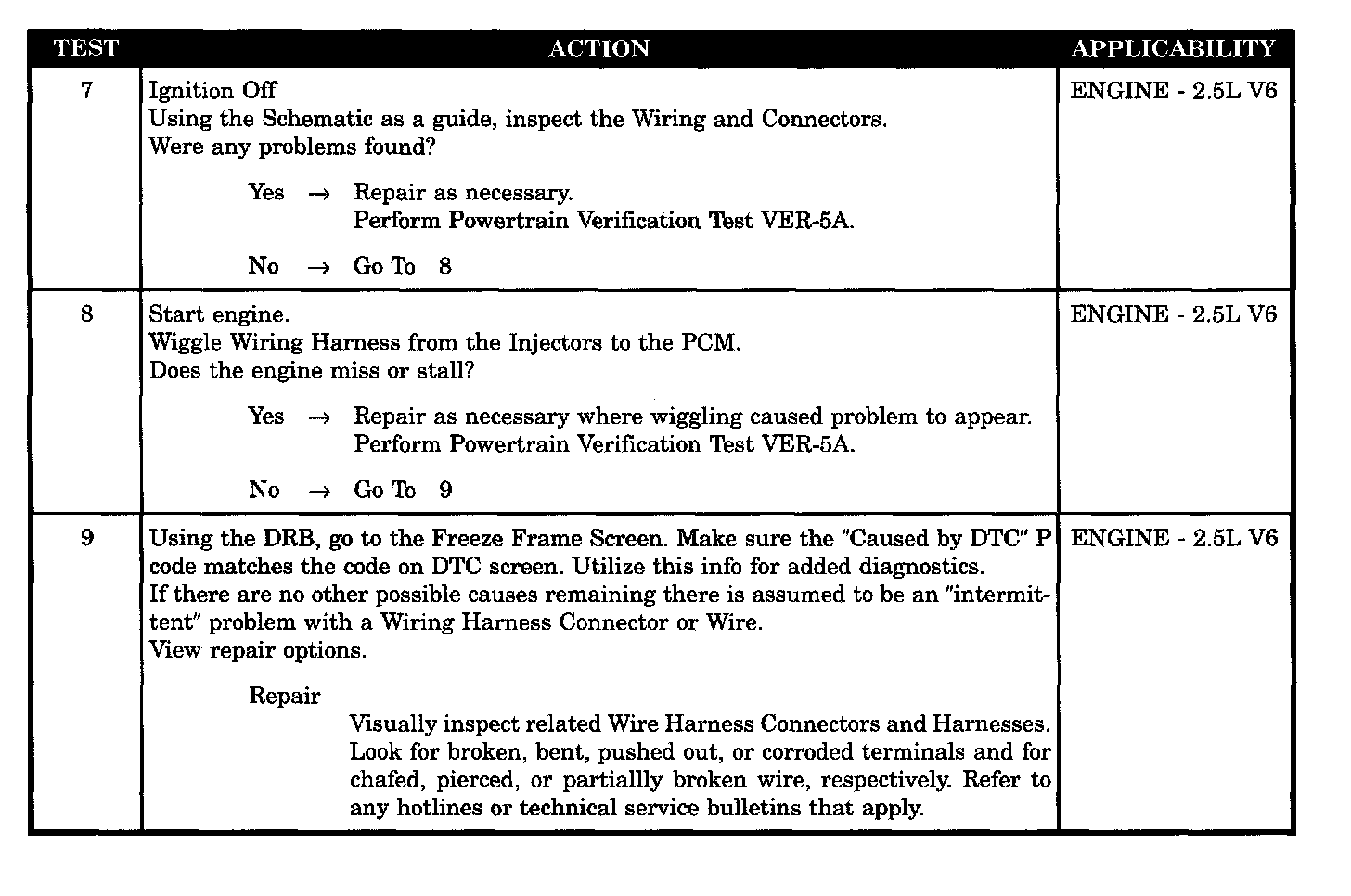

Tests 7 - 9:

SYMPTOM
P0205 - INJECTOR # 5 CONTROL CIRCUIT

WHEN MONITORED
With battery voltage greater than 12 volts, the Auto Shutdown relay energized, injector pulse width less than 10 ms, and engine speed less than 3000 rpm.

SET CONDITION
This trouble code takes 0.64 to 10.0 seconds to set when no inductive kick is sensed 0.18 ms after injector turns OFF, and with no other injectors ON.

POSSIBLE CAUSES
- No possible causes remaining
- ASD relay output circuit open
- Injector # 5 defective
- Injector # 5 driver circuit open
- Injector # 5 driver circuit shorted to ground
- Injector control circuit wiring harness observable defect
- Injector control circuit wiring harness intermittent defect
- Powertrain Control Module defective
