P0125

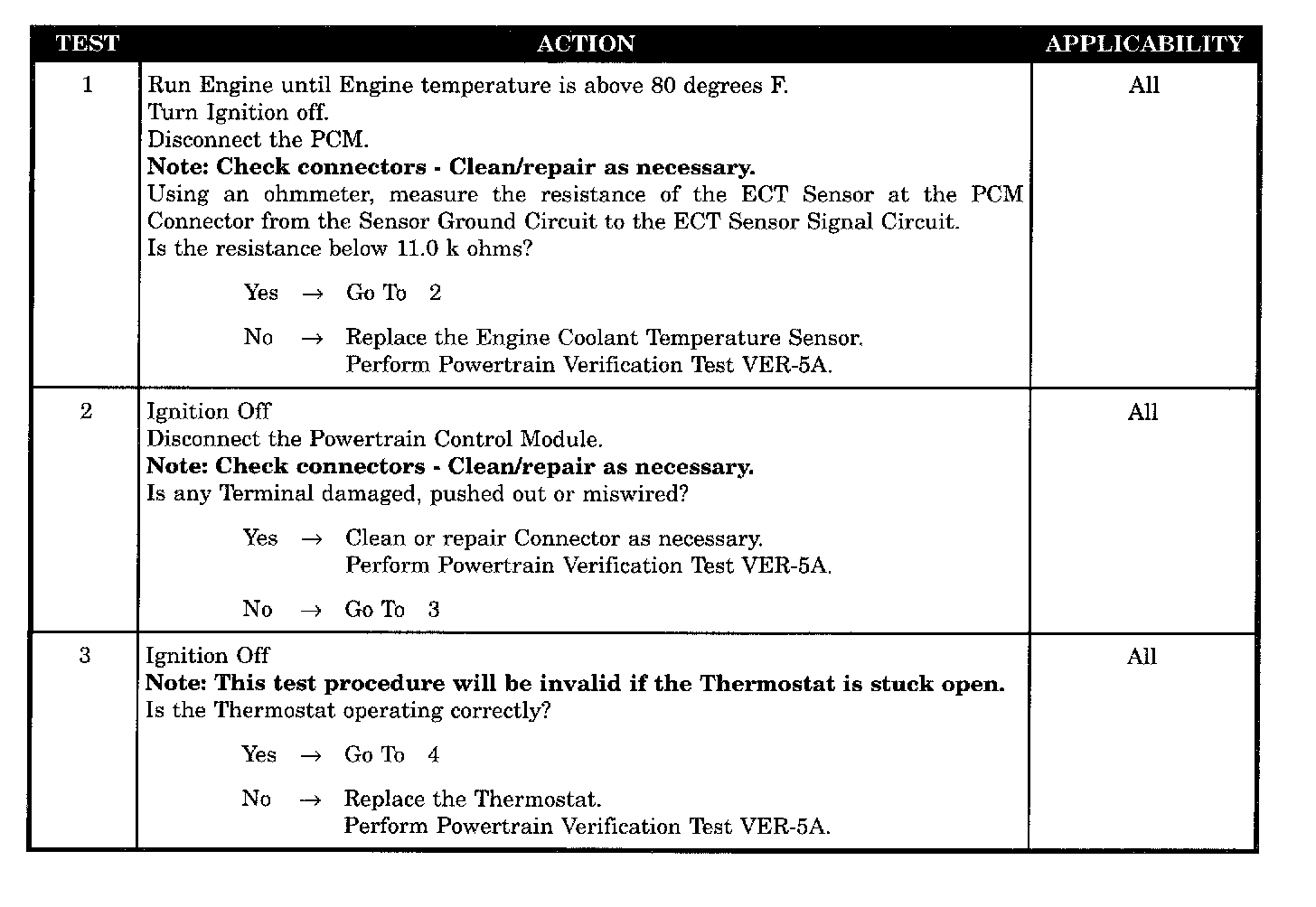

Tests 1 - 3:

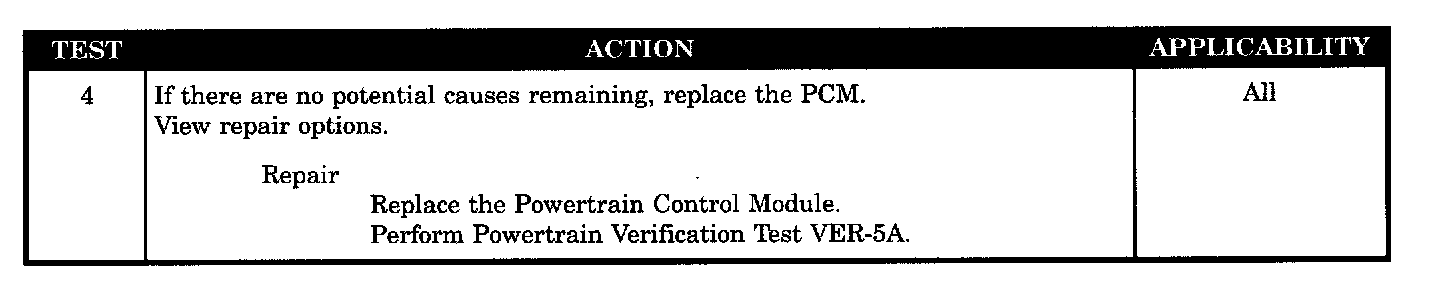

Test 4:

SYMPTOM
P0125 - CLOSED LOOP TEMPERATURE NOT REACHED

WHEN MONITORED
After engine is started for 10 minutes.

SET CONDITION
The engine coolant temperature does not go above 60 °F within 10 minutes after the engine is started.

POSSIBLE CAUSES
- ECT sensor resistance ≥ 11.00 K ohms
- PCM connector
- PCM defective (coolant system)
- Thermostat defective
