Wipers Run Constantly With Ignition On

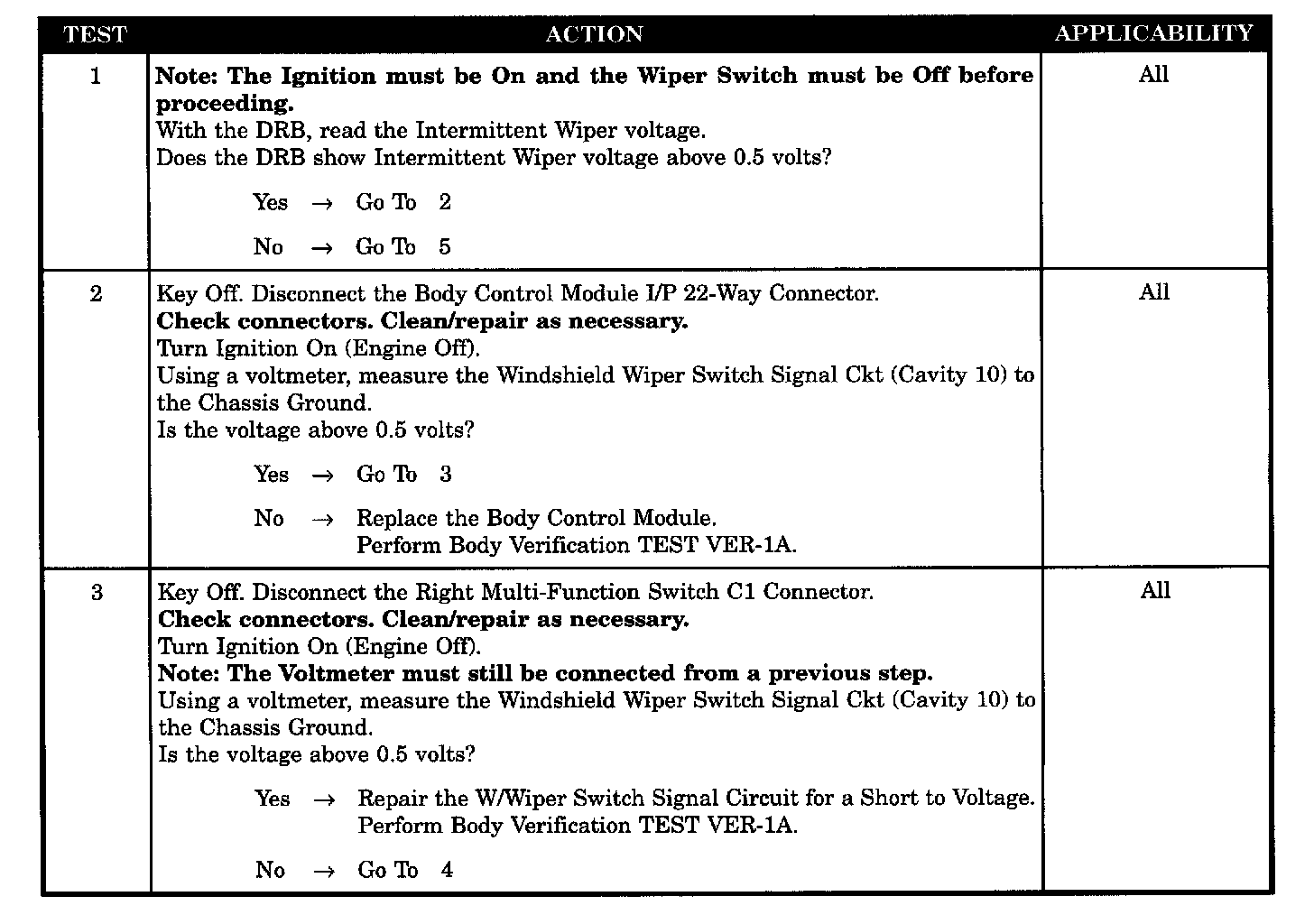

Test 1 - 3:

Test 4 - 8:

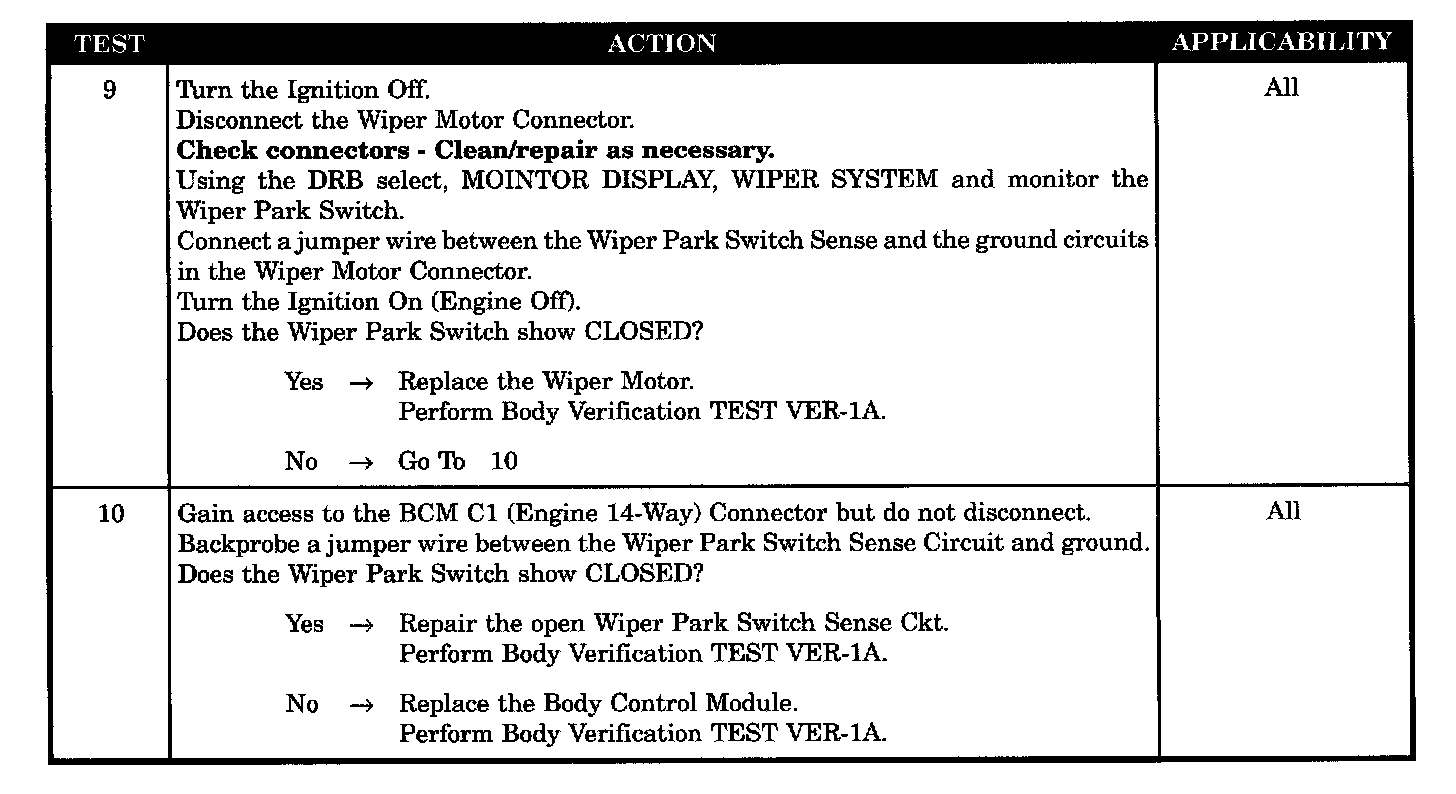

Test 9 - 10:

SYMPTOM
WIPERS RUN CONSTANTLY W/IGNITION ON

POSSIBLE CAUSES
- Interm wiper relay control CKT SH/GND
- Interm wiper RLY
- W/Wiper SW signal CKT-short/volts
- Wiper park switch sense circuit - short to ground
- Wiper park switch sense circuit open
- Multi-function SW/SW CONN
- Defective wiper motor/wipers run constantly
- BCM/Wipers SW SIG CKT
- Defective BCM- wipers run constantly
- Defective wiper motor-runs constantly
